300W POWER INVERTER--Modified Wave Power Inverter 300Watts

300W POWER INVERTER--12V pure sine wave

inverter

Description
Place of Origin: Jiangsu, China
Brand Name: PASS POWER
Model Number: P-300w
Output Type: Single
Size: 155*95*55mm
Weight: 450G/PC
Input Voltage: 12VDC
Output Voltage: 110VAC±10%/220VAC±5%
Type: DC/AC Inverters
Output Frequency: 50Hz/60Hz
Output Current: 3A-8A
Item Name: 12Volt Modified Wave Power Inverter 300Watts
Start: Soft-start
Efficiency: 85%
THD: <5%
Grid type: Off-grid type
Output waveform: modified sine wave
Certificate: CE/RoHS/SGS/IP30

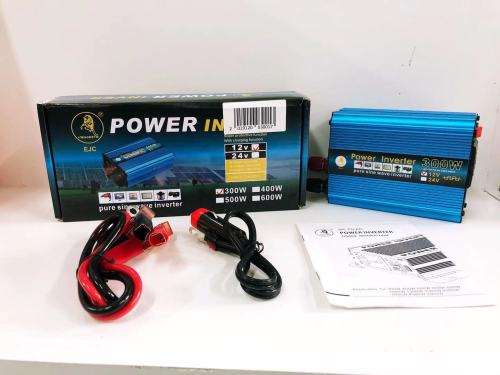

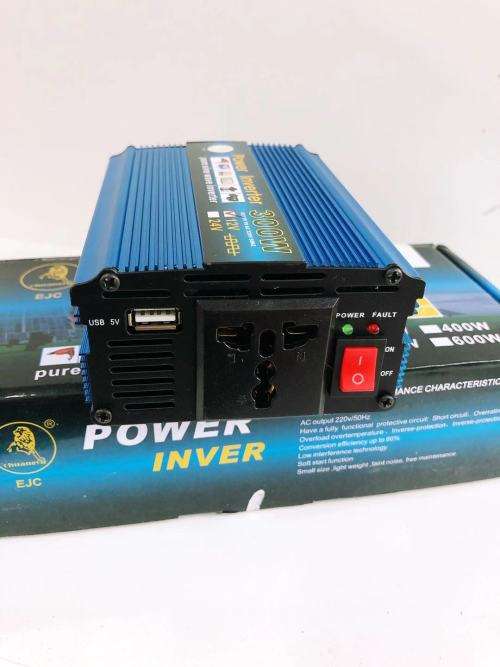

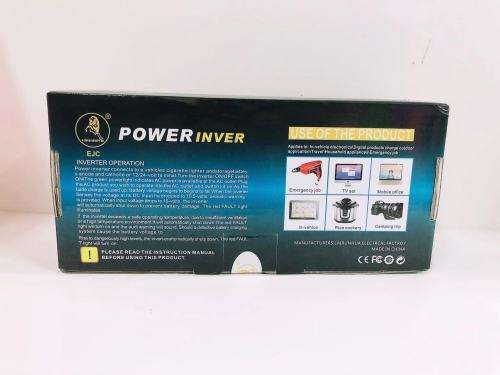

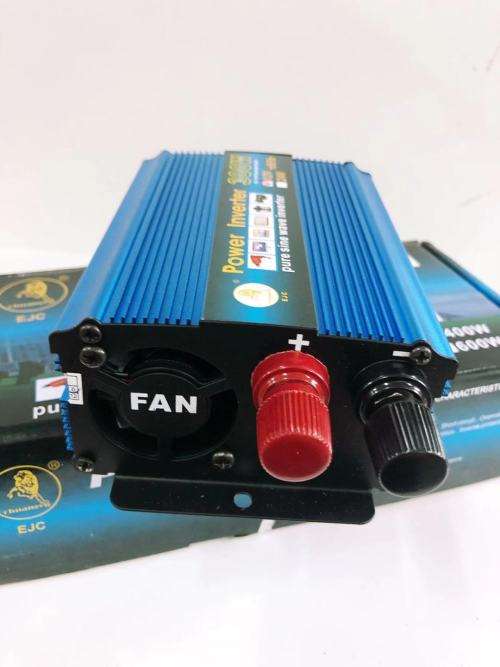

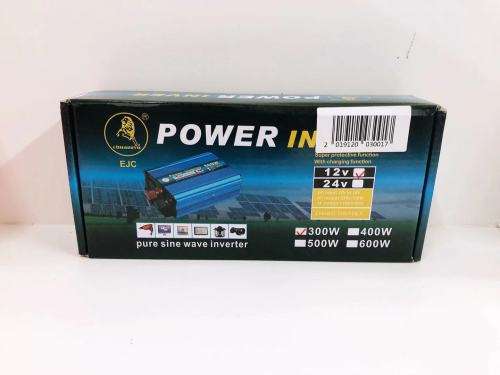

Photo Description
TYPE:P-300W
INFO: This is a 300W modified sine wave inverter. It is ideally suitable for Journeys, Camping, Tents, Boat Trip, Working on the way and everywhere, where there is no electricity! Simply connect the Power Inverter with a Battery and then connect to electrical appliances.
1. 300W Modified wave power inverter, as good as grid power, power backup for home power supply.
2. Transfer 12VDC to 110VAC/230VAC, 50HZ/60Hz frequency. Intelligent temperature control cooling fan. Earth connection for both PCB board and output.
3. High-quality true copper inductance, filter the wave form, ensure the wave AC output, safeguard your equipment. All big imported MOSFETs with strong driving capacity.
4. The PCB thickness is 2.00mm, allow the stronger current floating on the circuit, increase the load capacity.
5. High-frequency transformer to transfer DC to AC, ensure the stable and full AC output
