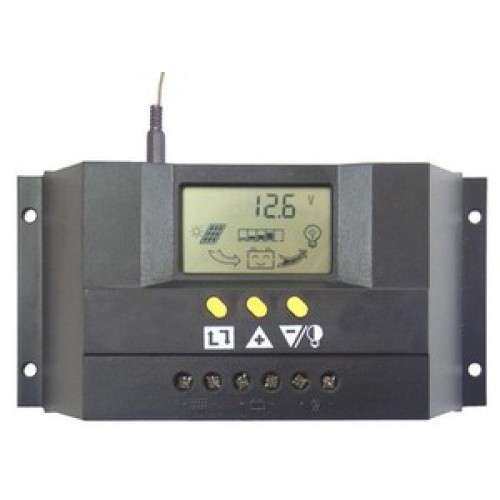

30A 12/24V Solar Charge Controller with Digital Display

Pacakge Included:

1. 1pcs 30A solar Controller
2. 1pcs user manual(ENGLISH)
3. 1pcs temp senor

Ideal for
For 12V PV system: 24V for Max input,360W Solar Panel.
For 24V PV system :48V for Max input,720W Solar Panel
This controller has Light and Timer control Function
Light control:When daylight starts to occur then the light source goes off. Meanwhile the Solar Panels will charge the batteries. when there is no sunlight the garden light will switch on.
Time control:There is an eight hours time control,that means it will go off when the Lights automatically switch off after 0-15 hours.

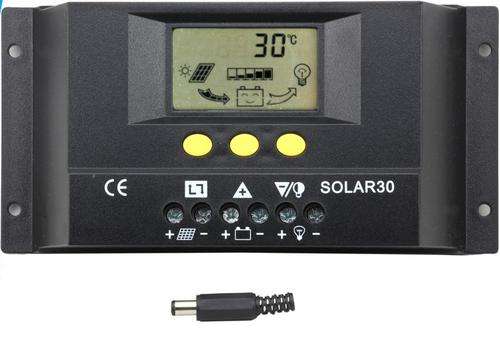

This Solar30 Solar controller is a kind of intelligent and multifunctional solar charge controller. These serial products adopt customized LCD display screen, which makes the operation on the interface rather convenient. All the controlling parameters can be reset flexibly to satisfy your different needs.

Function:

 Installation Data:

Data Sheet
Model:Solar30
Rated Current: 30A
Rated Voltage: 12V/24V
Maximum Voltage of solar panel: <48V
Float Voltage: 13.8V/27.6V
Low Voltage Disconnection: 10.7V/21.4V
Low Voltage Reconnection: 12.5V/25V
No load loss: <30mA
loop voltage drop:<200mV
Charging Mode: PMW Mode
Temperature Compensation: -4mV/Cell/degree
