30A 12V/24V PWM Solar Panel Regulator Charge Controller
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details
Description :
30A 12V/24V PWM Solar Panel Regulator Charge Controller
Features :
Overcharging protection.
Can be used for all panels.
Overdischarging protection.
Short and Open Circuit protection.
Advanced design with simple plug and play technology. No need for complicated adjustments.
Specification :
Color : Black
Size : 14.2 x 9.6 x 3.4cm
Rated charge current : 30A
Rated load current : 30A
Work voltage : 12/24V
Over load, short circuit protection : 1.25 rated load current 60sec, 1.5 rated loads current 5sec, over load protection action. ≥3 Rated load current short circuit protection action.
No load current : ≤6mA
Charging circuit voltage drop : ≤0.26 V
Load circuit voltage drop : ≤0.15 V
Over voltage protection : 17V; ×2/24V
Work temperature Industry stage :-35¿¿¿ to +55¿¿¿
Boost charge voltage : 14.6V, ×2/24V (keep 10min)
Direct charge voltage : 14.4V, ×2/24V (keep 10min)
Float charge voltage : 13.6V, ×2/24V
charge return voltage : 13.2v,×2/24V
Temperature compensation : -5mv/¿¿¿/cell (Boost charge, Direct charge, Float charge, charge return voltage)
Lower voltage indicate : 12.0V, ×2/24V
Over discharge voltage : 11.1V(no load)- real-time modified voltage by the discharge rate, ×2/24V
Over discharge return voltage : 12.6V, ×2/24V
Control mode : PWM charge mode, modified discharge voltage by the discharge rate
How To Use :
1. Digital LED display shows the 16 lighting options (by switch with 5 seconds)
2. Number display, from 0 to 7, DC output.
3. Number display, from 0. to 7. 1Hz output.
4. Digital LED stop flash to confirm correct switch selection.
5. 10 minutes delay to make sure its real dark.
Package includes :
1 x 30A Solar Street Regulator

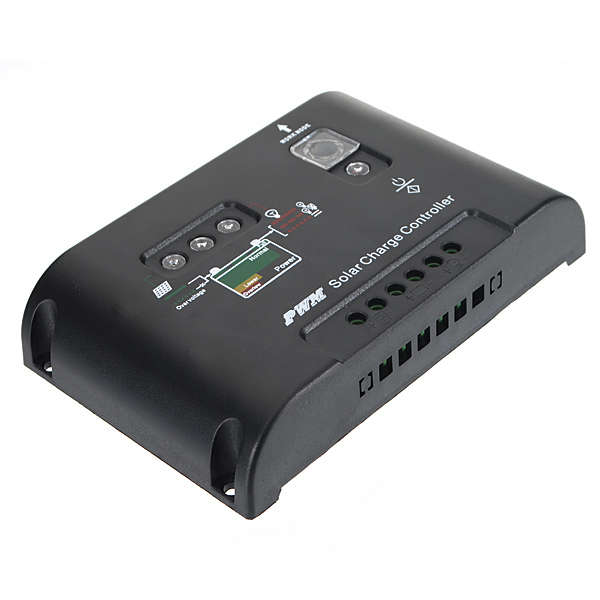

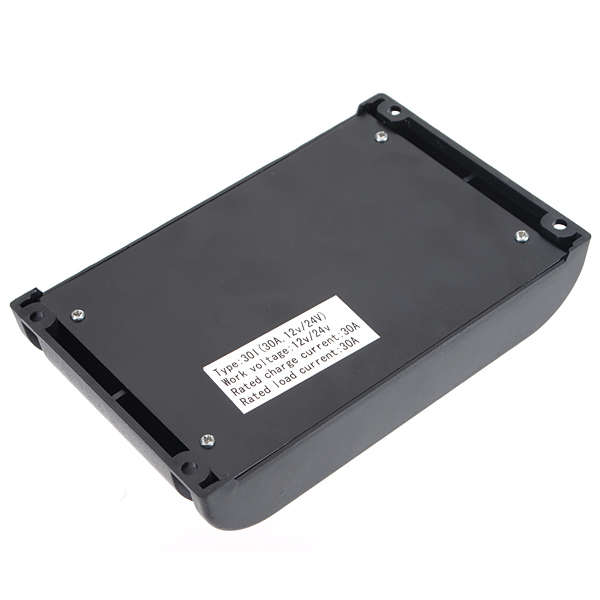

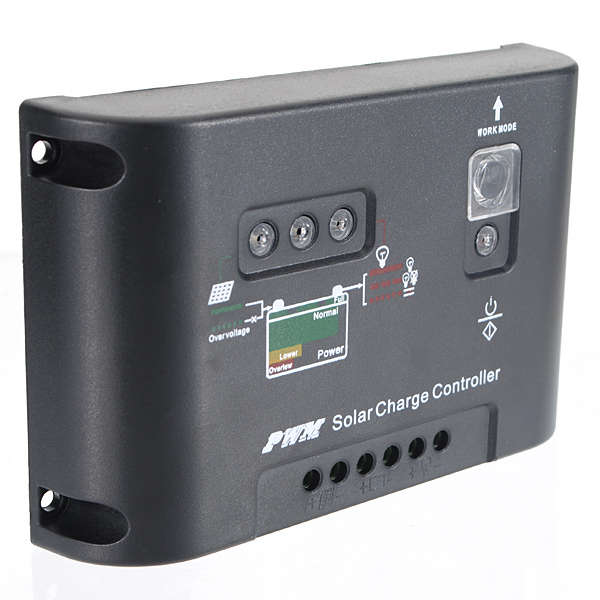

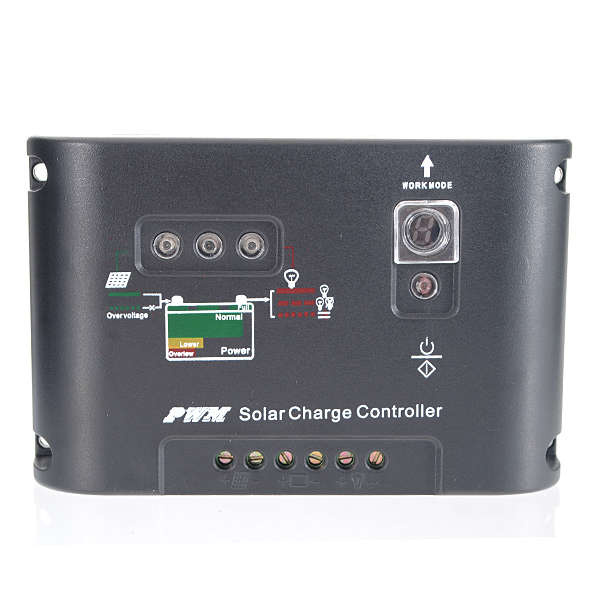

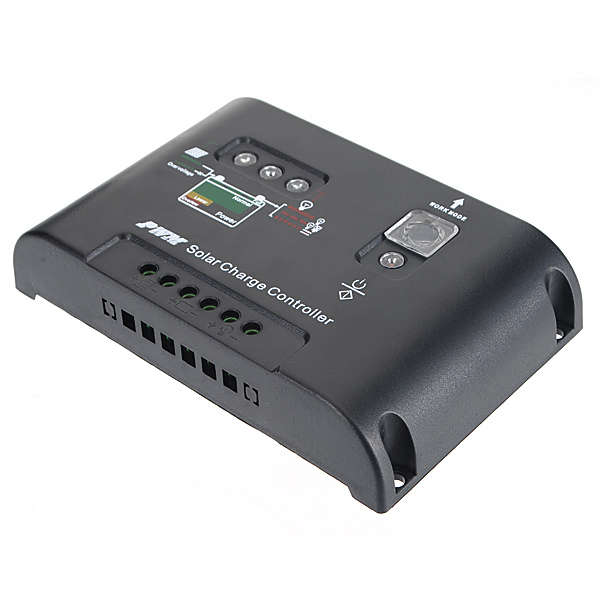

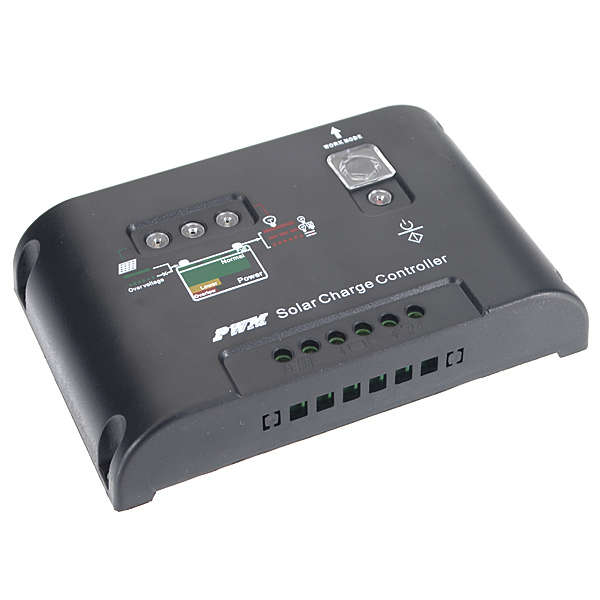

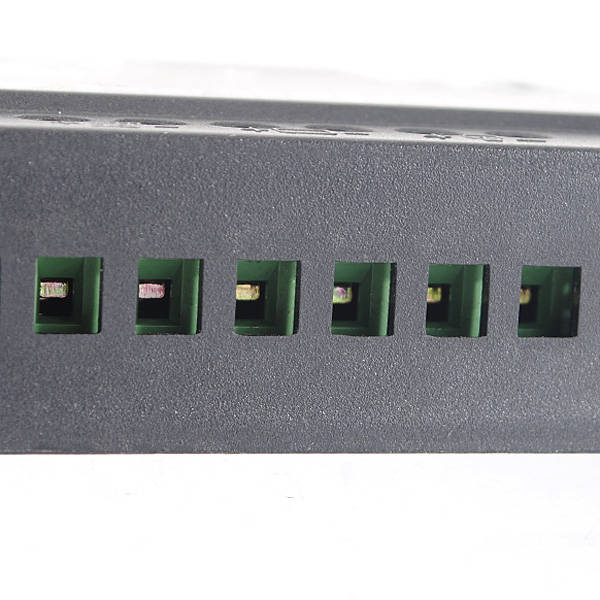

Details pictures :
