Features:Solar30 series controller is an intelligent, multi-purpose solar charge controller. This series of products using custom LCD display, with a very friendly interface; various control parameters can be flexibly set, fully meet your application needs.
1. Visual LCD graphic symbol.
2. Brief key operation.
3. Grade auto switch of system voltage.
4. Intelligent PWM Charging Mode.
5. Auto temperature compensation.
6. Adjustable charging & discharging parameter.
7. Settable working modes of loads.
8. Accumulative function charging & discharging AH.
9. Remote Monitoring Function. (Optional, need specifically customized)
10. Protection for battery back discharging.
11. Protection for battery low voltage.
12. Overloading & short-circuit protection.
13. Battery reversed protection.
14. Delayed auto restart after overloading protection.
Product Parameter:Output Voltage: 12V / 24V Automatically distinguish voltage
Voltage of Solar Panels: ≤ 48V
Float Charging Voltage(settable): 13.8V / 27.6V
Low Voltage Protection(settable): 10.7V / 21.4V
Low Voltage Recovery(settable): 12.5V / 25.0V
Temp Compensation: -4mv / ¿¿¿ / cell
Zero Load Loses: ≤ 30mA
Voltage Drop: < 170mv
Installable Maximum cable: 7# AWG (16mm2)
Working Temperature: -10¿¿¿ ~ 60¿¿¿
Storage Temperature: -30¿¿¿ ~ 70¿¿¿
Temperature Requirement: ≤ 90
%,no condensation
Dimension: 90 mm ×188 mm X 48 mm
Distance of Installation Holes: 60 mm X 178 mm --Φ5

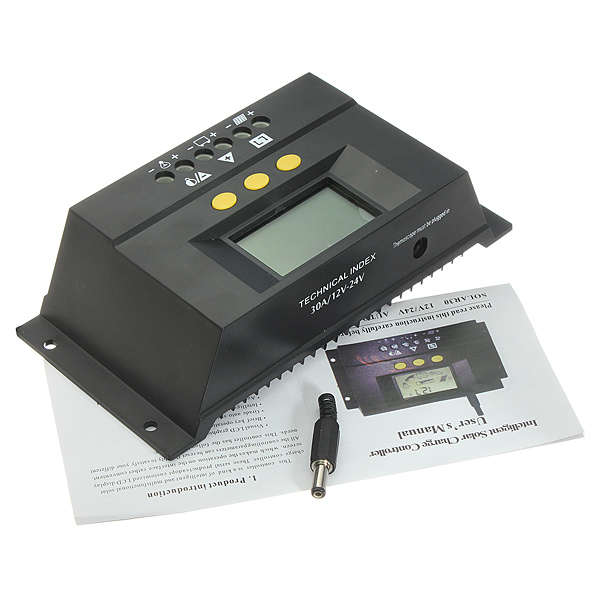

Package include:1 X 30A Solar Charge Controller
1 X User's Manual
1 X Temp. Sensor
![]()
![]()
![]()
![]()
![]()
![]()
