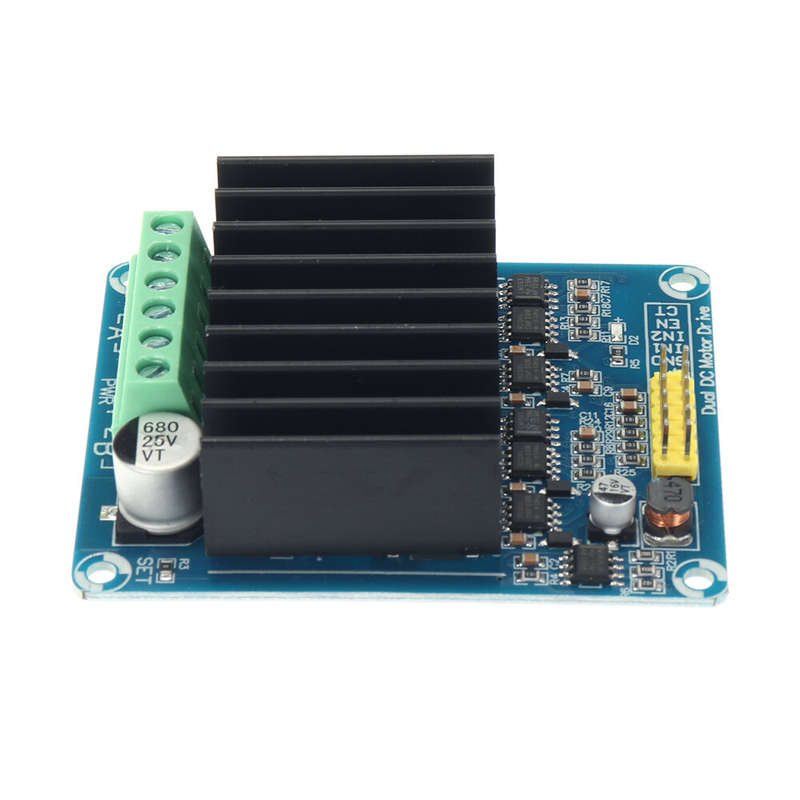

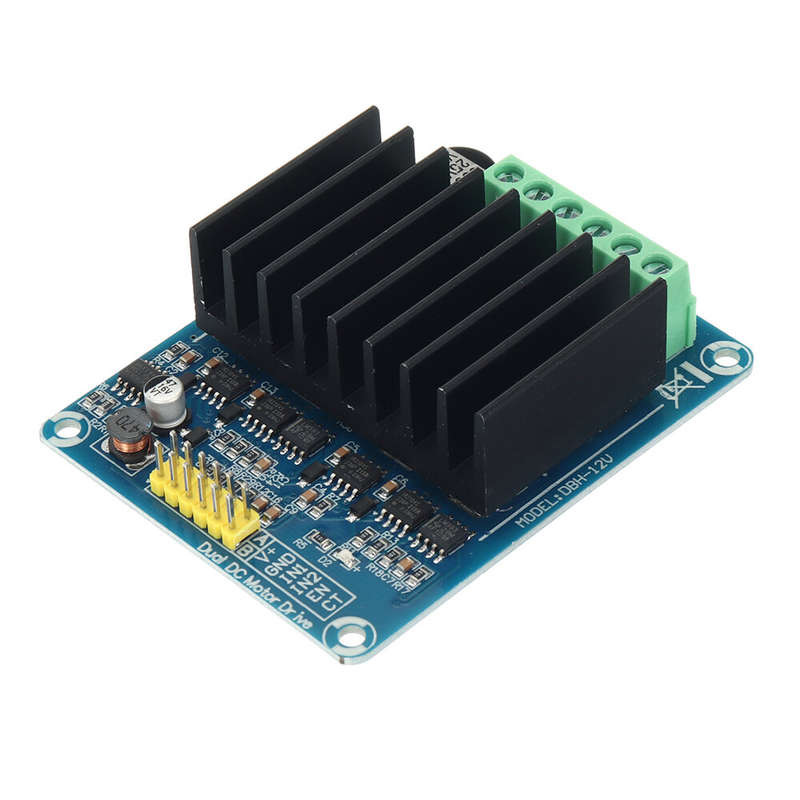

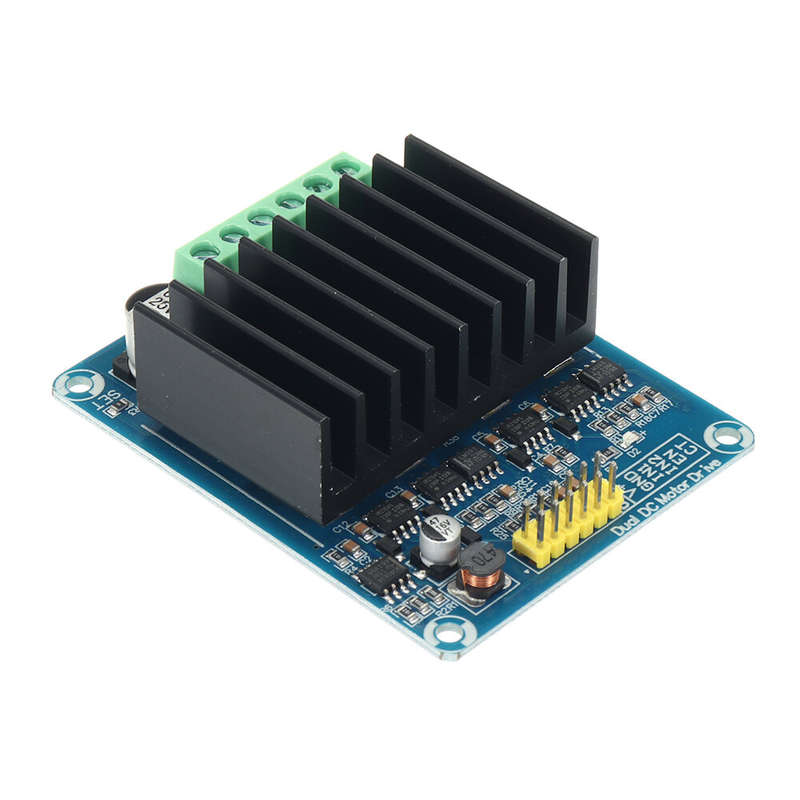

Specification:
Working Voltage: DC5V-12V
Standby Current: < 30mA±5mA
Current: 0A-30A (Max) / per channel
PWM Mode: Duty Ratio: 0-98%; Frequency: General Motor: 16kHz; Coreless Motor: 80kHz; TEC: 500Hz-80kHz
Input Voltage Level: Low: 0-0.5V; High: 2.5V-13V (Typical Drive Level: 3.3V, 5V, 12V)
Current Sampling: CT Pin Output Voltage (V) = Current (A) * 0.155
Product Dimensions: 6.2 * 5.3 * 1.8cm / 2.44 * 2.08 * 0.71in
Product Weight: 54g / 1.93oz
Features:
1. Versatile Use: The device can be used for controlling ordinary DC motors and smart car motors.
2. Reverse Control and PWM Speed Control: It allows both reversibility and speed control.
3. High-speed Switch Design: Designed for swift operation.
4. Ultra-low Resistance and Low Heat: Operates with ultra-low resistance, producing minimal
