30A In-line MC4 PV Solar Fuse | Fuse Holder Cable Connector 30Amp 1000V DC
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details

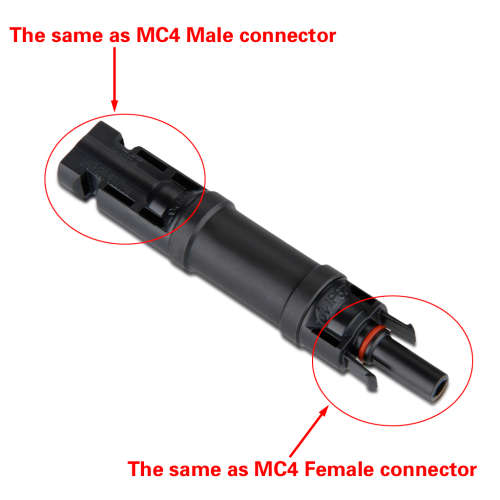

30A In-line MC4 PV Solar Fuse | Fuse Holder Cable Connector 30 Amp 1000V DC
Description:
This high quality IP67 rated connector is designed to protect solar panels from current backflow.
This is a recommended investment to protect your valuable investment in solar panels.
Feature:
- 30A in-line Diode Connector Solar Panel Cable Connectors
- Practical connector used between Solar panel and switch box to prevent the reversal of current.
- Contacts for the connector are copper, coated with tin for easy solder adhesion. Each end nuts comes with rubber bushings for air tightening.
- This MC4 connector is rated as IP67. IP (Ingress Protection) ratings the first numeral refers to the level of dust resistance and the second numeral refers to the level of water resistance.
- Diode built in the connector
- TUV-approved Connector head
Specification:
MC4 Connector Material: PPO, PC | Degree of protection: IP67 |
Rated current: 30A | Flame class: UL94-V0 |
Rated voltage: 1000V(TUV)&600V(UL) | Safety class: II |
Test voltage: 6kV(50Hz,lmin) | Insertion force/withdrawal force: ≤50N/≥50N |
Pin dimensions: F4.0mm | Connecting System: Crimp connection |
Contact resistance of plug connector: ≤5mΩ | Temperature range: (-40¿ ~ +85¿) |
Contact material: Copper, Tin plated | Highest Temperature: 110¿ |
Insulation material: PPO |
Package:
-1x PV Diode Connector
