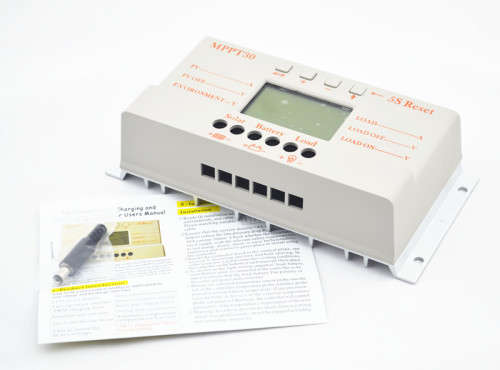

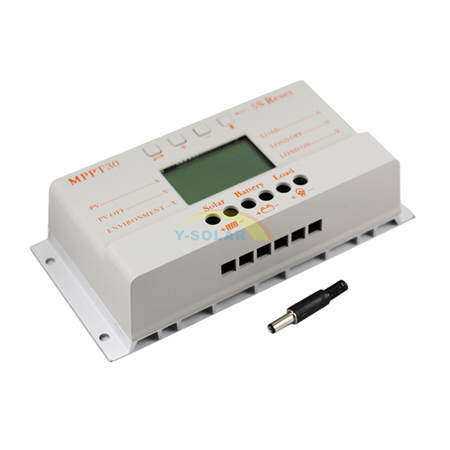

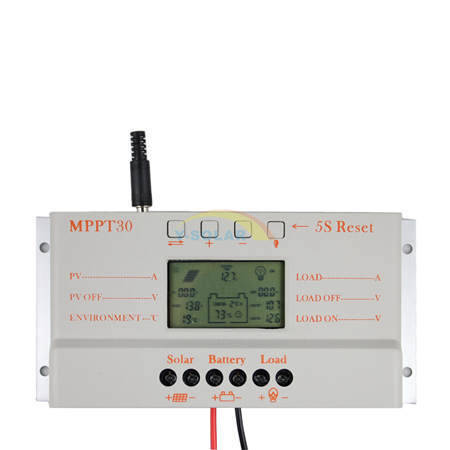

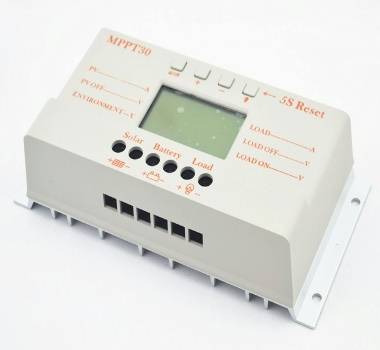

30A MPPT+ PWM charging mode Solar Charge Controller with LCD Display
New
R917.41
Closed
10 Aug 16 12:18
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 3 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
South Africa
Customer ratings:
Product code
MPPT30A
Bob Shop ID
238557538
Product summary
This is a 30A solar charge controller compatible with MPPT and PWM. It not only has efficient MPPT controller charging features to automatically track the maximum power point but also has a 10%-30% higher efficiency than most common controllers. The standby energy saving feature has a standby power consumption of only 10mA-15mA. The LCD and function buttons are added features to allow easy access to voltage and current monitoring, and allow some parameters to be changed. See complete list of parameters that can be changed below.
Product introduction
- LCD screen display
- Battery reverse discharge protection
- Easy operation interface
- Battery reverse polarity protection
- MPPT+ PWM charging mode
- Battery under voltage protection
- Parameter user can reset Overload
- Short-circuit protection
- Automatic temperature compensation function
- A key to restore the factory settings
- A key to open and close the load

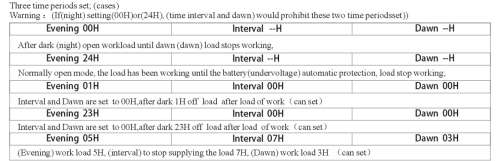

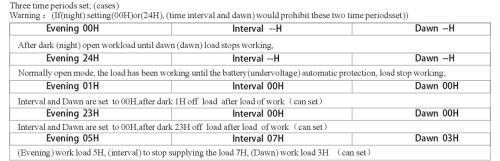

Dual Timer function
Data Sheet
| Parameters / Model: | T30 |
| Maximum power current: | 30A |
| Installation Line mm2: | 10mm2 |
| Installation Line(AWG): | 7(AWG) |
| Weight: | 475g |
| Dimensions: | 187×97×61mm |
| System load loss: | 13mA |
| Loop Back: | 100mV |
Product images

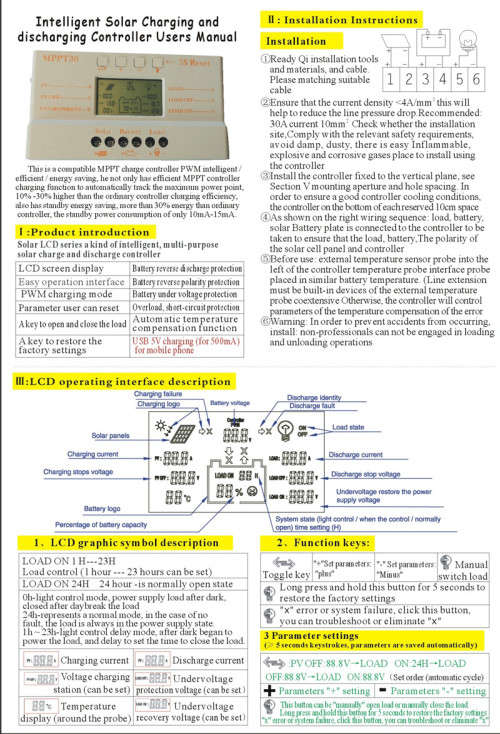

Product manual
