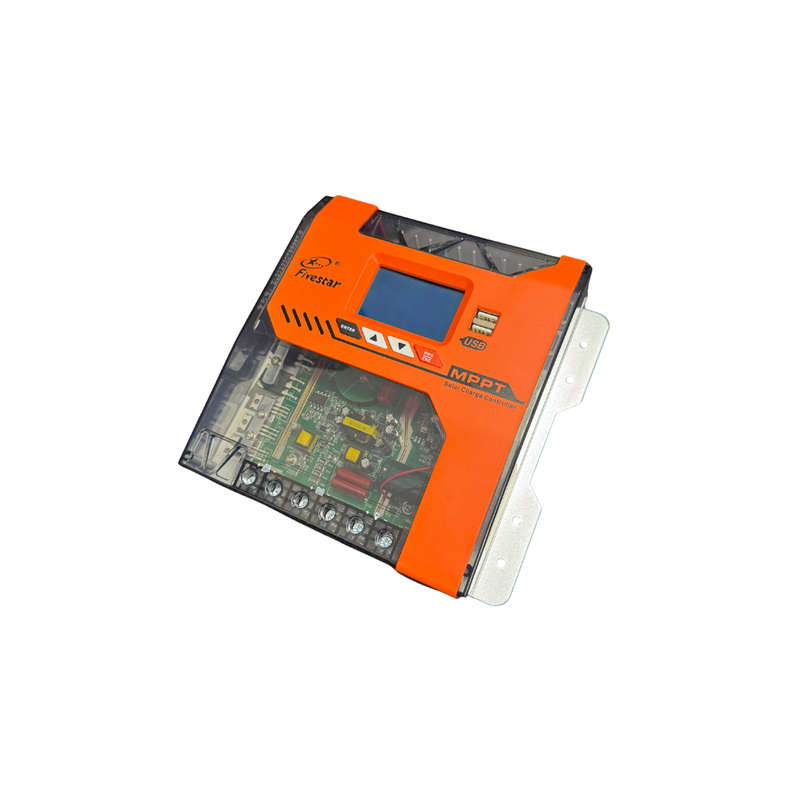

30A MPPT Solar Charge Controller - Fivestar FSM-30

Description:

The Fivestar FSM-30A MPPT Solar Charge Controller offers reliable and efficient solar energy regulation for 12V, 24V, 36V, and 48V battery systems. Built with high-performance MPPT technology and an advanced DSP controller, this unit maximizes solar harvesting while ensuring battery longevity.

Key Features:

-Auto Battery Voltage Recognition: Supports 12V, 24V, 36V, and 48V battery banks with seamless automatic switching.

-High MPPT Tracking Efficiency: Over 99% MPPT tracking and up to 98% conversion efficiency ensures minimal energy loss.

-Intelligent 3-Stage Charging: Fast, constant, and float charge modes with enhanced boost to improve battery performance and extend lifespan.

-Real-Time Monitoring: LCD display provides live feedback on PV input voltage/current, battery voltage, and load current.

-Robust Build & Certification: CE and RoHS certified for compliance and safety in solar installations.

Technical Specifications:

-Brand: Fivestar

-Model: FSM-OP30-30A

-MPPT Voltage Range: Up to 180V

-Maximum Input Power:

-360W (12V)

-720W (24V)

-1080W (36V)

-1440W (48V)

• Control Type: MPPT with DSP Controller

• Charging Stages: 3-Stage (Bulk, Absorption, Float)

Package Includes:

-1 × Fivestar FSM-30A MPPT Charge Controller

-1 × User Manual

Warranty & Installation:

Includes a 1-year warranty. For optimal performance and compliance, it is recommended that installation be carried out by a qualified installer. Ensure installations adhere to SANS 10142 standards and a Certificate of Compliance (COC) is issued.
