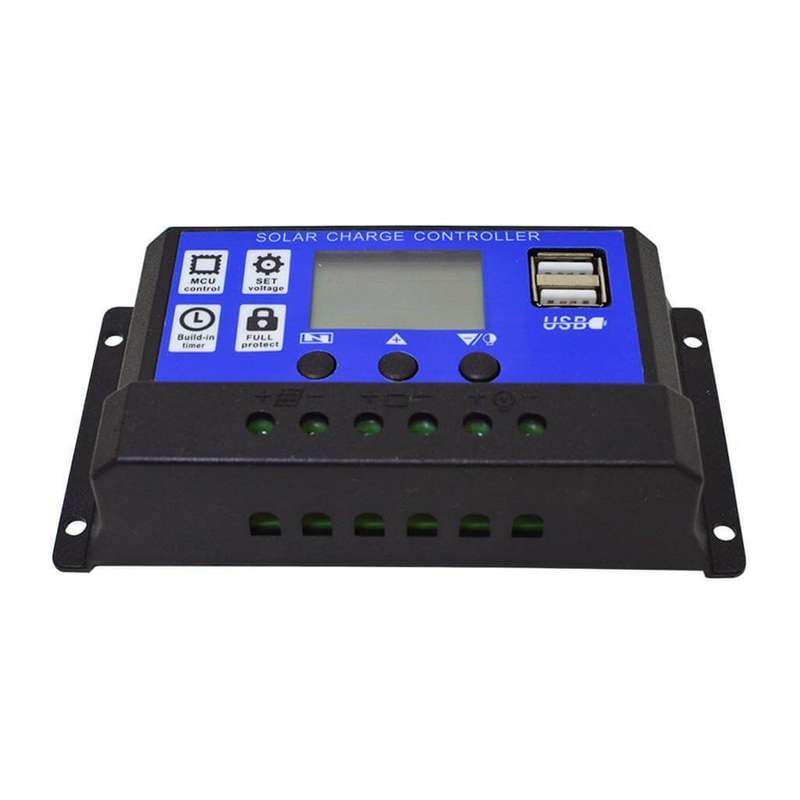

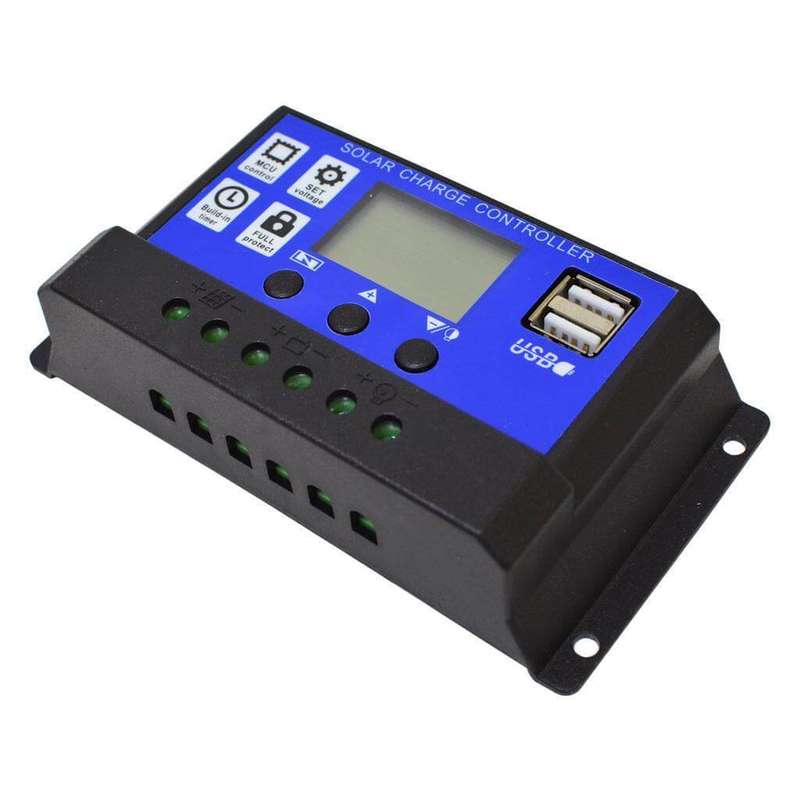

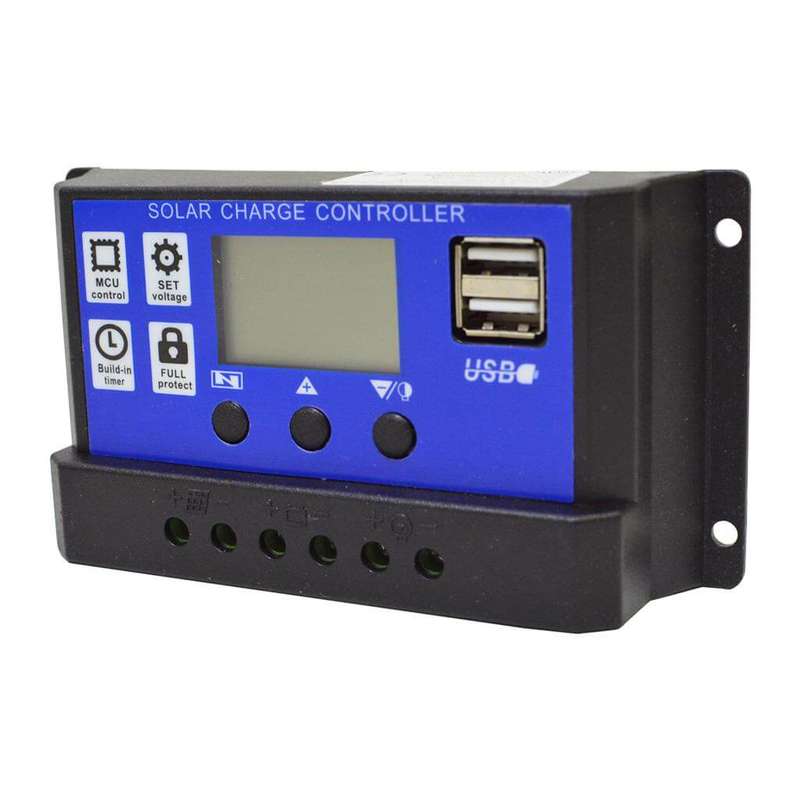

30A Solar Charge Controller, 12V/24V

This 30A Solar Charge Controller is designed for 12V and 24V Lead-Acid, Gel & AGM Deep Cycle batteries. It automatically detects the type of battery used in your set up and is plug-and-play (internal values can be adjusted manually).

• 30A Solar Charge Controller with 3-stage PWM charge management
• Supported battery types: Lead-Acid, Gel, AGM Deep Cycle batteries, 12V and 24V
• Dual USB output ports (5V, 2.5A)- compatible with multiple digital devices
• LCD display - voltage, status, time, load, output, charge & more
• Suitable for home, industrial & commercial purposes
• Safe (CE-marked), easy to install & operate

This product is sourced and distributed by ALTIMUS, a South African company based in Cape Town that specialises in drip-irrigation, DC electrical and solar components.

Click here to view all Altimus products available in South Africa.

Multiple electronic protection

• Open-circuit protection
• Short-circuit protection
• Over-load protection
• Reverse protection
• Dual Mosfet reverse current protection

How to install:

Wiring steps

• Screw the adjustment screw anti-clockwise until the plates move down
• Insert the wire into the new opening between the plate and the "top" of the terminal hole, not underneath it
• Screw the adjuster clockwise. The plate will move upwards, therefore squashing the wire in the terminal hole

Installation steps

• Connect the system in the order: battery, then load, then PV array
• Disconnect the system in the reverse order: PV array, then load, then the battery

Notes:

• Ensure your battery has enough voltage for the controller to recognize the battery before the first installation
• The working temperature of this controller is -35C to 60C
• Please keep the controller in a cool & well-ventilated place to maintain good heat dissipation

What's in the box?

• 1 x 30A Solar Charge Controller
• User's manual

Product specifications:

• Type: PWM-Type Solar Charge Controller, 30A, 12V/24V
• Battery type: DC 12V/24V (auto detect)
• Charge current: 30A
• Discharge current: 30A
• USB output: 5V/2.5A maximum
• Maximum solar input: 23V for 12V battery / 46V for 24V battery
• Equalization: sealed 14.4V / gel 14.2V / flooded 14.6V
• Float charge: 13.7V/27.4V
• Discharge stop: 10.7V/21.4V
• Discharge reconnect: 12.6V/25.2V
• Operating temperature: -35C to 60C
• Product dimensions: 133.5 x 70 x 35mm
• Weight: 165g
