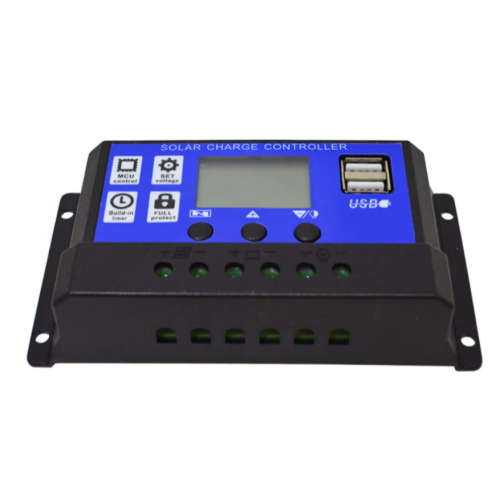

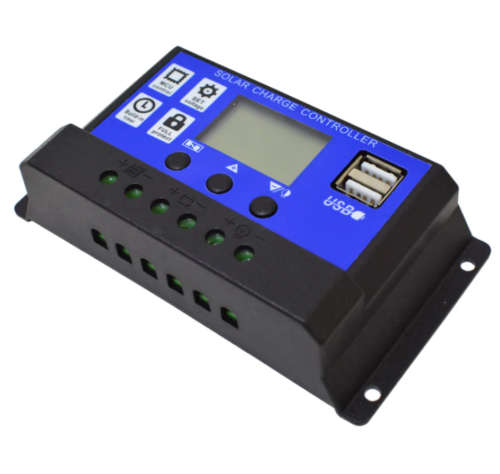

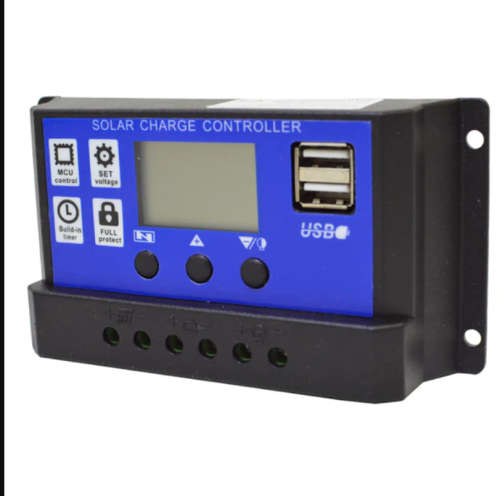

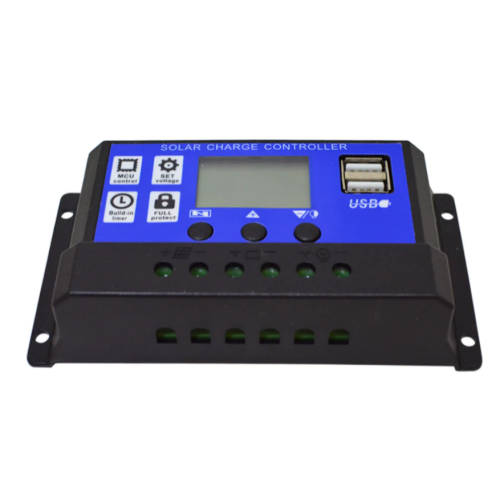

This 30A Solar Charge Controller is designed for 12V and 24V Lead-Acid, Gel and AGM Deep Cycle batteries. It automatically detects the type of battery used in your set up and is plug-an-play (internal values can be adjusted manually).
Features:
- 30A Solar Charge Controller with 3-stage PWM charge management
- Supported battery types: Lead-Acid, Gel, AGM Deep Cycle batteries, 12V and 24V
- Dual USB output ports (5V, 2.5A)- compatible with multiple digital devices
- LCD display - voltage, status, time, load, output, charge & more
- Suitable for home, industrial & commercial purposes
- Safe (CE-marked), easy to install & operate
Multiple electronic protection:
- Open-circuit protection
- Short-circuit protection
- Over-load protection
- Reverse protection
- Dual Mosfet reverse current protection
How to install:
Wiring steps
- Screw the adjustment screw anti-clockwise until the plates move down
- Insert the wire into the new opening between the plate and the "top" of the terminal hole, not underneath it
- Screw the adjuster clockwise. The plate will move upwards, therefore squashing the wire in the terminal hole
Installation steps
- Connect the system in the order: battery, then load, then PV array
- Disconnect the system in the reverse order: PV array, then load, then the battery
Notes:
- Ensure your battery has enough voltage for the controller to recognize the battery before the first installation
- The working temperature of this controller is -35°C to 60°C
- Please keep the controller in a cool & well-ventilated place to maintain good heat dissipation
Product specifications:
- Type: PWM-Type Solar Charge Controller, 30A, 12V/24V
- Battery type: DC 12V/24V (auto-detect)
- Charge current: 30A
- Discharge current: 30A
- USB output: 5V/2.5A maximum
- Maximum solar input: 23V/46V
- Equalization: sealed 14.4V / gel 14.2V / flooded 14.6V
- Float charge: 13.7V/27.4V
- Discharge stop: 10.7V/21.4V
- Discharge reconnect: 12.6V/25.2V
- Operating temperature: -35°C to 60°C
- Product dimensions: 133.5 x 70 x 35mm
- Weight: 165g

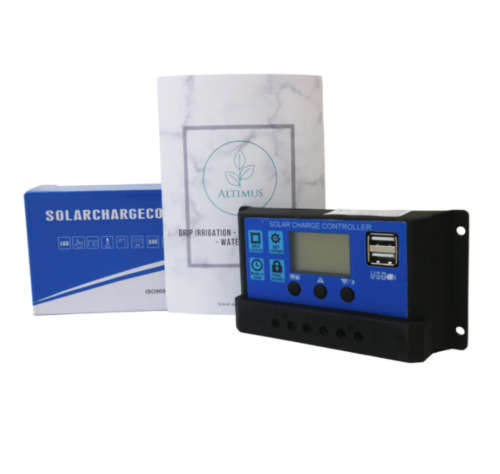

What's in the box?
- 1 x 30A Solar Charge Controller
- User's manual
