30amp SOLAR LED MPPT Regulator with Auto plus Load Shed (12-24v) by MICROCARE

Why you should consider buying a MICROCARE product:

Proudly South African with 20 years of manufacturing with many units having been sold locally and internationally. Service and repair of the products at a minimum cost due to local manufacture.



The MICROCARE MPPT REGULATOR is designed to interface between the SOLAR PANEL, the BATTERIES and the

LOAD. This TRACKER will always find the optimum power point of the solar panel system to ensure that maximum

power is extracted from the solar panel and put into the batteries. Using this system up to 30% more power can be

extracted from the solar panel than using shunt or series pass regulators.

This MICROCARE MPPT REGULATOR is also able to charge batteries of a lower voltage than the solar panel. By

means of LEDS it will show the status of the system. It also incorporates various charge modes which will

automatically increase the charge level to the batteries when first starting up or if the battery voltage falls below the

minimum volts.

This MICROCARE MPPT REGULATOR will read the nominal battery voltage. This unit is designed to run on a 12/24

volt battery set. It will then read the solar panel voltage and automatically find the optimum power point. The charging,

battery values and boost modes are then automatically adjusted.

Via links the load voltage disconnect can be selected, whether the battery is lead acid or sealed, and whether the unit

operates as a normal load shedder or as a day/night switch.

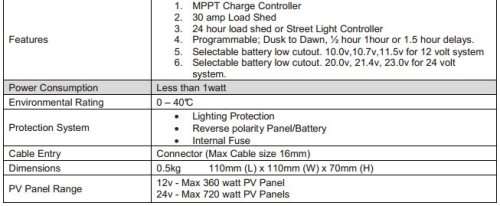

Features:



Automatically measures the battery voltage and then sets up the charge parameters (12v-24v).

Operates the Solar Panels at the maximum efficiency.

Charges batteries by setting up the best power point of the solar panels.

Can improve power extracted from the solar panels by 30% over normal shunt/series pass regulators.

LED Display.

Maximum Current 30 Amps.

30 amp Load controller.

Temperature controlled Cooling Fan.

Selectable low voltage disconnect.

24 hour load or Street Light mode.







NB: From receipt of payment, it normally can take 5 to 7 working days before manufacturer has unit ready for dispatching.

If you buy this item from me you will be saving R325.00, a considerable amount, as the supplier

suggested selling price is R2 500.00



For SOLAR PANELS, please see my listings under Electronics, other electronics.
