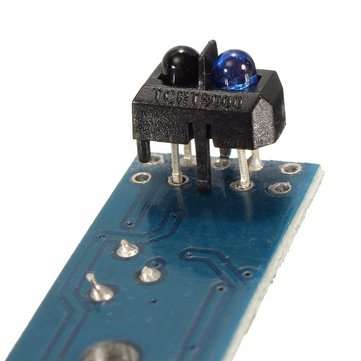

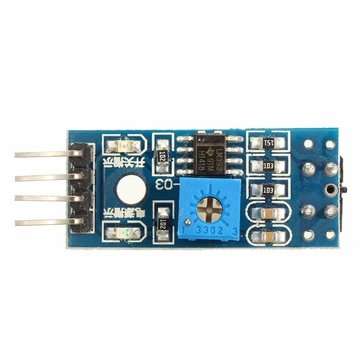

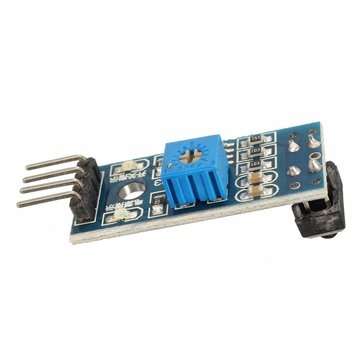

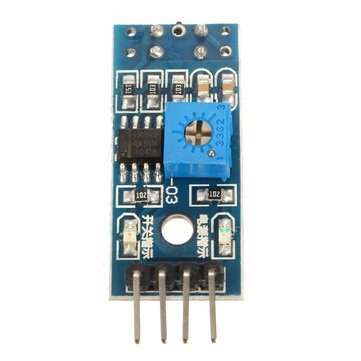

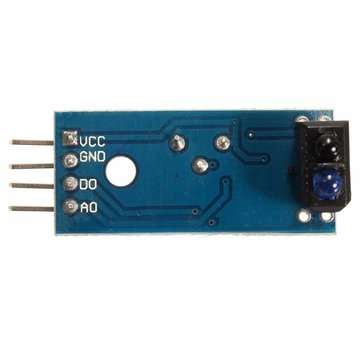

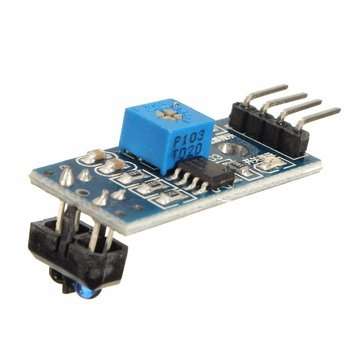

30pcs TCRT5000 Infrared Reflective Switch IR Barrier Line Track Sensor Module

20 available / new

R536.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3508

93.41 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

643362963

Features:

TCRT5000 sensor of infrared emission diode constantly launch infrared, the infrared ray is emitted when the intensity of reflected back has not been reflected or but is not big enough, the light activated triode has been in the off state, the output end of the module at this time for the high level, indicating diode has been put out state; Detected objects appear within the scope of testing, infrared light is reflected back and strength is enough big, light activated triode saturation, at this time the output of the module for the low level, instructs the diode lights.

Specification:

1. Using infrared reflection sensors TCRT5000
2. Test reflection distance: 1mm to 25mm
3. Clean and the comparator output, signal waveform, driving ability is strong, for more than 15 ma.
4. With many adjustable precision potentiometer to adjust sensitivity
5. The working voltage of 3.3V to 5V
6. Output form: digital switch output (0 and 1)
7. Has a fixed bolt hole, convenient installation
8. Small board PCB size: 3.1cm x 1.4cm
9. The LM393, use of wide voltage comparator
10. Applications: 1, the electricity meter pulse data sampling
11. Fax machine, shredder paper detection
12. Obstacle detection
13. Black and white line detection

Package included:

30 x TCRT5000 Module
