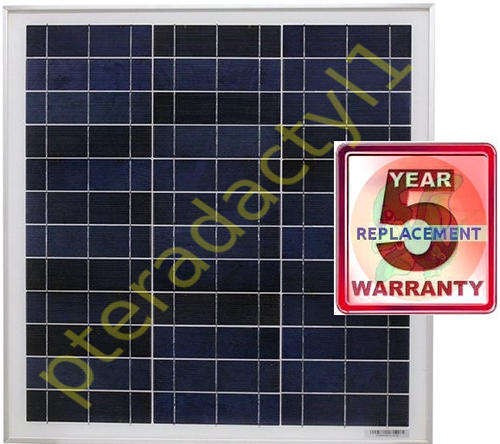

30w SOLAR PANEL POLYCRYSTALLINE ECO-PLUS SOLAIRE (18v - 30Wp)

 POLYCRYSTALLINE ECO-PLUS SOLAIRE 30Wp SOLAR PANEL

                                                            This product carries a 5 year carry-in replacement warranty.

                                                          Any faulty module gets replaced; send unit back to supplier and replacement will be sent.

                                                                           Power Life expectancy of panel:20 years 80% yield.

Specifications:

No.of cells and connections 36(6X6)

Cell: Polycrystalline solar cell 78mm X 73mm

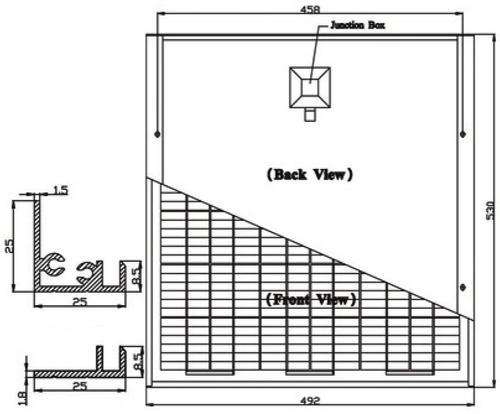

MODULE SIZE (mm): 530 x 492 x 25

Weight: 3.2 kg

 Product characteristics:

Open circuit voltage (Voc) 22.0V

Optimum operating voltage (Vmp) 18.3V

Short circuit current (Isc) 2.01A

Optimum operating current (Imp) 1.64A

Maximum power at STC (Pm) 30Wp (Watts peak)

STC: Irrandiance 1000W/m2, Module temperature 25°C, AM=1.5

Limits:

Operating temperature: -40°C to + 85°C

Maximum system voltage: 1000V DC

Temperature and Coefficients:

Nominal cell operation temperature (NOCT) 48°C +/- 2°C

Current temperature %K 0.035

Voltage temperature coefficient MV/K -0.37

Power temperature coefficient %K -0.5
