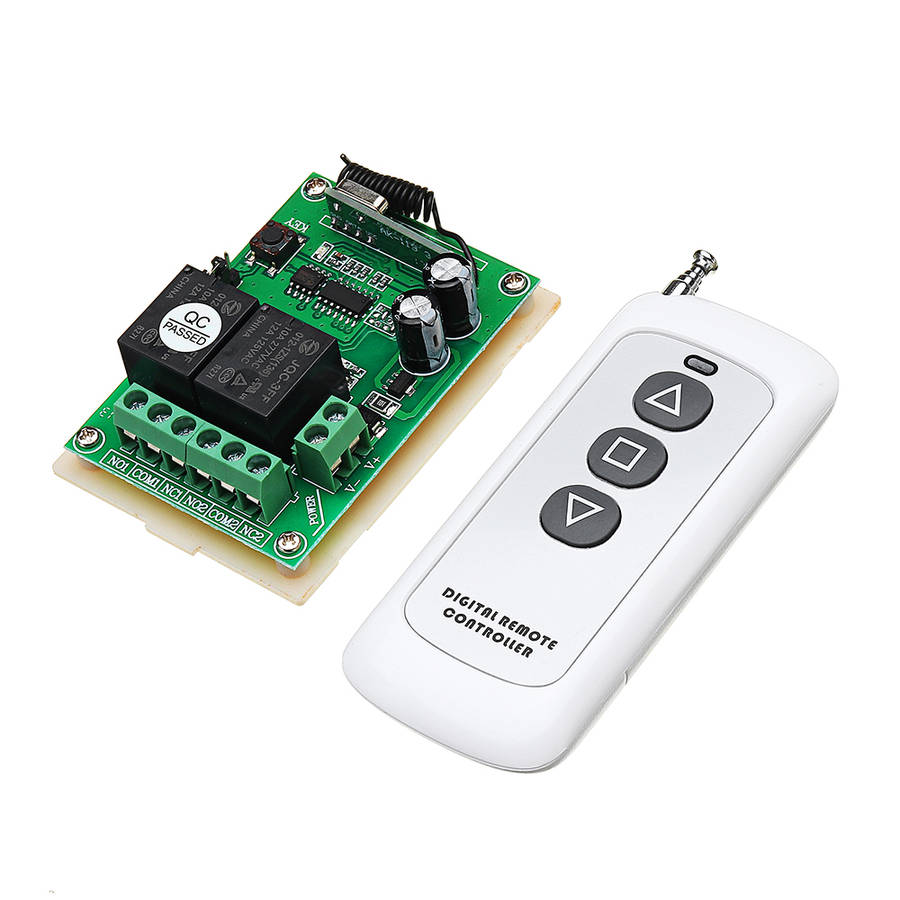

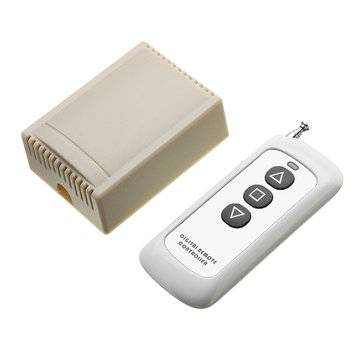

315MHz 12V Motor Forward Reverse Controller Wireless Remote Control Switch With 3 Button Transmitter

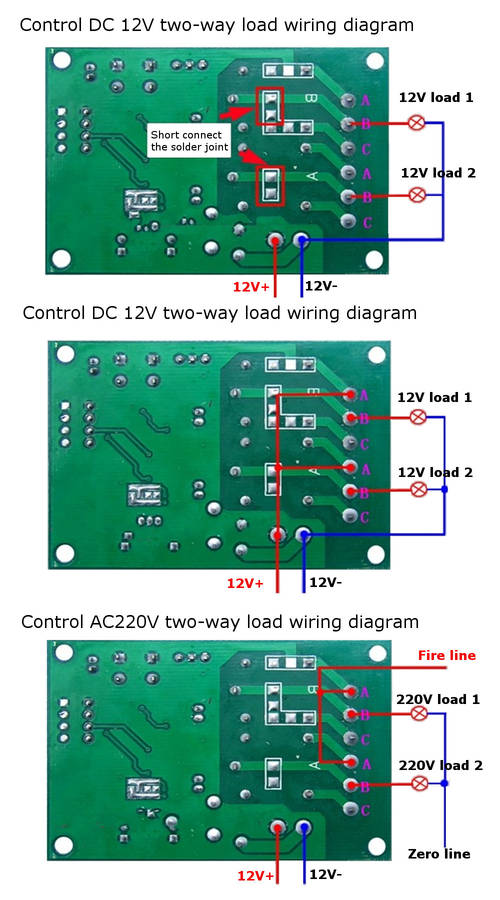

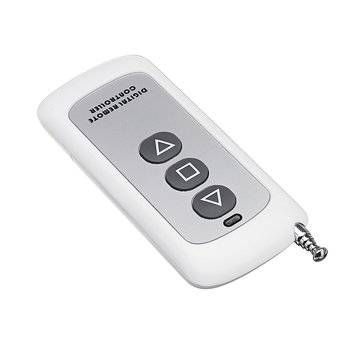

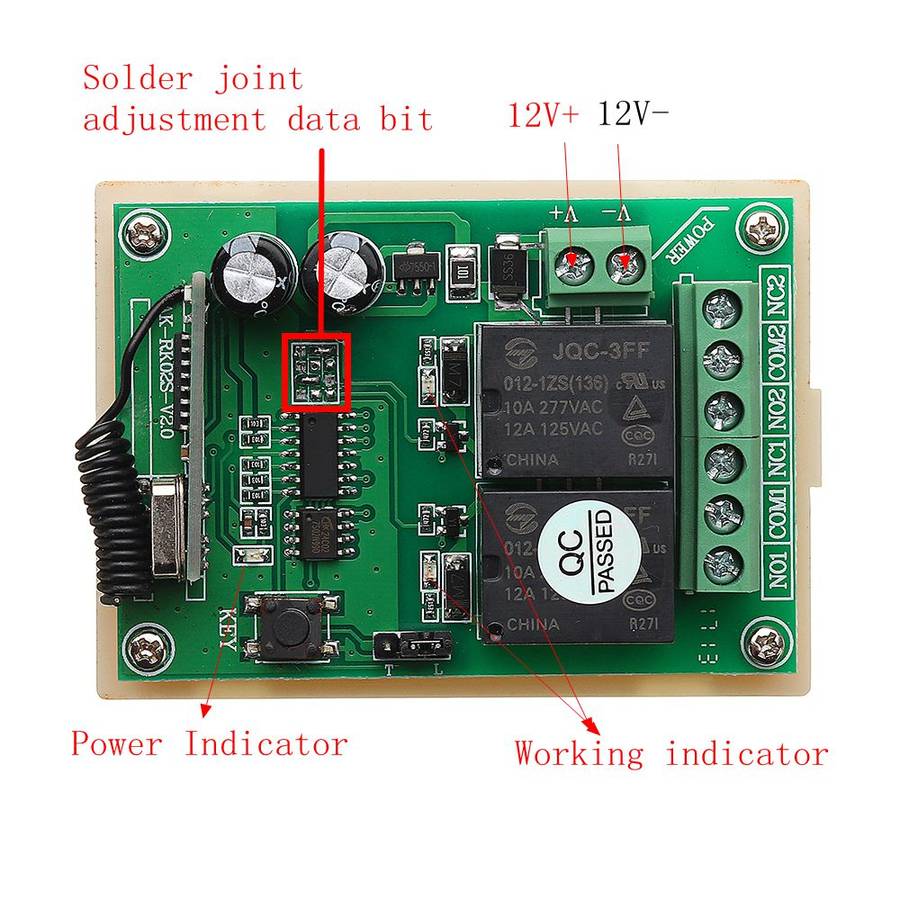

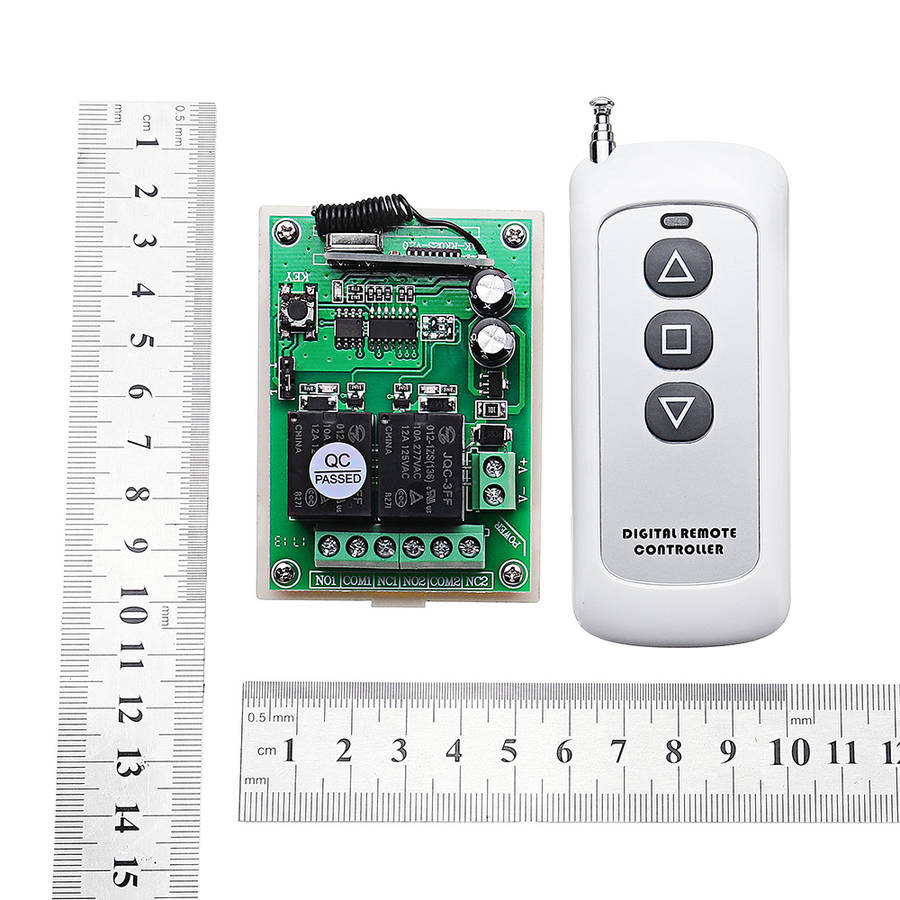

Feature: 1. Working voltage: DC12V 2. Quiescent current: a8mA single working current a40mA, two working current (self-locking) a80mA 3. Working temperature: -10ﾣC to +60ﾣC 4. Receive sensitivity: a-105dBm 5. Operating frequency: 315MHz 6. Output voltage: AC, DC optional 7. Output current: a10A 8. Size: 72 x 52 x 26mm Output method: A. Non-locking - the default working mode, the work switching jumps and does not insert; B. Self-locking - connect the 1 and 2 positions with a shorting cap C. Interlocking - connect 2 and 3 positions with a shorting cap Learning/clearing methods and steps: 1. Press the learning button, the indicator light is off. Press any button in the remote control within 6 seconds, the indicator light flashes four times and then lights up continuously, indicating that the learning is successful; 2. Can learn more than 20 different address codes of the 2262 chip, 1527 chip and other wireless remote control of the same frequency; 3. Clear: Press and hold the learning button about 8 seconds, the indicator light from off to long light, indicating that all the stored information has been successfully cleared. Remote control parameters: Working voltage: 1pc L1028 12V 23A Alkaline battery Working current: a15mA Quiescent current: 0mA Operating frequency: 315MHz Chip Type: Fixed Code (2260) Learning Code Ev1527 Oscillation resistance: according to customer requirements (commonly used 4.7) Modulation method: ASK amplitude modulation Size: 56.36 x 31.58 x 11.03mm Button: 3 button Remote control distance: 100m (in an open environment) (When there is an obstacle or when there is interference, the distance is shortened, please refer to the actual distance) Package includes: 1 x Receiver module with case 1 x Transmitter with battery
