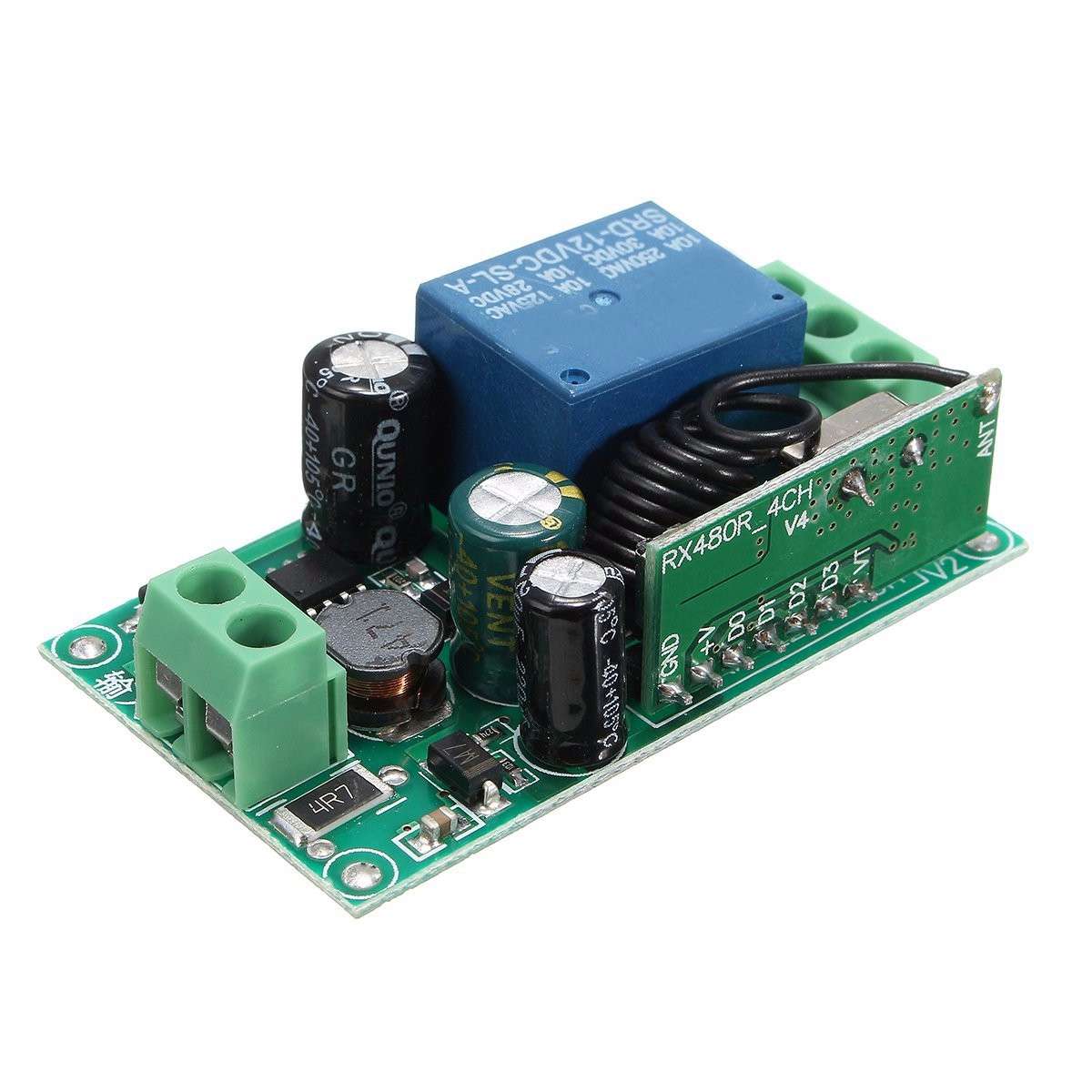

315MHz / 433MHz 220V 10A 1CH Channel Wireless Relay Remote Control Switch Receiver

10 were available / new

R90.00

Shipping

R65.00 Standard shipping applies to orders under R100.00, in most areas in South Africa. R35.00 Standard shipping applies to orders over R100.00. Some areas may attract a surcharge surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

click and buy2136

96.64 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

318469949

Specification:

1. Input Voltage: AC85V-AC220V
2. RF Frequency: 315/433MHZ
3. RF Working mode:Super heterodyne receiver
4. Receiver Sensitivity: -107dBm
5. Remote Control Distance: >100 meter(In open environment)
6. Decoding Way: MCU Software decoding
7. Can store the number of remote control:32
8. Support remote control type: Fixed code, learning code
9. Channel: 1CH
10 .Multiple working modes: (Jog/Non-Latched ,inter-lock/Latched ,self-lock /Self-Latched)
11. Wiring Method:Fixed wiring terminal
12. Rated load:10A 250VAC / 10A 125VAC, 10A 30VDC / 10A 28VDC

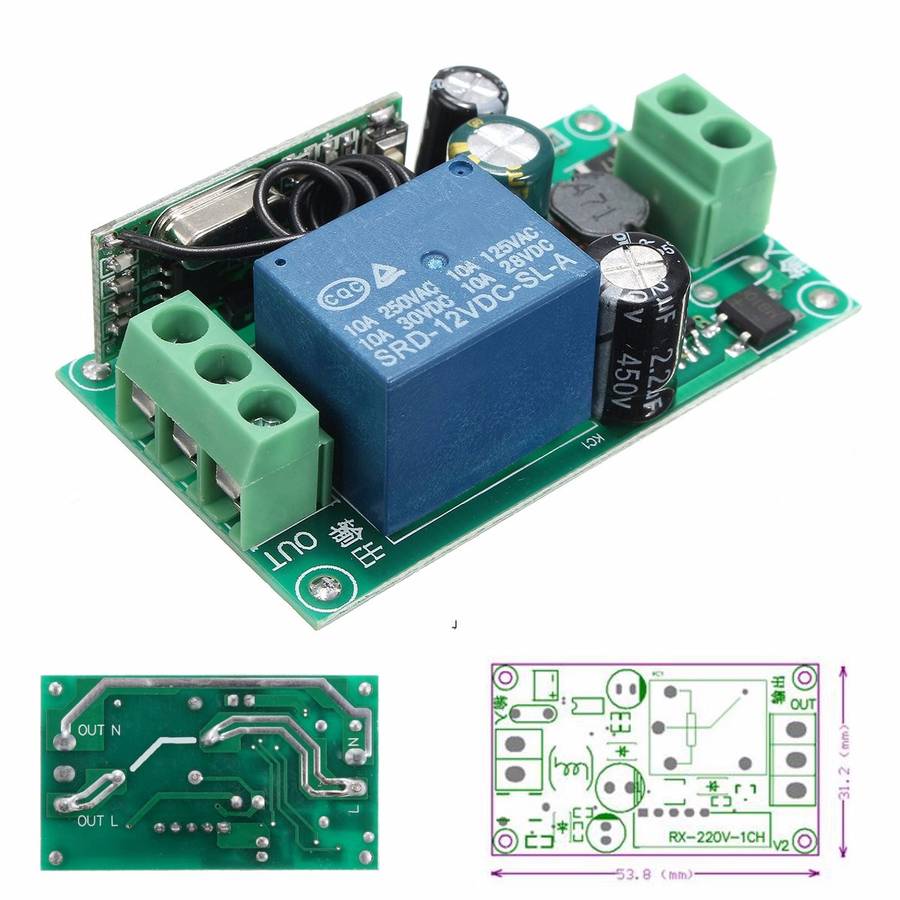

13. Dimension:5.4cm*3.1cm*1.4cm

Working/output method:

1. Jog/Non-Latched: Press one button is Working /ON. Loosen your finger on the same button is Stop/OFF. One channel switch need one buttons
remote control.
2. Self -lock/Self-Latched: Press one button for one time is working/ON. Press the same button again is stop/OFF. One channel switch need one
buttons remote control.
3. Inter-lock /Latched: Press one button is working/ON, press another button is stop/OFF. One channel switch need 2 buttons remote control.

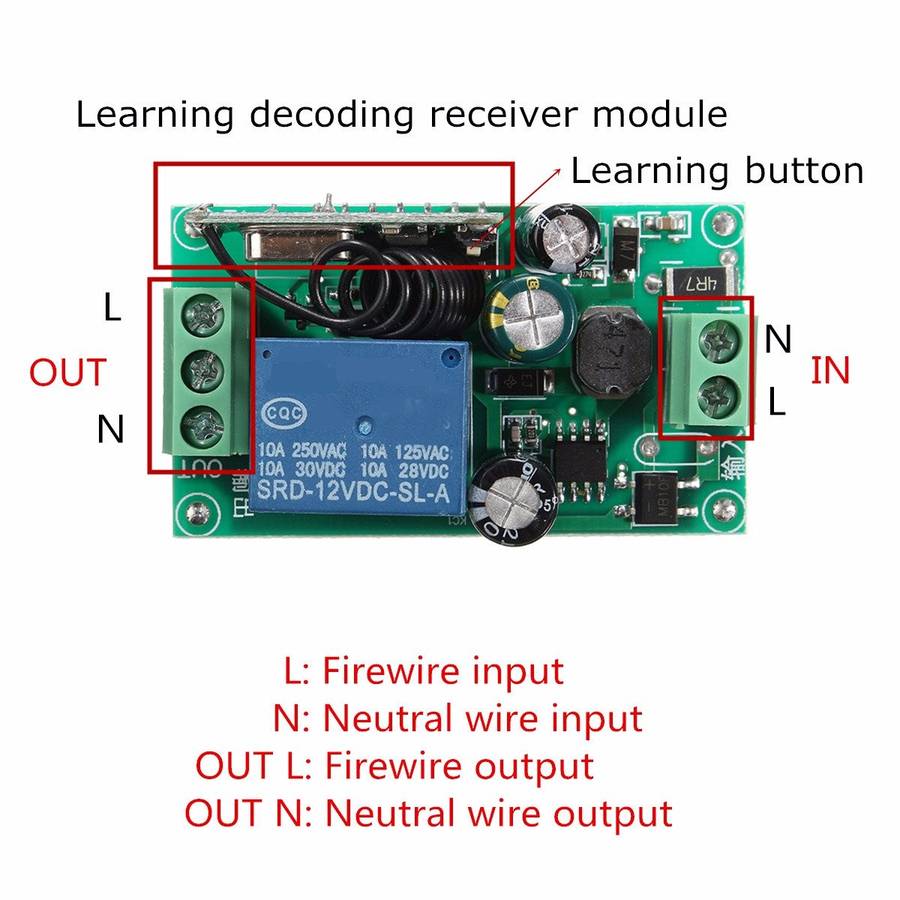

Clear & Learn Code:

1. Clear function - After pressing the "KEY" button 8 times, the LED will go off and release all the remote control data in the memory. When the LED
flashes for 5 times, it indicates that the clear function is completed.
2. learning function - click the learning button "KEY", LED indicator light indicates that the microprocessor to enter the learning state of the code,
press the matching wireless remote control button, LED light blinks 3 times then turn off means Code success.
3. LED flashes to determine the selected function.
* Flashing 1 time - Jogging function
* Flashing 2 times - Self-locking function
* Blink 3 times - Interlock function

Note:

When using for the first time, make sure to clear the factory code and clear the remote control code.

Package included:

1 x 220V 1 Channel Wireless Relay Switch
