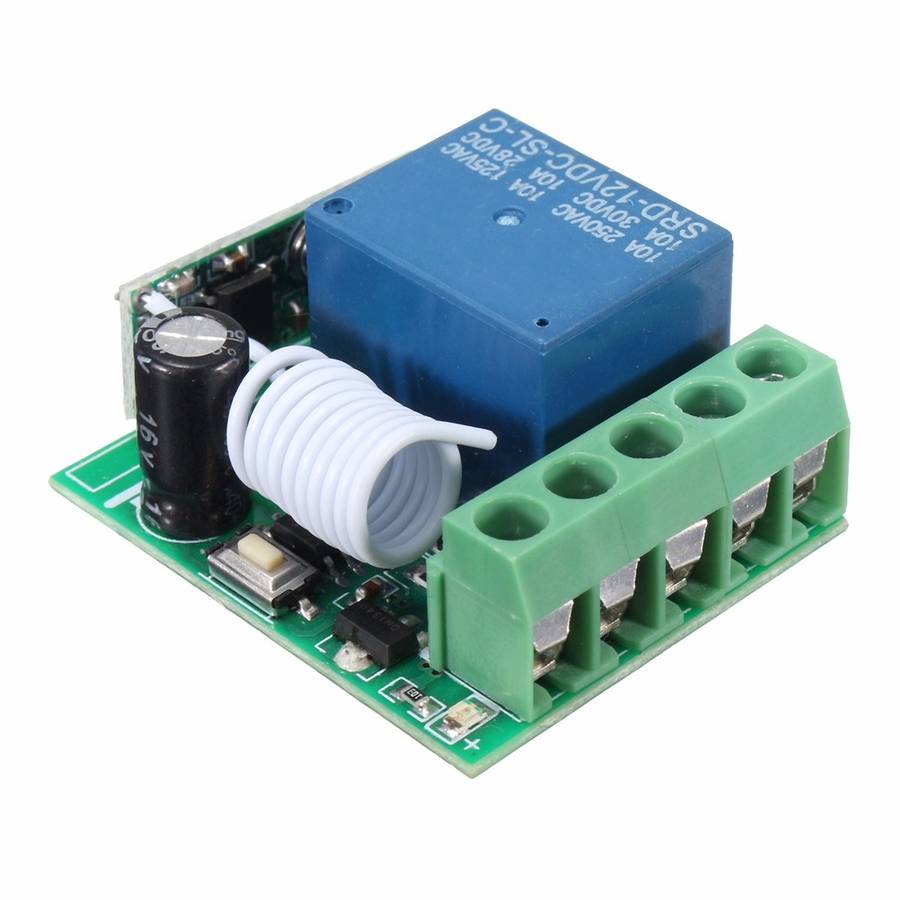

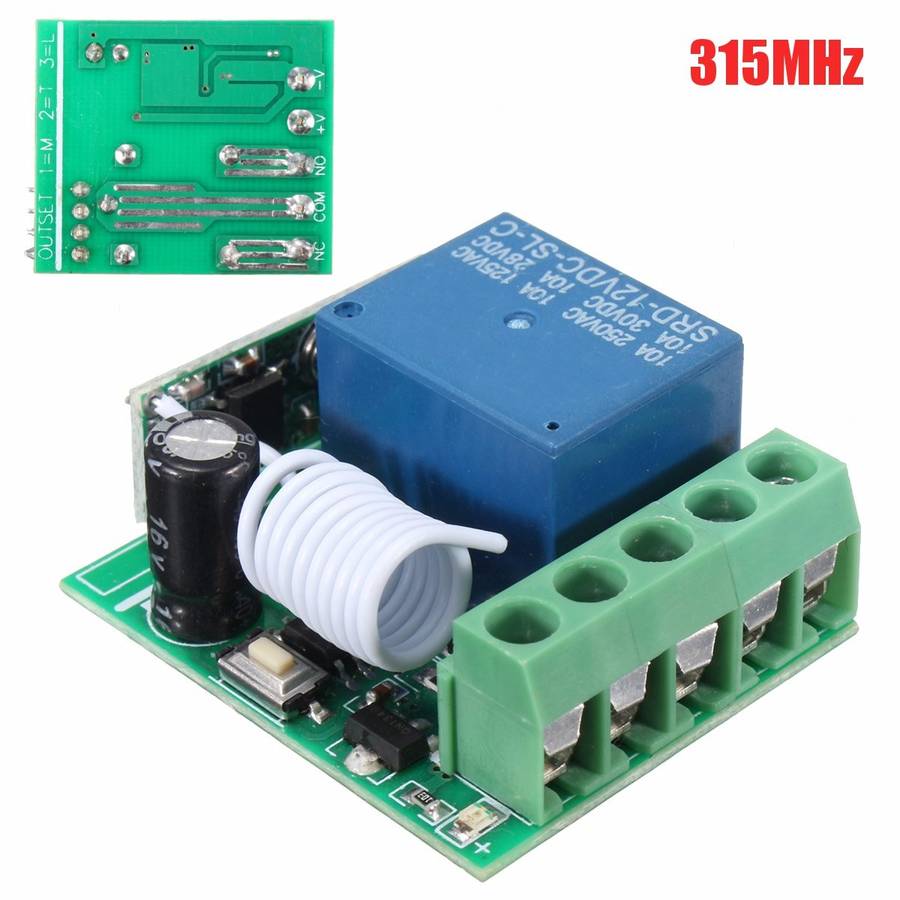

Name: 315MHz DC12V 10A 1CH Single Channel Wireless Relay RF Remote Control Switch Receiver Module
SKU: CSV_UPC1112117
Price: 59.67 ZAR
Availability: SoldOut
Rating: 5 (1 reviews)

315MHz DC12V 10A 1CH Single Channel Wireless Relay RF Remote Control Switch Receiver Module

5 were available / new

Indicative market price: R107.41

R59.67

44% off

Shipping

R65.00 Standard shipping applies to orders under R100.00, in most areas in South Africa. R35.00 Standard shipping applies to orders over R100.00. Some areas may attract a surcharge surcharge. This will be calculated at checkout if applicable.
Check my rate

R35.00 pickup point shipping applies to orders under R100.00, in most areas in South Africa. R5.00 pickup point shipping applies to orders over R100.00. There are various locker and counter collection points across South Africa.
View locations

The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

The World OnLine10219

98.28 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Condition

New

Location

South Africa

Customer ratings:

1 ratings

Product code

CSV_UPC1112117

Bob Shop ID

278961827

Specification:

1. Input Voltage: DC10-14V
2. Standby Current: <5MA
3. RF Frequency: 315MHZ
4. RF Working mode:Super heterodyne receiver
5. Receiver Sensitivity: >90dBm
6. Remote Control Distance: >100 meter(In open environment)
7. Decoding Way: MCU Software decoding
8. Can store the number of remote control:50
9. Support remote control type: Fixed code, learning code
10. Channel: 1CH
11. Multiple working modes: (Jog/Non-Latched ,inter-lock/Latched ,self-lock /Self-Latched,Delay off)
12. Wiring Method:Fixed wiring terminal
13. Working Voltage: DC12V
14. Output Current: 10A
15. Rated load:10A 250VAC / 10A 125VAC / 10A 30VDC / 10A 28VDC
16. Output:Normally open,Common,Normally closed

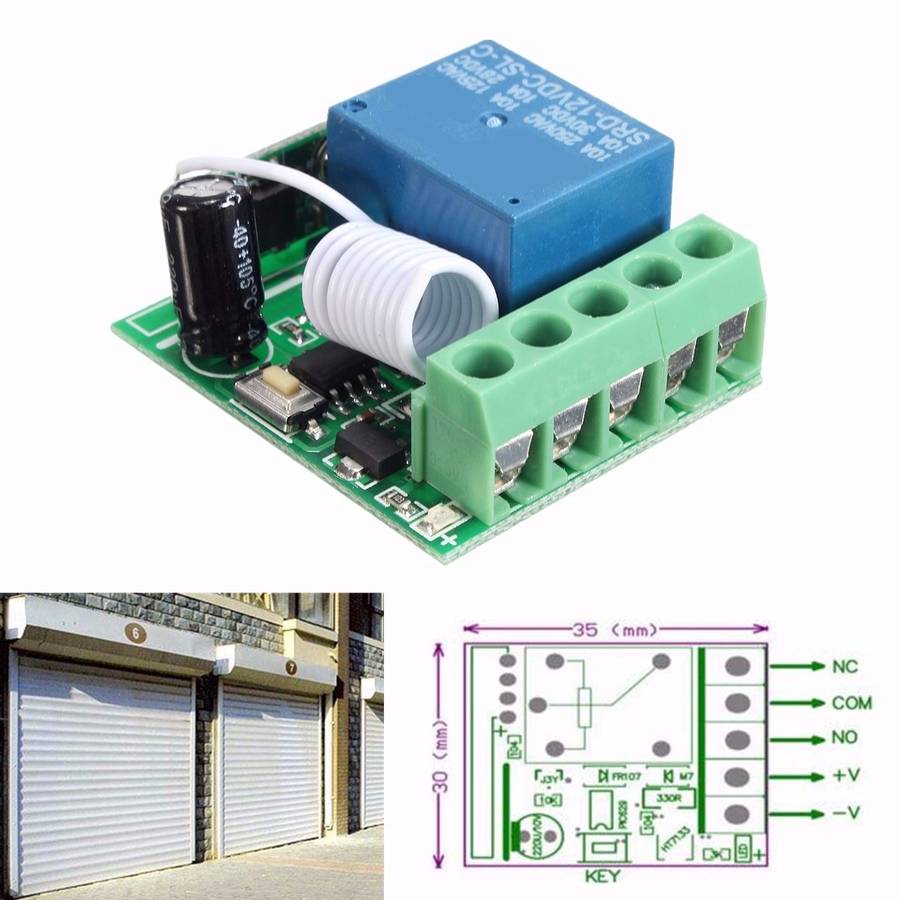

17. Dimension:3.5cm*3cm*1.6cm

How to use:

- Working/output way:
1.Jog/Non-Latched: Press one button is Working /ON. Loosen your finger on the same button is Stop/OFF. One channel switch need one buttons remote control.
2.Self -lock/Self-Latched: Press one button for one time is working/ON. Press the same button again is stop/OFF. One channel switch need one buttons remote control.
3.Inter-lock /Latched: Press one button is working/ON, press another button is stop/OFF. One channel switch need 2 buttons remote control.
4.Delay: Press remote control 's one button,relay is working,release the remote control and begin timekeeping,after 5s/10s/15s will automatically close the relay

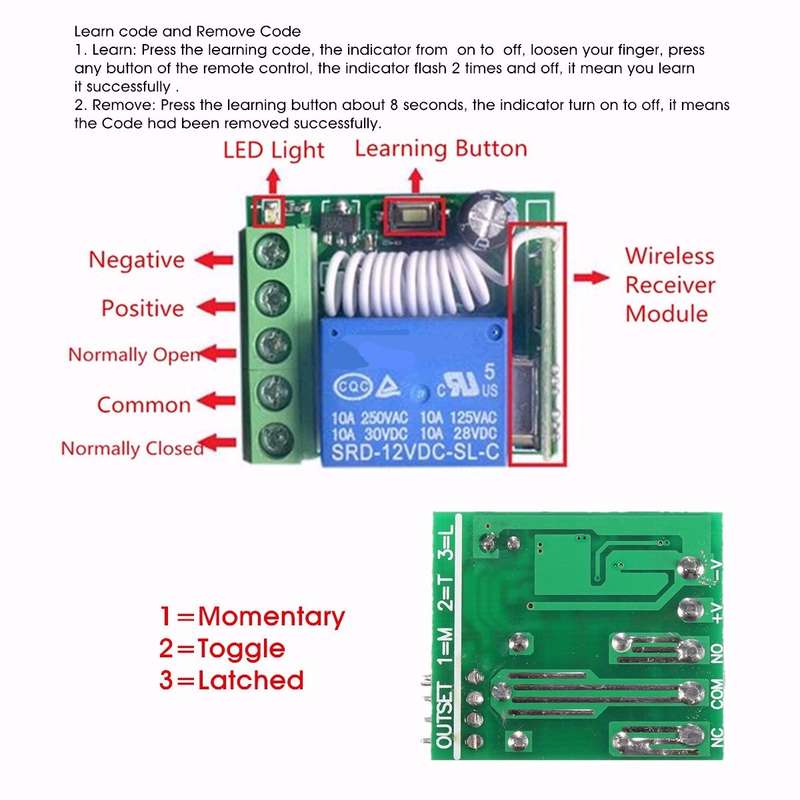

- Learn:
1. press the learning code .the indicator flash ,loosen your finger ,press any button of the remote control (press 1 times to learn Momentary;2times-
Toggle;3times-Latched;4times-5s delay;5times-10s delay;6times-15s delay) the indicator flash 2 times and off .it mean you learn it successfully.
2. it can learn 2272 2262 or 1527 chip with the different code wireless 315MHz remote control

- Reset new operating mode:
1. Jogging
Press the white learning button on the top of the control panel, LED lights, and then press any button on the remote control set to 'Jog' button, the control panel LED lights flashing, indicating that the setup is complete
2. Self-locking
Press the white learning button on the top of the control panel, LED lights, and then press any button on the remote control to set to 'self-locking' button, the control panel LED lights flashing,
3. Interlock
Press the white learning button on the control panel, the LED lights, and then press any button on the remote control set to 'start' button, the control panel LED lights flashing, press another button to set to 'stop' button LED Blinking means the setting is complete

- Remove/clean:
Press the learning button about 8 seconds , the indicator turn on to off, it means the information that you keep have been removed successfully .

Package included:

1 x Receiver
