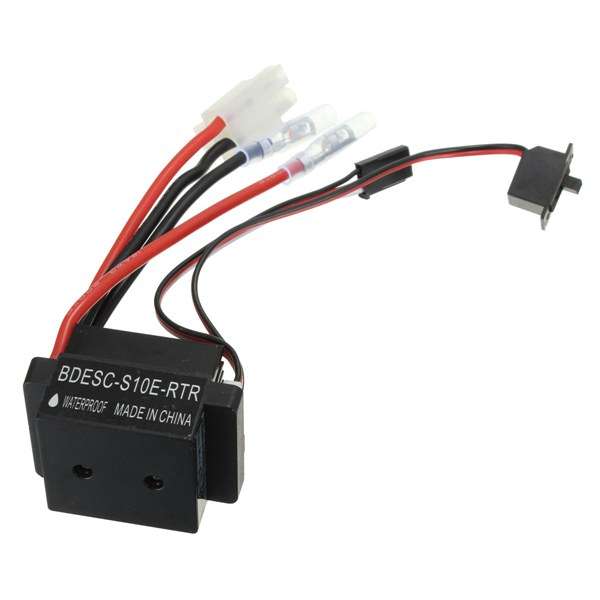

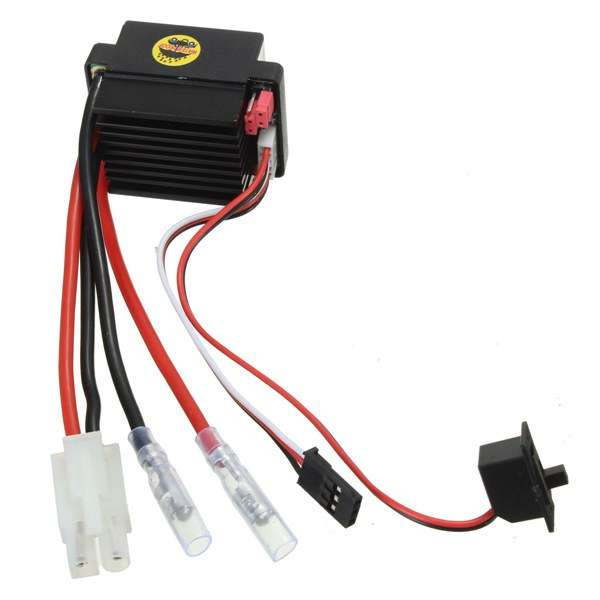

320A Brush Motor Speed Controller ESC For 1/10 1/12 RC Truck Car Boat
Features:When connected with motor, it is capable of supplying up to 320 Amps (forward) or 160Amps (backward) of continuous motor current.
Its integrated battery eliminator circuit (BEC) powers the receiver from the motor battery, with automatic cutoff of the motor power to preserve receiver power as the battery becomes depleted.
It is small and powerful, which can be used for different types of ship or car
Specifications:Working voltage: 6-12V
BEC current: 5V/2A
Internal resistance: 0.0076m ohm
Continuous output current: 320A (Forward), 160A (Backward)
Cable type: 16 AWG (Battery & Motor)
Cable length: 140mm (Battery & Motor), 450mm (Receiver)
Input battery types: NiCd/ Nimh/ Li-po battery
Recommend model: Ship/ Car

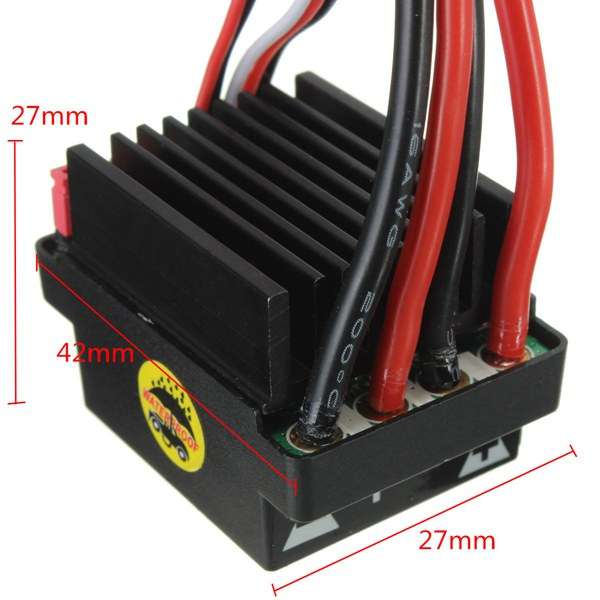

Dimensions: Approx. 42mm x 27mm x 27mm/ 1.65" x 1.06" x 1.06"
Package Included:1 x 320A Brushed Motor Speed Controller
