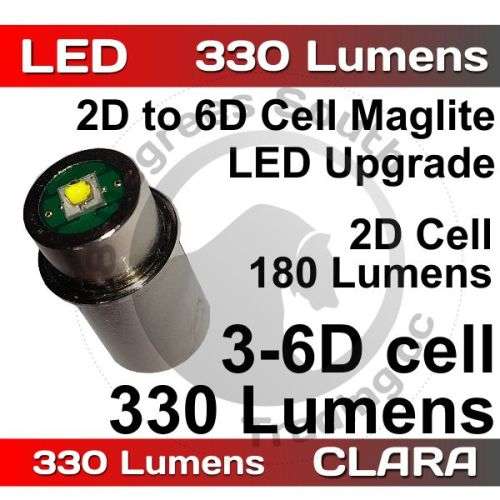

330 Lumen Clara LED Upgrade for Maglite Flashlight

330 Lumen LED CLARA Upgrade Module for Maglite
3 to 6 C & D Cell LED Upgrade - 330 Lumens
2 C & D Maglite - 180 Lumens

Lumen Rating:
-High quality Cree LED retrofits 2 to 6D cell battery incandescent Maglite flashlight.
-Premium 3 watt superior CNC LED Bulb.
-Electronically regulated to maintain a relatively non-dimming light.
-Base Type: Maglite
-Voltage: 1.5V~9.0V
-Increase run-time on one set of batteries to over 30 hours.

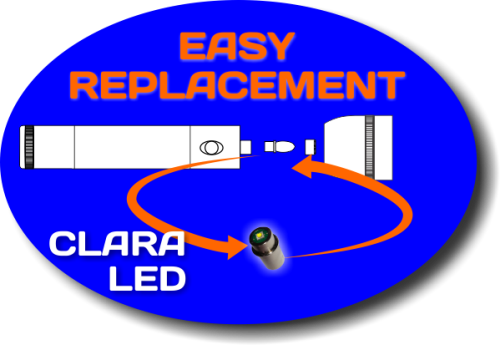

LED Installation:
1. Unscrew the head of your Maglite flashlight, do not unscrew the Face-cap which holds the lens.

2. Remove the Head of the Maglite from the Barrel.

3. The Bulb and the bulb retaining ring will be exposed. Unscrew the bulb retaining ring and take both the Bulb and the bulb retaining ring off the switch.

4. Replace the bulb with your NEW 330 Lumen LED module. Place the bulb retaining ring over the LED module and screw back into place.

5. Screw the head of the Maglite back on to the body until it is "snug", do not over tighten.
