35 MM Magnetic Base Drill

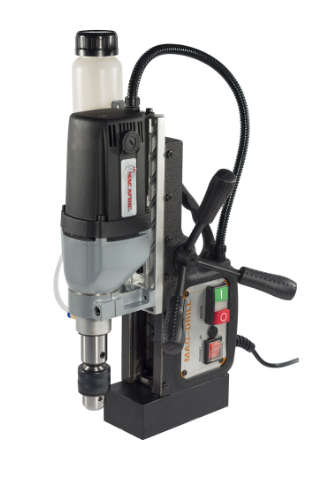

MAC AFRIC Portable Magnetic Base Drill

The MAC AFRIC Portable Magnetic Base Drill is designed for high-performance drilling in steel and metalworking applications. Its compact design and heavy-duty magnet make it ideal for on-site hole cutting in steel plates, such as H-beams, framework, shipbuilding, bridge construction, steel reinforcements, and other metalworking projects. This drill offers efficiency and durability, making it an essential tool for construction and metal fabrication professionals.

Key Features:

• Power Output: 1.2 KW (1.6 HP) motor for strong and consistent performance.
• Voltage: Operates on 230V @ 50 Hz, suitable for most power sources.
• Maximum Cutting Diameter: Drills holes up to 35 mm in diameter.
• Maximum Cutting Depth: Capable of drilling up to 50 mm deep, ideal for thick steel plates.
• Maximum For Twist Drill: Supports 13 mm twist drills, offering versatility for various drilling tasks.
• No Load Speed: Operates at 595 RPM for smooth and efficient drilling.
• Base Dimensions: 179 x 83 x 42 mm; compact and easy to handle.
• Magnetic Force: Strong 13,000 N magnet for stability during drilling, even on vertical surfaces.
• Cutter Retainer Internal Diameter: 19 mm shank size for easy cutter installation.
• Coolant Tank Capacity: 400 CC tank to keep the drill bit cool, preventing overheating and ensuring longer tool life.
• Drill Chuck Size: Comes with a 13 mm drill chuck for versatility in drill bit use.
• Sturdy Feed Handles: Designed for ease of use and maximum control during operation.
• Additional Accessories: Includes a coolant tank kit, safety chain, and a blow-mould plastic case for convenient storage and transport.

Specifications:

• Power Output: 1.2 KW (1.6 HP)
• Voltage: 230 V @ 50 HZ
• Maximum Cutting Diameter: 35 mm
• Maximum Cutting Depth: 50 mm
• Maximum For Twist Drill: 13 mm
• No Load Speed: 595 RPM
• Base Dimensions: 179 x 83 x 42 mm
• Magnetic Force: 13,000 N
• Cutter Retainer Internal Diameter: 19 mm Shank
• Coolant Tank Capacity: 400 CC
• Drill Chuck Size: 13 mm

Package Details:

• Package Weight: 17.00 kg
• Package Length: 57.20 cm
• Package Width: 17.20 cm
• Package Height: 45.70 cm

Why Choose the MAC AFRIC Portable Magnetic Base Drill?

The MAC AFRIC Portable Magnetic Base Drill is perfect for professionals needing a compact, powerful drill for metalworking and construction tasks. With its strong magnetic base, the drill can be securely attached to vertical or horizontal surfaces, making it ideal for on-site jobs. Its durability and precision make it a reliable tool for cutting through tough materials like steel and iron. Additionally, the included accessories and easy portability ensure a smooth, convenient user experience.
