Specification highlights:
Price per watt (incl. VAT): R 6.84

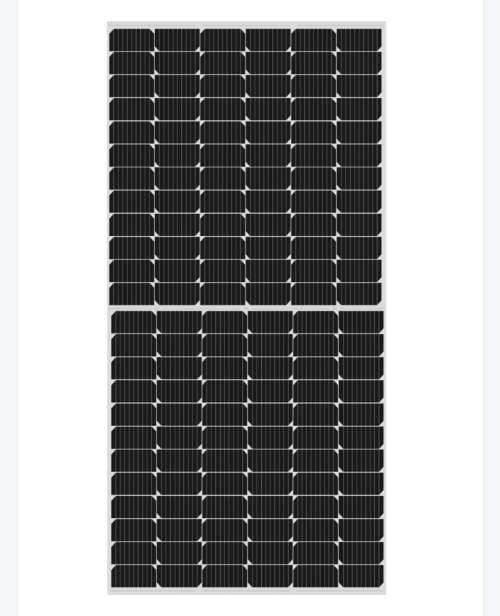

350W Monocrystalline PERC PV panel.
6 Busbar design.
120 A-grade monocrystalline solar cells.
With a 12-year product warranty and a 30-year linear power warranty.
Certifications include: German (TUV) certified, IEC, and CE
Electrical specifications @ STC:
Module efficiency: 17.5%
Maximum power (Pmax): 350W
Maximum power voltage (Vmp): 35.5V
Maximum power current (Imp): 9.87A
Open circuit voltage (Voc): 43.8V
Short circuit current (Isc): 10.17A
Maximum system voltage: 1000VDC(IEC)
Maximum series fuse rating: 15A
Mechanical specifications:
Cell size: 158.75 x 79.375mm
Cell type: A-grade square PERC monocrystalline solar cell
Number of cells: 120(6 x 20)
Weight: 18.7kg
Dimensions: 1700 x 1004 x 35 mm
Max load: 5400 Pascal
Junction box: IP 68 rated
Connector: MC4 Compatible
Cables: Photovoltaic technology cable 4.0 mm2, 900mm
Warranty:
Product warranty: 12 years
Design life warranty: 30 years
Power output warranty: 90% in 12 years, 80% in 30 years
