355mm Led Backlight Strip Kit for Update Ccfl Lcd Screen to Monitor

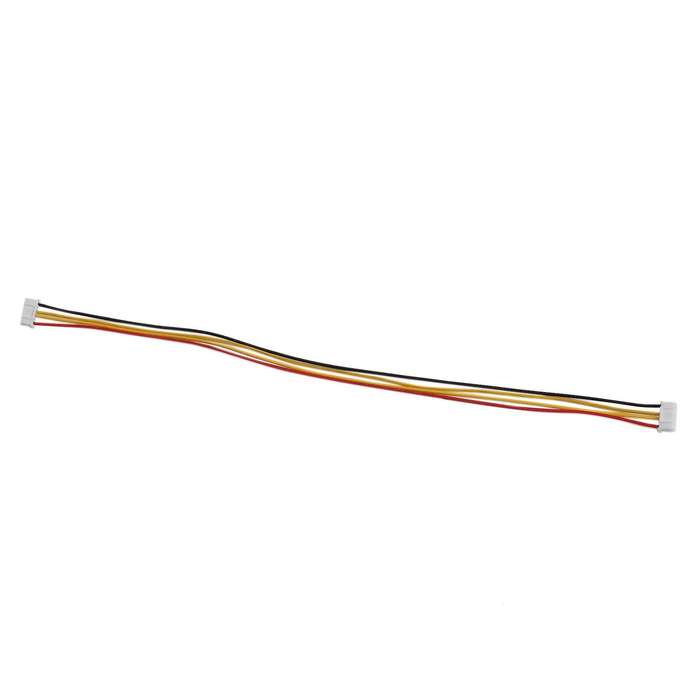

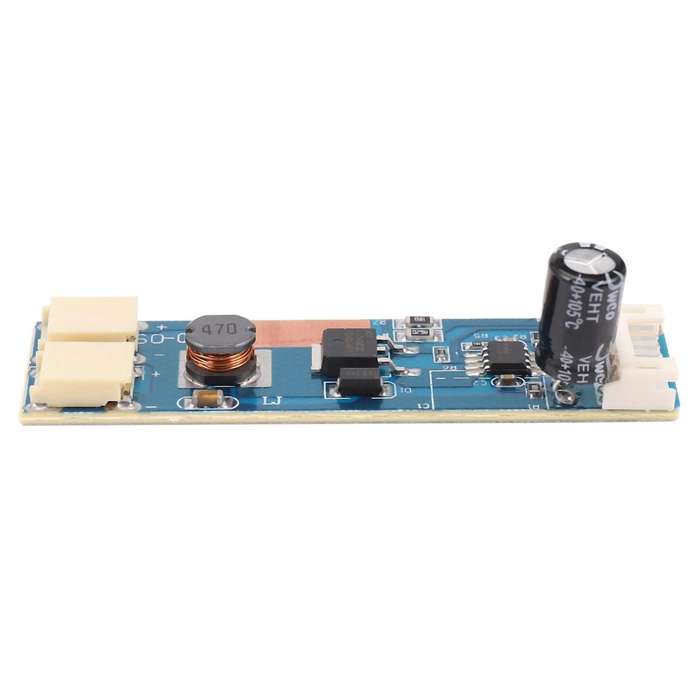

With a new imported lamp beads, better brightness, color temperature correction.The new program LED constant current step-up board, supports 12-30V wide voltage input.3 1 groups are free to crop 15-24 inch universal versatile.Adjustable brightness.Driver board size:7x2cmInput:DC 12-30VLED strip size:355x4mmColour:blueMaterial:Fiberglass panelsInstallation:If your monitor is using a inverter, then this kit replace the inveter to plug into the driver board ;If your monitor is a high-voltage integrated power supply board, then: the board energized, find 12V (capacitance),and then unplug the power supply,use a multimeter to find and 12V (capacitance) Disconnect original connectingthe negative terminal, the board received three line: 12V, ON, GND, the 12v of the inverter connect with 12v positiveelectrode of hign-voltage intergrated power supply board,GND is connected with the negative electrode, ON connectwith the ON / OFF. In simple terms, tThe original high voltage power supply is disconnected,instead of the inverter,In the original high-pressure front to take power.Package Include:6x LED strip3x Driver board3x cableOnly the above package content, other products are not included.Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
