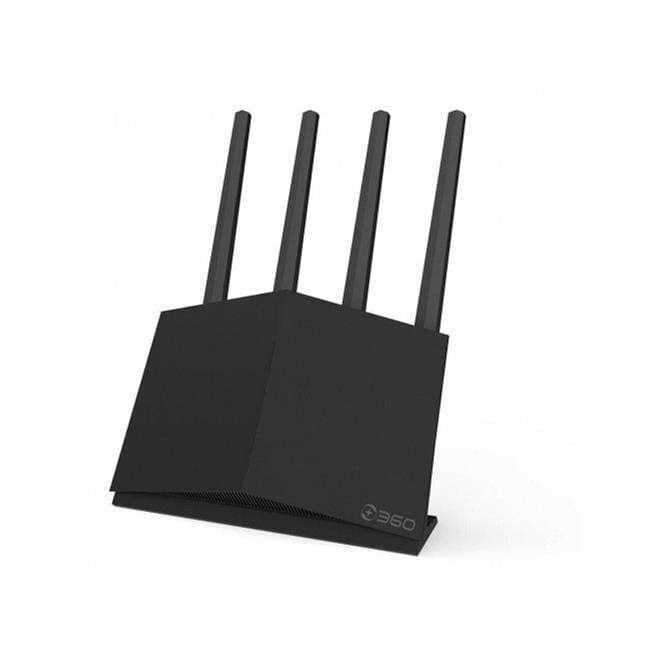

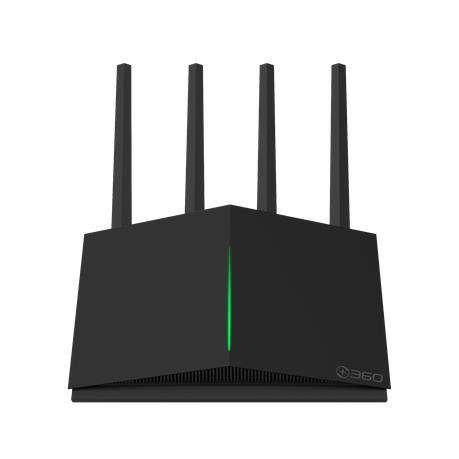

360 Smart Network 360 R5S AC1200 Wireless Dual Band Gigabit Router
The Botslab 360 R5S AC1200 Wireless Dual Band Fast Ethernet Router R5S creates a reliable, blazing-fast network using powerful 802.11ac technology. Now you can enjoy streaming HD video and lag-free online gaming on the clear 5GHz band while using the 2.4GHz band for everyday tasks such as checking email and web browsing.
With three built-in gigabit Ethernet ports, our R5S can provide fast, stable connections to all of your favourite wired devices, including game consoles, smart TVs, DVRs, and more.
AC1200 Dual Band
- Dual -Core CPU
- Vertical design
- Four High Performance Antennas
- Supports 802.11ac standard
- Simultaneous 2.4GHz 300Mbps and 5GHz 867Mbps connections for 1167Mbps of total available bandwidth
- Lightning-Fast wired connections using our Full Gigabit Ports
- Supports MU-MIMO and beamforming for better user experience
- Dual-core CPU and 128MB Memory
- Dual core 880Mhz CPY provides powerful performance, high and stable speed.
- 128MB DDR3 memory supports concurrent connection for multiple devices.
AC1200 Dual Band and Gigabit Ports
Support both 2.4Ghz and 5Ghz bands with a wireless speed up to 1167Mbps, which is 3X faster than Wireless N. 2.4Ghz highlights high wall penetration performance and wide coverage. 5Ghz highlights low interference and high speed features, and all home devices can access the Internet smoothly.
Gigabit Ports
Four high-performance antennas to achieve stable and full signal coverage
Four external high-performance antennas provide stable and wide signal coverage. Wi-fi signal strength is powerful everywhere.
Leveraging the MU-MIMO technology to allow connection of multiple devices at the same time
Doubled quantity of data transmission channels, providing a pleasant Wi-Fi experience when downloading, live broadcasting and gaming simultaneously.
With MU-MIMO technology, transmission with multiple devices concurrently.
Beamforming technology pushes strong signals in a centralized manner
Intelligently identify and locate long-distance networked devices, directionally enhance Wi-Fi signals, and provide a great Internet experience even at long distances.
Blind-mate network connectors support fast and easy configuration
Fast setup by inserting the cable, following the Step-by-step guide and clicking Next as prompted, without differentiating the network connectors.
Various intelligent functions to master the home network
Provide intelligent functions such as parental control, guest network and networked device management, so as to easily manage home Wi-Fi network.
Vertical design in structure, featuring both perfect appearance and function
The geometric shield shape naturally fits itself into the home environment. vertical design, with high-density convection vents, ensures efficient heat dissipation and stable and smooth routing.
Specifications:
- CPU & Wireless : MT7621DA+MT7603E+MT7613B
- Flash : 16MB
- RAM : 128MB
- PCB Layers : 2
Interface :
- 1 x 10/100/1000Mbps WAN Port
- 2 x 10/100/1000Mbps LAN Ports
Dimensions (WxDxH):
LED:
- Indicators : System
- Colour : Green, Orange and Red
- Antenna Gain : 2.4-2.5GHz (5dBi) x 2, 5.15-5.85GHz (5dBi) x 2
- Orientation : Omni-directional
- Fixed or Detachable : 4 Fixed Antennas
Power Supply Unit :
- Original PSU : Switching PSU
- Power input : 100 -240V / 50 -60Hz
- Power Output : 12VDC/1A
Wireless Parameters:
- Wireless Mode : 2.4G: 11b/g/n, 5G: a/ac
- Frequency Band : 5GHz: Band1(CH36, 40, 44, 48), 2.4GHz: CH1~CH13
- Extend Frequency : DSSS
- Modulation Type : DBPSK, DQPSK, QPSK, CCK and OFDM (BPSK/QPSK/16-QAM/ 64-QAM)
- Data Transmission Rates : 300Mbps(2.4GHz), 867Mbps(5GHz)
- RF Power : Follow CE: Wireless Security : 64/128-bit WEP,WPA / WPA2,WPA-PSK/WPA2-PSK encryption
- Wireless Operation Mode : Wireless Routers
- Default Manage Mode : Web management. 192.168.10.1
- DHCP assign : DHCP server enabled: 192.168.10.1/255.255.255.0 , DNS Server : Optional
- Wireless Operation Mode : Wireless Router
- Wireless Radio : Enabled
- Channel : Auto
Software :
- Support MU-MIMO and beamforming
- Support full EWAN port
- Port Forwarding
- Access Control : Parental Control, Local Management Control, Host list, Access Schedule
- Firewall Security : DDoS, SPI Firewall (web Certificate), IP and MAC Address Binding
- Protocols : Ipv4
- Management Access : Access Control, Local Management
- Guest Network
- Access Internet : Dynamic IP, Static IP, PPPoE, L2TP, PPTP
- Wireless Security : Provides WPA/WPA2 and WPA-PSK/WPA2-PSK authentication and TKIP/AES encryption security
- Provides 64/128-bit WEP encryption security and wireless LAN ACL (Access Control List)
- Safety, Emission and others : CE
Protocols and Standards
- IEEE Standards : 802.11ac, 802.11n, 802.11g, 802.11b, 802.11a, 802.3, 802.3u, 802.3ab, 802.1x, 802.11e, 802.11i, 802.3x
- Others Protocols and Standards : CSMA/CA, CSMA/CD, TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, IPv4
Environment:
- Operating Temperatures : 0?~40? (32?~104?)
- Storage Temperature : -40?~70? (-40?~158?)
- Operating Humidity : 10%~90% non-condensing
- Storage Humidity : 5%~90% non-condensing
What's in the box:
- 1 x RS5 Router
- 1 x Power Adapther
- 1 x Quick Installation Guide
- 1 x Stand Base for Housing
- 1 x 1 Meter CAT5 RJ45 Cable
