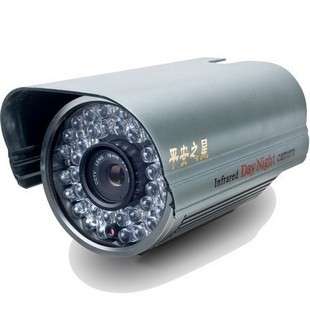

36led HD SONY CCD IR security camera (Star of peace J103)
main parameter
Model: J103
Image Sensor: SONY 1 / 3 "CCD
Effective Pixels PAL: 500 H) x582 (V), NTSC: 510 (H) x492 (V)
Signal System: PAL / NTSC
Horizontal Resolution: 420 TVL
Infrared light quantity / size: 36 pcs / Φ8
IR view distance: 30-50m (depending on lens)
Waterproof: IP 66
Minimum illumination: 0 Lux / F1.2
Automatic Gain Control: Auto
Backlight Compensation:Auto
white balance:Auto
Electronic Shutter: 1 / 50 (1 / 60) ~ 1 / 100, 000 sec
SNR: > 48 dB
Gamma Correction: > 0.45 (AGC OFF)
Video Output: 1.0Vp-p / 75Ω
synchronization system:Internal
lens: Default 8mm
Operating temperature:-100C ~ 500C, 140F ~ 1220F
Power Consumption: DC 12V, <350mA
Optional lens: 4/6/8/12/16MM, prices remain unchanged
Image Sensor: SONY 1 / 3 "CCD
Effective Pixels PAL: 500 H) x582 (V), NTSC: 510 (H) x492 (V)
Signal System: PAL / NTSC
Horizontal Resolution: 420 TVL
Infrared light quantity / size: 36 pcs / Φ8
IR view distance: 30-50m (depending on lens)
Waterproof: IP 66
Minimum illumination: 0 Lux / F1.2
Automatic Gain Control: Auto
Backlight Compensation:Auto
white balance:Auto
Electronic Shutter: 1 / 50 (1 / 60) ~ 1 / 100, 000 sec
SNR: > 48 dB
Gamma Correction: > 0.45 (AGC OFF)
Video Output: 1.0Vp-p / 75Ω
synchronization system:Internal
lens: Default 8mm
Operating temperature:-100C ~ 500C, 140F ~ 1220F
Power Consumption: DC 12V, <350mA
Optional lens: 4/6/8/12/16MM, prices remain unchanged
Angle table:
| Lens focal length (mm) | 1/3"ccd Shooting angle | 1/4"ccd Shooting angle |
| 2.5mm | 96.4° | 81.9° |
| 2.8mm | 89.9° | 75.6° |
| 3.6mm | 75.7° | 62.2° |
| 4mm | 69.9° | 57° |
| 6mm | 50° | 39.8° |
| 8mm | 38.5° | 30.4° |
| 12mm | 26.2° | 20.5° |
| 16mm | 19.8° | 15.4° |
| 30mm | 10.6° | 8.3° |
| 60mm | 5.3° | 4.1° |
| 100mm | 3.2° | 2.5° |
| 200mm | 1.6° | 1.2° |
Package Contents
36led HD SONY CCD IR security camera (Star of peace J103)
Power Adapter (100-240V, 50/60Hz)
Mounting Bracket
Installation Tools
BNC Video Cable
Manual - English
