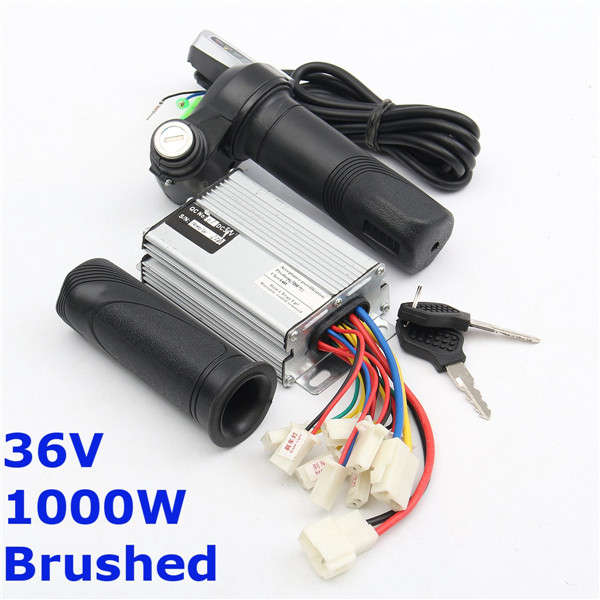

36V 1000W Motorcycle Controller Brushed+Throttle Twist Grips Electric Bike Scooter
New
Indicative market price: R931.97
R690.35
26% OFF
Closed
22 Mar 18 02:28
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 3 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
International
Product code
1104578[ALL]
Bob Shop ID
327194579
Description:

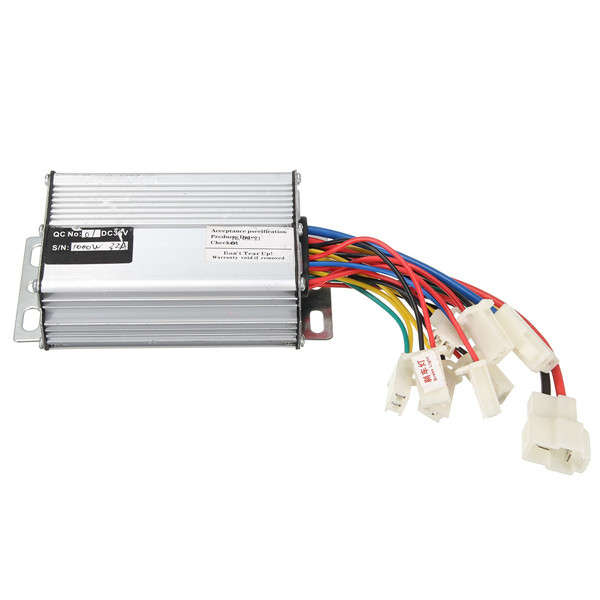

36V motor brushed controller:
Motor brush controller for Electric bicycle & scooter
Fits standard 7/8 inches(22.2mm) handle bars
Cable length is approximately 59 inches (1.5m)
Specification:
Material: Plastic
Color: As shown
Rated Voltage: DC 36 v
Current Limit : 32A
Rated Power: 1000 W
Under Voltage Protection: 31.5V
Matching Motor: DC brushed motor

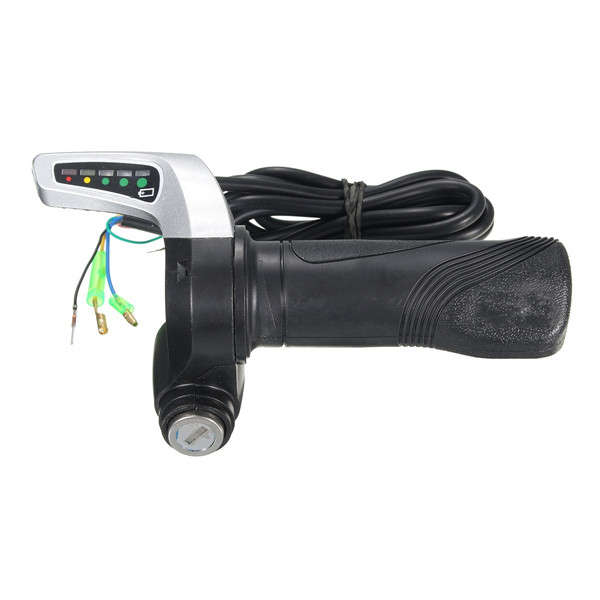

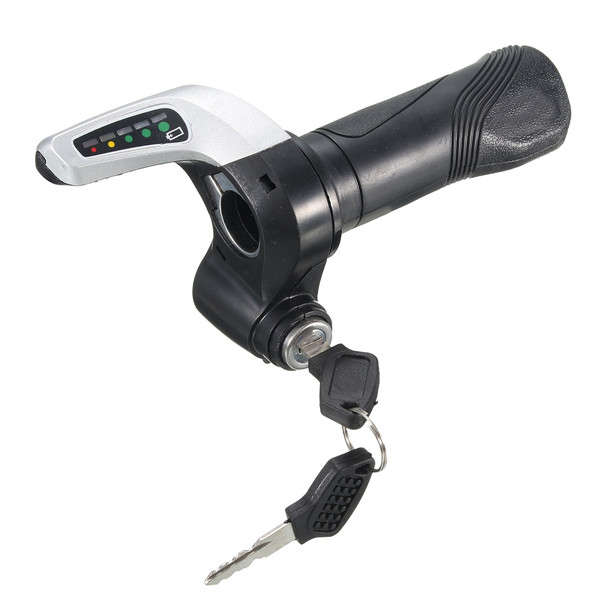

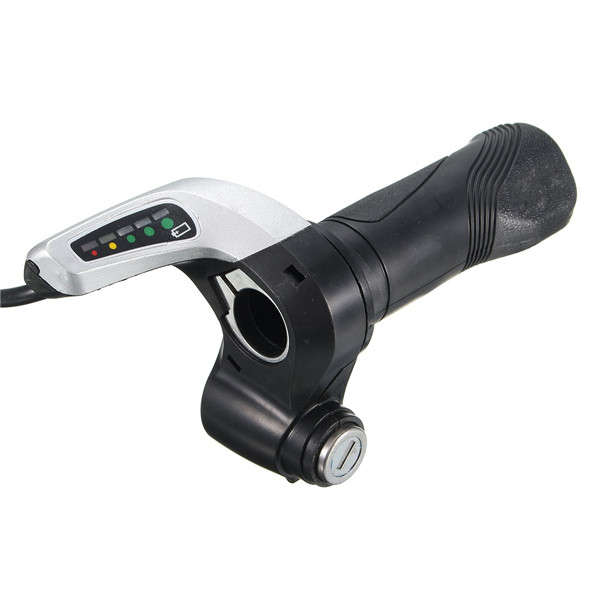

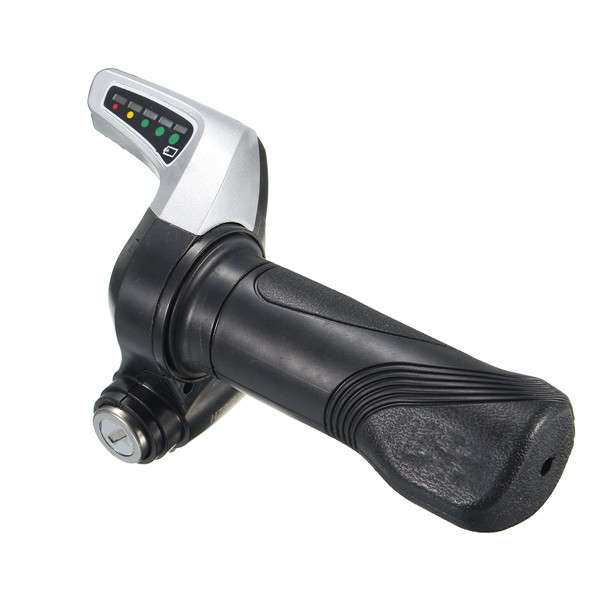

DC36V Throttle Twist Grips:
Electric bike scooter twist throttle accelerator with power display, 5Led battery indicator.
Throttle Works Voltage: DC5V
Speed Adjusting Signal: 0.8V-4.3V
Power Display Voltage: DC 36V

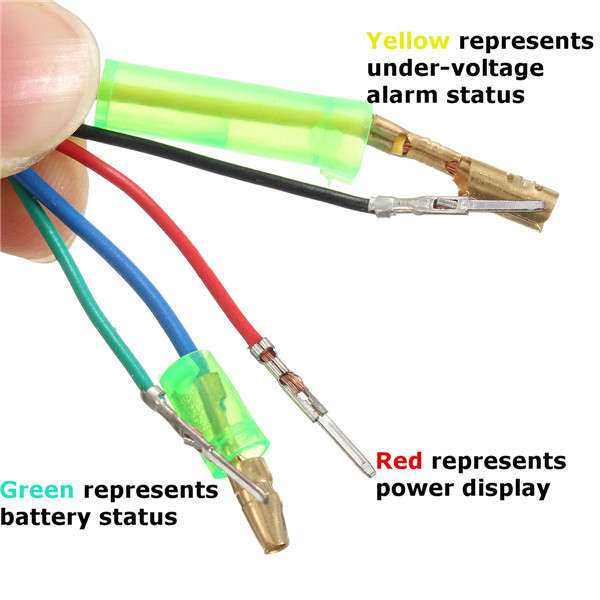

Power Display:
Normal: 35V above, 3 Led Green
Half: 35V ~ 32V, Led Yellow
Empty: 32V or less, Led Red
Rotation Angle: 0 °~ 70 °
Working Temperature: -20 ~ +50

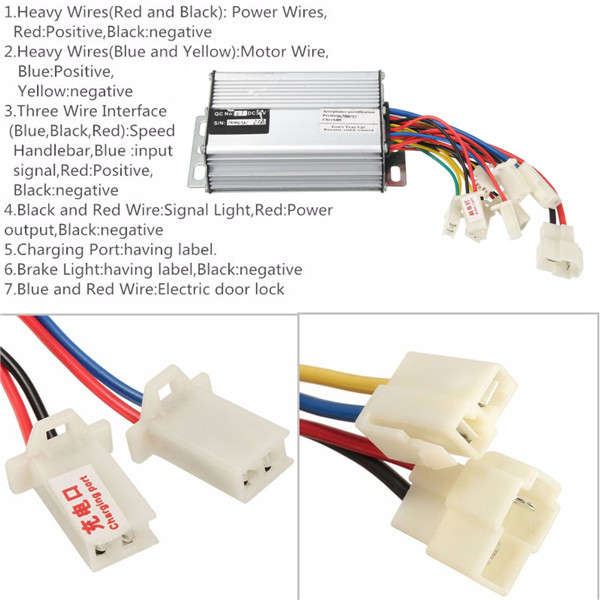

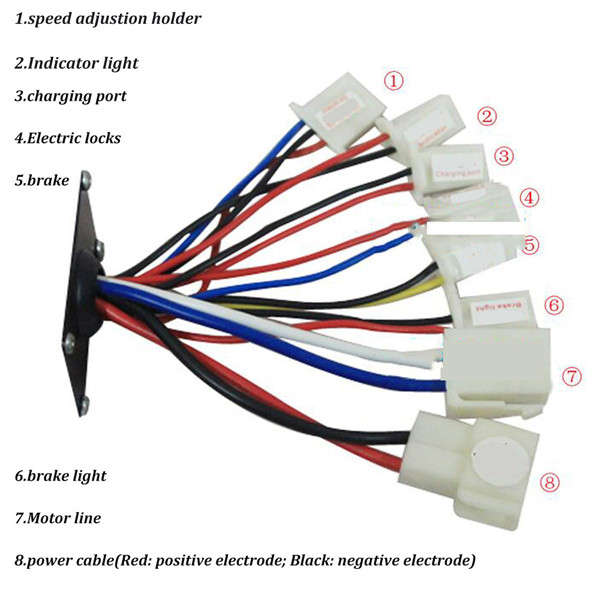

Controller Wires Interface Definition:
Battery : Thick black (power negative) /thick red (power positive)
Motor : Thick yellow (motor negative) /thick blue (motor positive)
Ignition Switch : Thin red(VCC)/thin blue
Indicator : Thin red (indicator power output) /thin black (indicator negative)
Brake : Thin yellow (brake signal)/thin black(negative power)
Speed Governor : Thin blue(speed handlebar signal input) /thin black (negtive power) /thin red(5V positive power)
Charge Port : Thin red (charge input power positive) /thin black (power negative)
Brake Light: Thin red (power positive) /thin black (power negative)
Sport: Thin yellow /thin green(speed limit, connected the wires together)

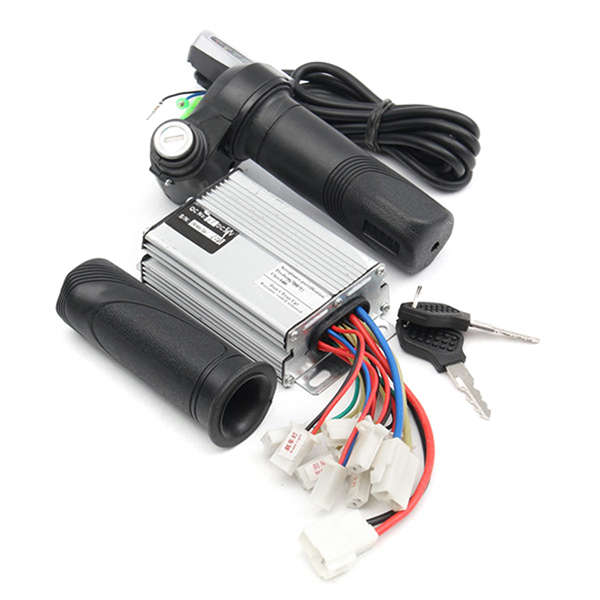

Package Included:

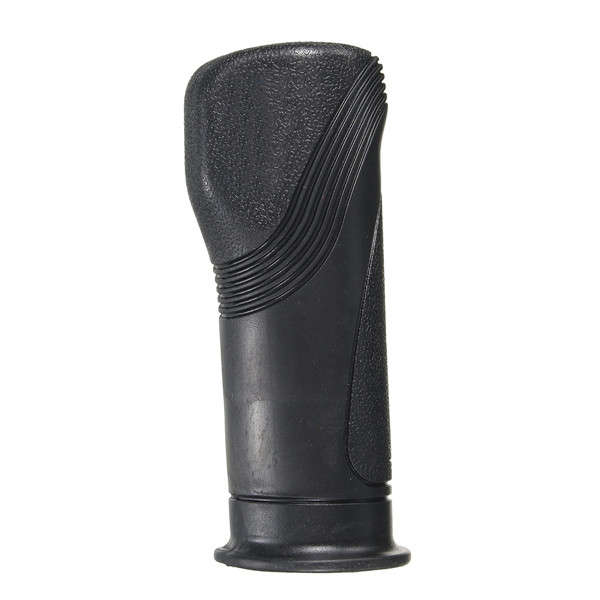

1 X 36V Throttle Grip With Normal Grip
1 X 36V 1000W Controller
1 X Black Terminal Ends
