Warning
This controller is thereplacementparts forand,if you don`t haveID: 1647907 or ID: 1679291 ,you should not buy it
OR you can buy ID:1740476

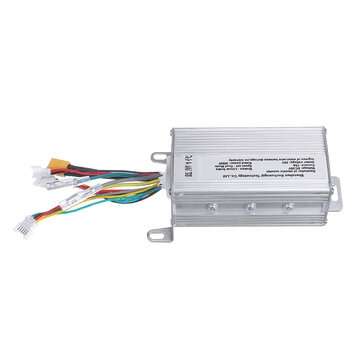

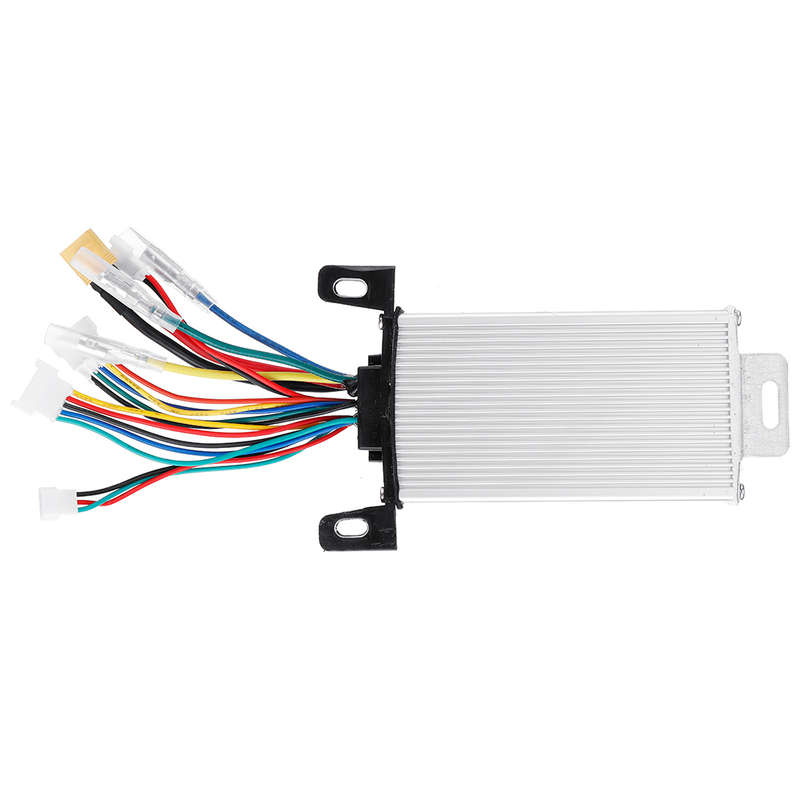

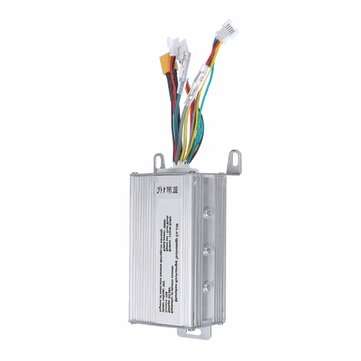

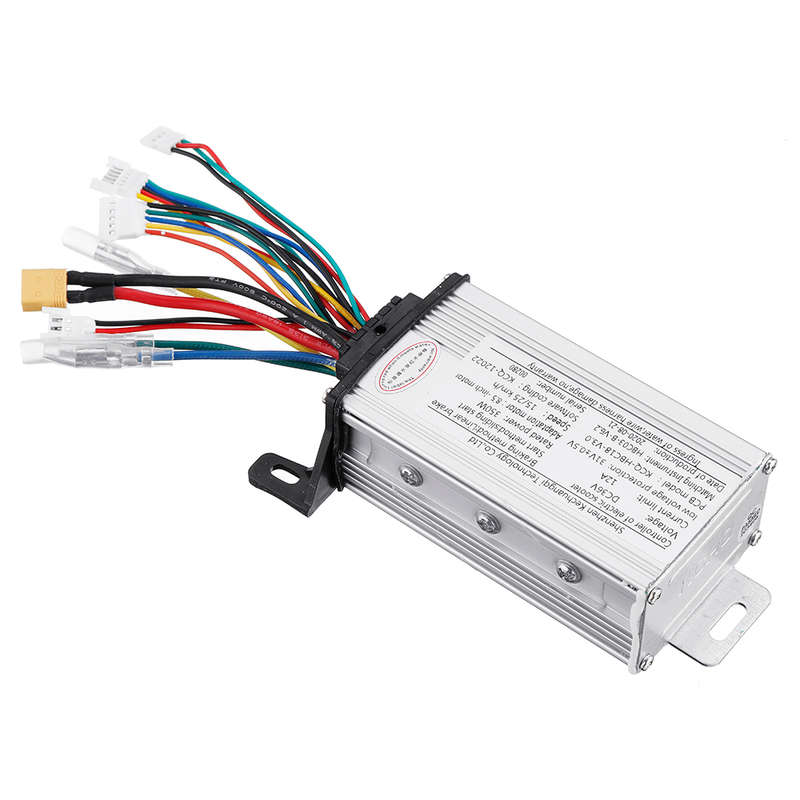

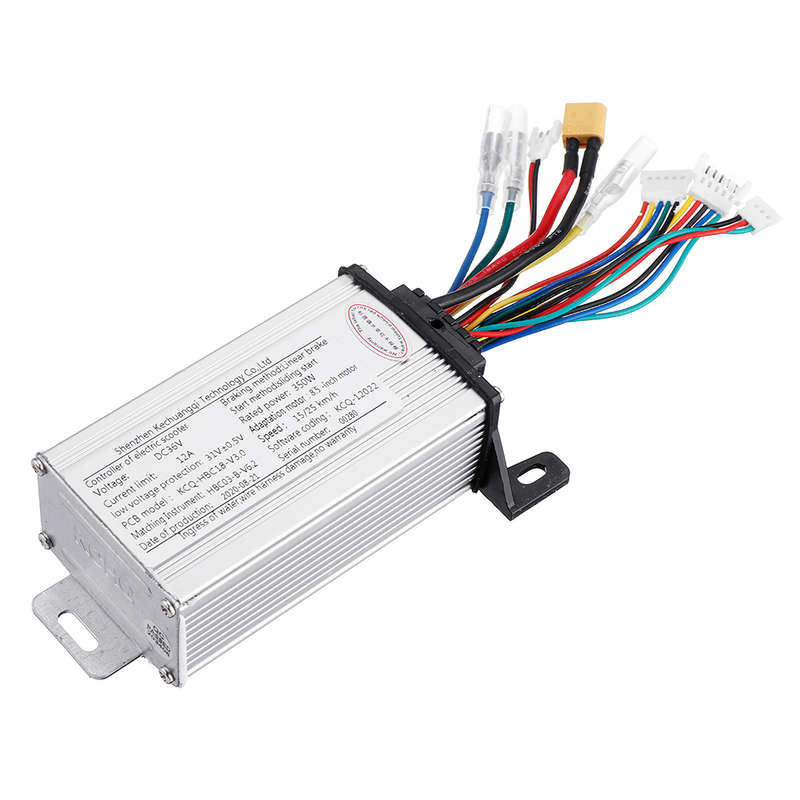

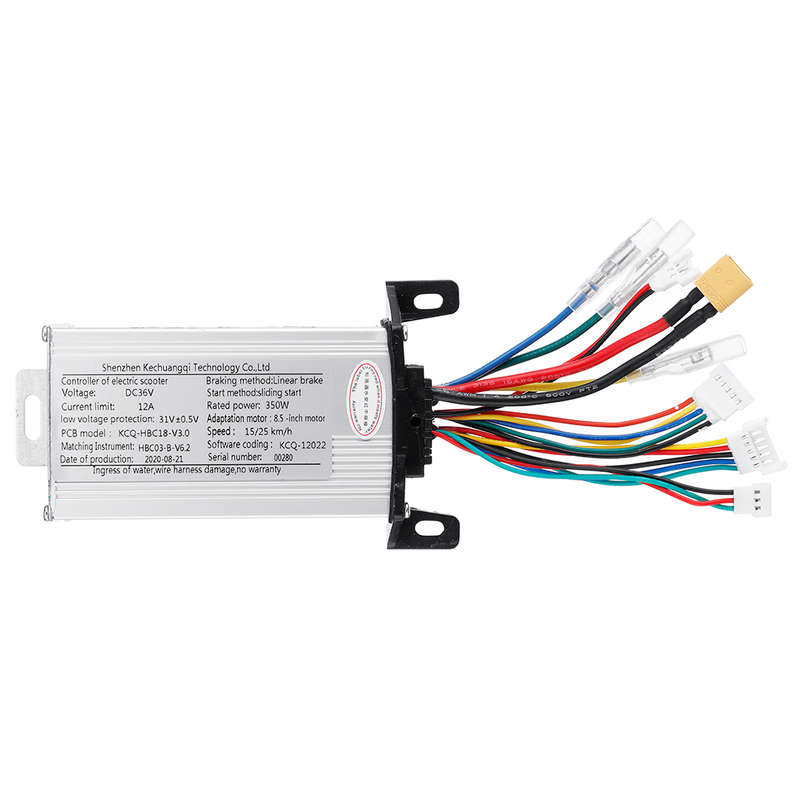

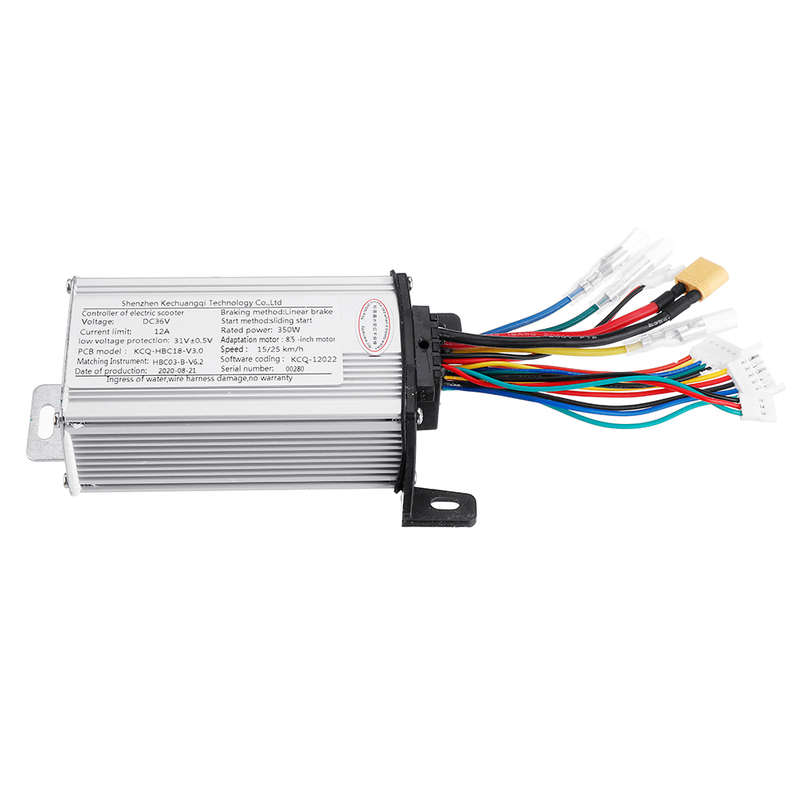

Specification:
Voltage
| DC 36V
|
Rated Power
| 350W
|
Undervoltage
| 30V
|
Current-Limiting
| 12A 15A scooter could be used,but the speed would be slowly
|
Instruction:
1. Boot: Long press the boot (about 1s). At the same time, the buzzer sounds twice.
2. Shutdown: Press and hold 3s to shut down. At the same time, the buzzer sounds twice.
3. Light: In the power-on state, short press (within 1 second) once, turn on the front and rear lights,
the headlights are always on, and the taillights are flashing.
4. Brake: Electronic brake + disc brakes. The tail light is long on the brakes.
5. Gear shift: The power-on state, the default is the low-speed file;
press the button twice (press twice in one second) to switch the gear position; Green is low gear; red is high gear
6. Battery display: 33v-36v The first light is long
36v-37v one or two lights long bright
37v-38.5v one or two lights long bright
38.5v or more, one, two, three, four lights
Low voltage alarm: The first light flashes when the battery is below 33V, and the buzzer sounds 6 times.
7. Low voltage alarm speed mode: The speed limit is about 15Km/h. When the power returns to 37V,
the throttle must return to the initial position to release the low voltage and return to normal operation.
8. Constant speed cruise: The speed is stable for about 6 seconds to automatically start the cruise control;
after the cruise is fixed, the throttle can be released; press the brake
or push the throttle again to release the cruise control and enter the manual mode.
9. Speed: The low speed gear is 15±2km/h; the high speed gear is 25±2km/h.
10.Automatic shutdown: Automatically shut down 10 minutes after no operation.
Power Display:
1) Voltage 38.2V-42V The first second third fourth fifth lights are always on
2) Voltage 36.6V-38.2V The first second third fourth light is always on
3) Voltage 34.5V-36.6V The first second third lights are always on
4) Voltage 32.8V-34.5V The first second light is always on
5) Voltage 31.5V-32.8V The first light is always on
6) Voltage 30-31.5V The last grid flashes
7) Turn-off of motor with voltage below 31V
Error Code:
1) E1 Motor Hall failure
2) E2 MOS
MOS fault or motor phase line short circuit fault
3) E3 Brake failure
4) E4 Handlebar failure
5) E5 Undervoltage protection
6) E6 Instrument/control communication failure
7) E7 Overvoltage protection
8) E8 Controller op amp failure
9) E9 Stall protection

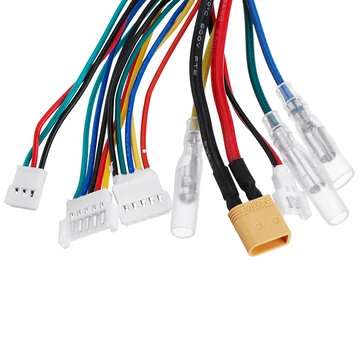

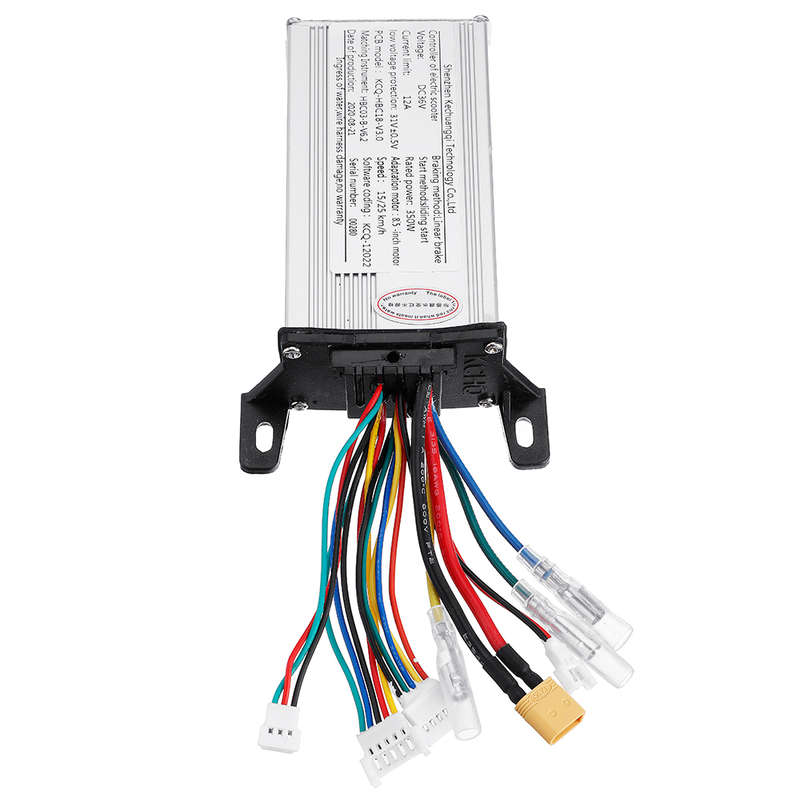

Wiring Port Diagram:
Power cord: big black red line
Motor wire: blue wire/green wire/yellow wire
Hall wire: red wire/yellow wire/blue wire/green wire/black wire
Tail light wire: small red wire and black wire
Software Burning line: green line/red line/black line
Communication line: green line/blue line/black line/red line/yellow line
