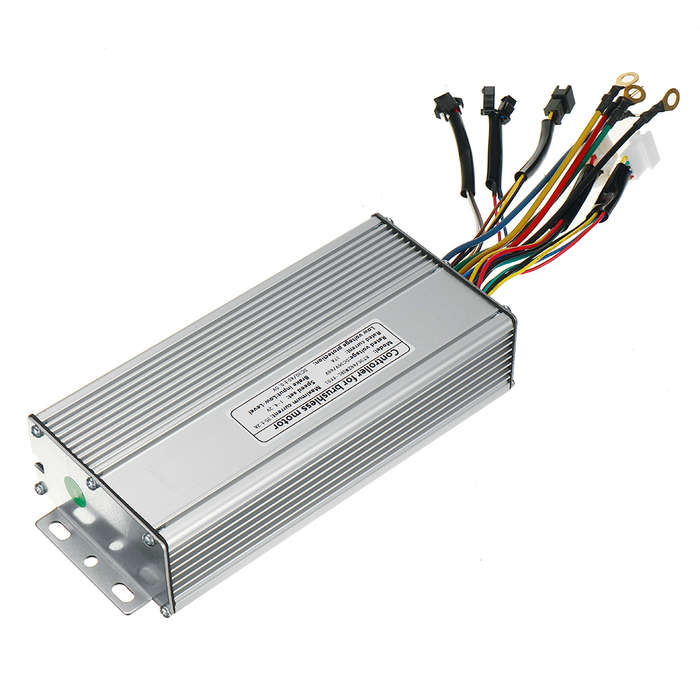

36V/48V 35A 1000W/1500W Electric Scooter Brushless Bicycle Standard Square Wave Controller Regular C

New

20 available

R1,443.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou4023

92.44 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

654082545

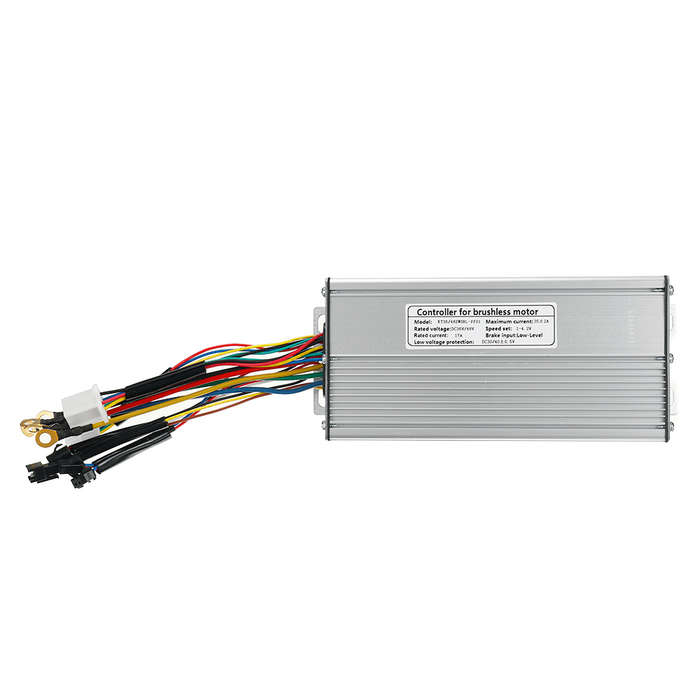

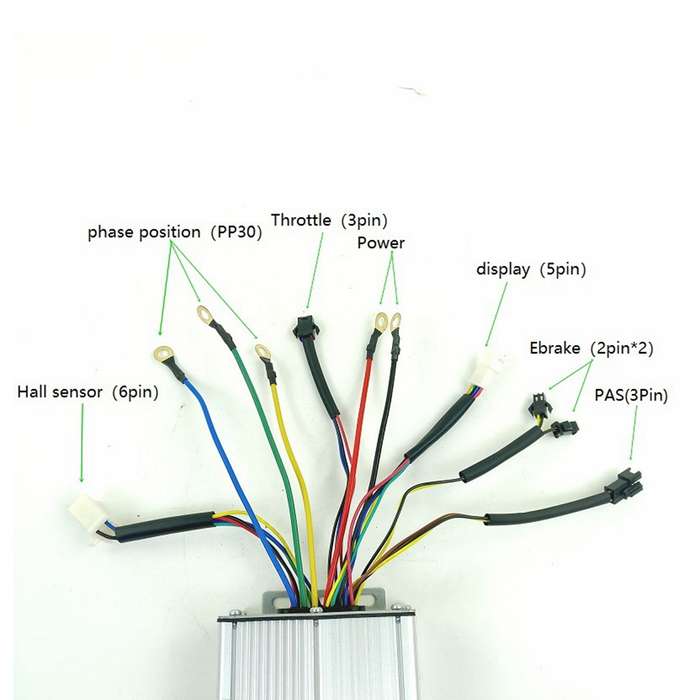

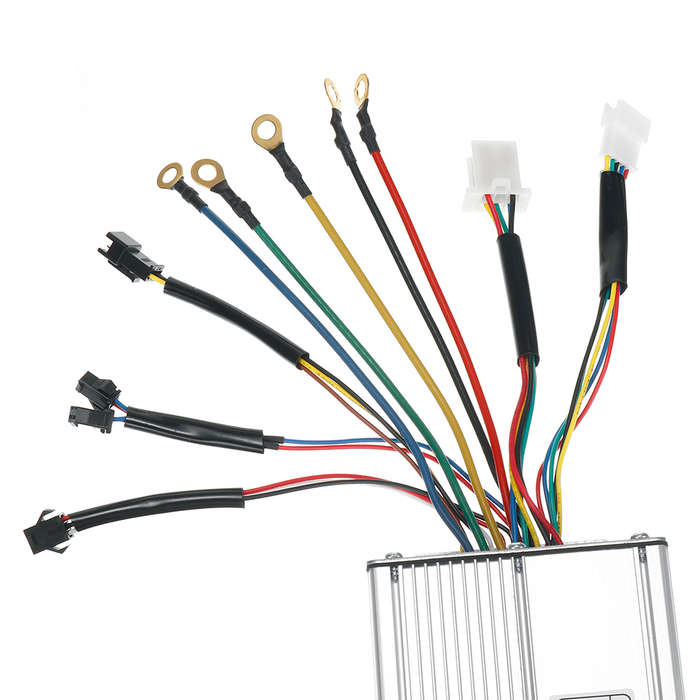

Specification: Controller dimension: About 19*8*4 cm weight: 550g cable length :all about 15cm 12 mosfets Maximum current: 35&pm;1A Rated voltage: DC36V/48V Speed set: 1-4.2V Rated current: 18A Brake input : Low-Level Low voltage protection: DC40&pm;0.5V aFUNCTION & PLUG all bullet motor (3-green-yellow-blue bullet + 6pin SM plug ) power (red-black bullet plug) display (5 pin SM plug) throttle (3pin SM plug) ebrake (3pin SM plug ) *2 PAS (3pin SM plug) 1T4 cable plug(8pin waterproof plug-Throttle-Display-Ebrake*2) PAS (3pin waterproof plug)
Note: KT controller just only compatible with KT display(same communication protocol) .
Please make sure that your system is KT system.
Waterproof connector is special that I can't promise you it can 100% compatible(because of the line sequance).
But most can use it if you check carefully.
Please check your motor cable if it is Julet or Higo 9pin waterproof plug(there is some letters on the connector ).
Julet is better.But for 250W 350W 500W.Higo is also OK. Pakcage Included: 1 X Controller
