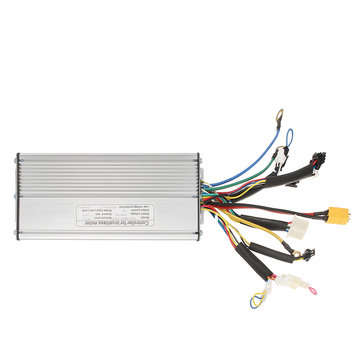

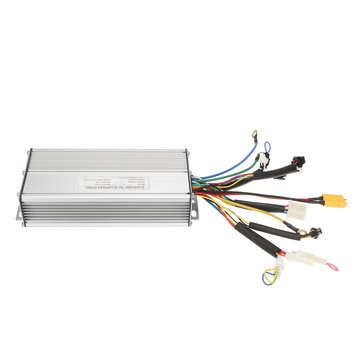

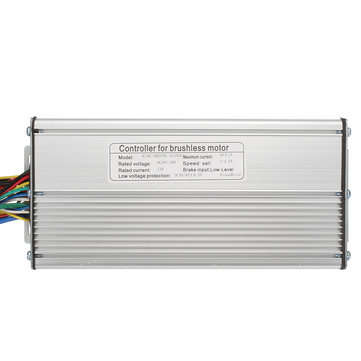

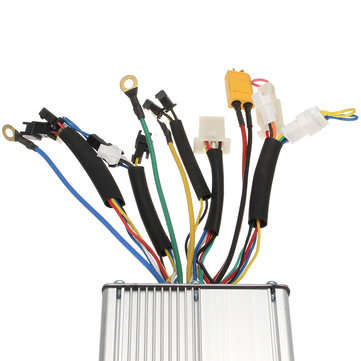

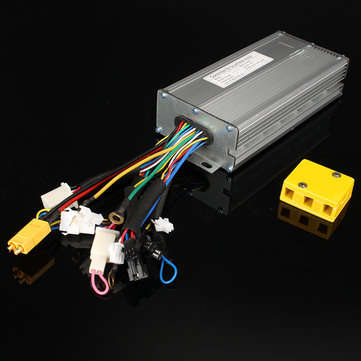

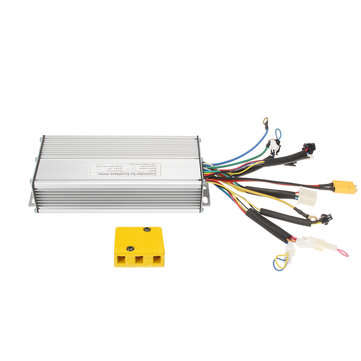

36V/48V 500W/700W Electric Bicycle E-bike Scooter Brushless DC Motor Controller

Description: 1. Use a?wave?sine control, the motor torque ripple is minimized to achieve no noise, no vibration, smooth and comfortable of driving vehicle; 2. Increase the low speed district of motor torque to meet the high torque requirements of the vehicle during its start-up and climbing,
improving climbing performance, zero start-up is available; 3. Improve the operating efficiency of the motor; reduce the controller temperature-rise, increasing the vehicle continuous mileage; 4. With a multi-protection functions such as the stall, over-current, over-temperature, under-voltage, speed driving, phase shortage,

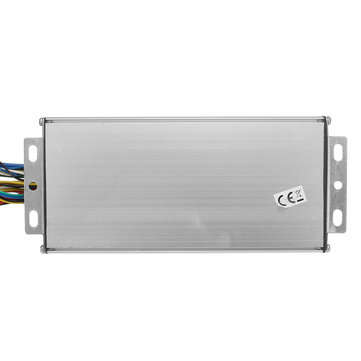

output short circuit etc., so as to protect the vehicle electronic control systems and traffic safety; 5. It can be customized for all types of controllers for users. ? Specification: Main technical parameters: Rated voltage: DC36 or 48V; Rated current: 13&pm;1A; Maximum current: 26A&pm;1A; Min. Voltage & Under-voltage protection: DC30V/40&pm;0.5V Rated power: 468/624W; Maximum power: 936/1248W; Applications: Max. 36V/48V 500W or 36V/48V 750W Motor MOSFET: 12 pcs MOSFET Static power consumption: <50mA; Driving mode: sine wave Waterproof: basic protection of water washout IP64 Electromagnetic compatibility : outgoing lines can be added with the jacketed ring for interference protection Lights drive: Optional headlight control and instrument headlight indicator Housing holder: both ends are with the ears Housing color: aluminum natural or black Product certification: CE certification  Dimensions: 173x82x42mm ? Package Included: 1 X Brushless DC Motor Controller
