36V 800W Electric Scooter Bicycle E-bike Brush DC Motor Speed Controller

Name: 36V 800W Electric Scooter Bicycle E-bike Brush DC Motor Speed Controller
SKU: 1109997
Price: 546.57 ZAR
Availability: SoldOut

New

30 were available

Indicative market price: R999.00

R546.57

45% off

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Racer Gadgets10211

99.58 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Product details

Condition

New

Location

International

Product code

1109997

Bob Shop ID

502110505

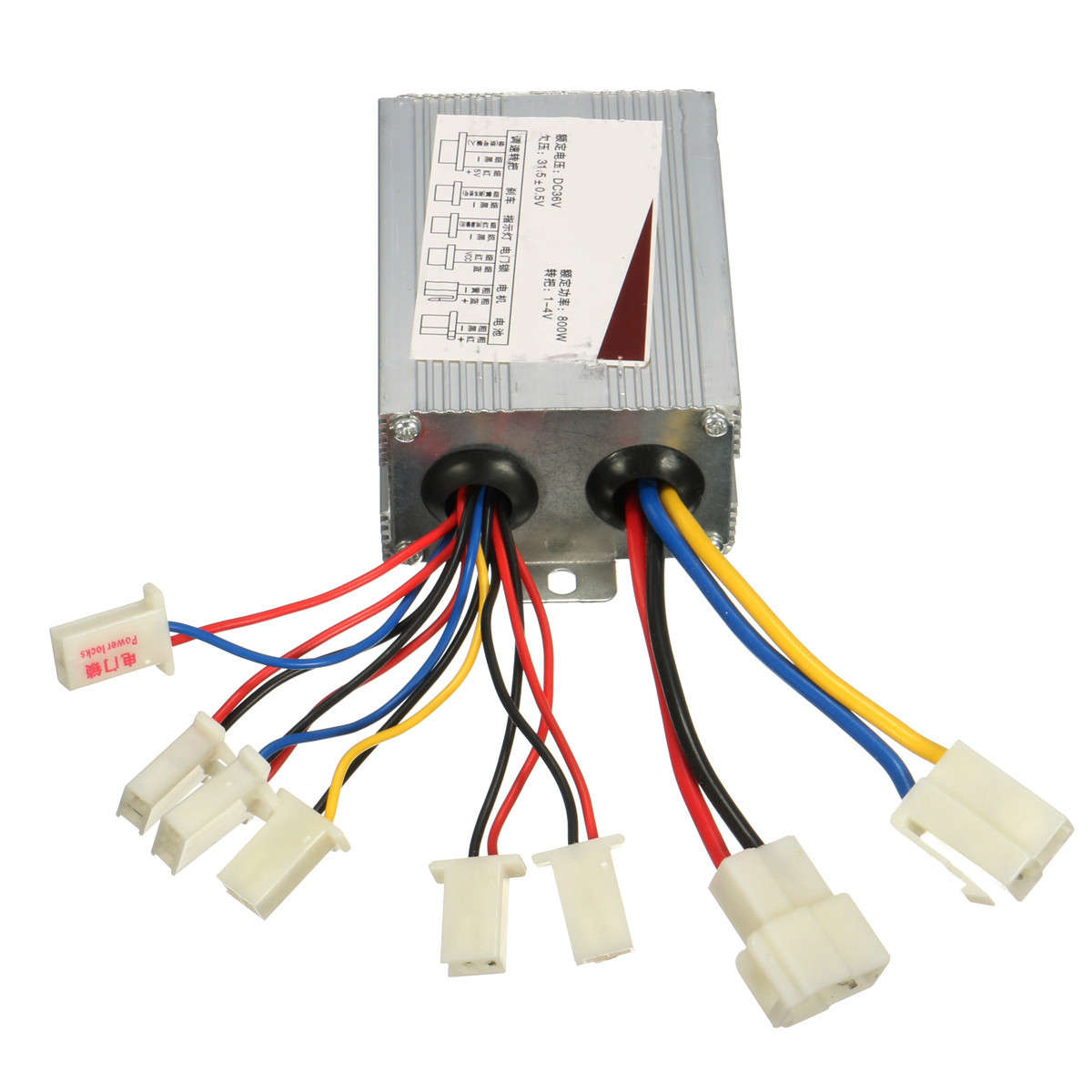

36V 800W Electric Scooter Bicycle E-bike Brush DC Motor Speed Controller

Package weight: 0.19 kg
Description:
Fit for 500W-800W motor of electric tricycle.
High quality and long service life.
Easy to install.
Specification:
Model: 526643
Material: Aluminum

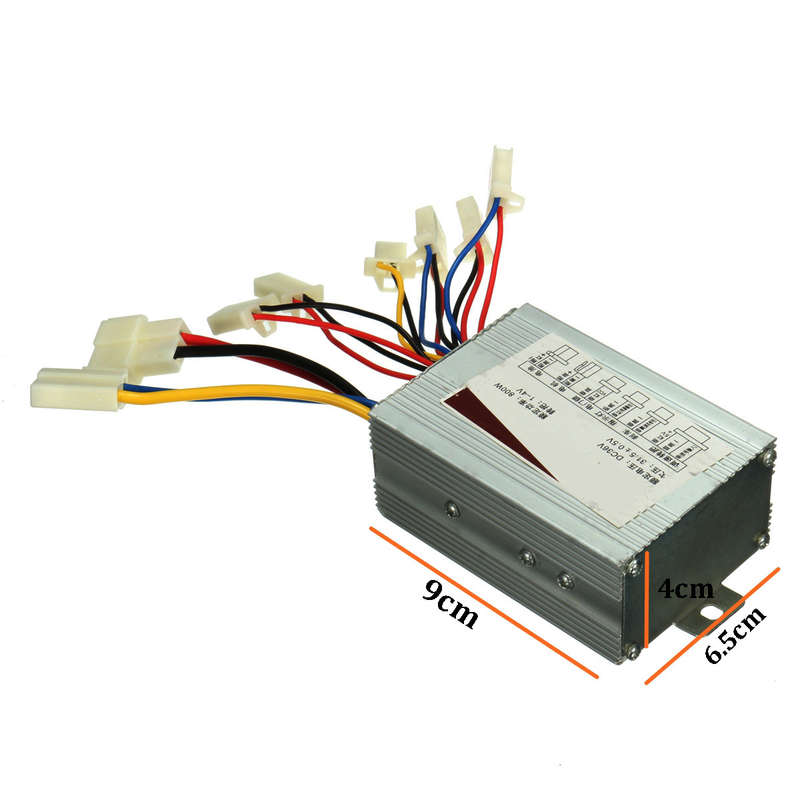

Size: 9cm x 6.5cm x 4cm
Power: 800W
Input: 36V
Undervoltage: 31.5 + -0.5V
Turning: Mechanical normally open
Applicable Motor: 500W-800W motor
Use of models: Electric tricycle
Controller Wiring Instruction:
wing Yun controller, for example,
in order to work at least the motor can be connected to at least four joints,
the first controller on the two thick blue and white lines connected to the motor.
The red line of the motor, the white line connected to the black line of the motor.
Followed by the controller of the two red and black lines connected to the battery,
the red line then the battery cathode, black line connected to the negative.
The third re-connected to the speed control to the joints,
speed control turn to have three lines, be sure the red line on the red line, black line on the black line phase.
Once again connected to the electric lock, open the electric door lock, turn the motor can run.
Product Included:
1 X Motor Speed Controller
