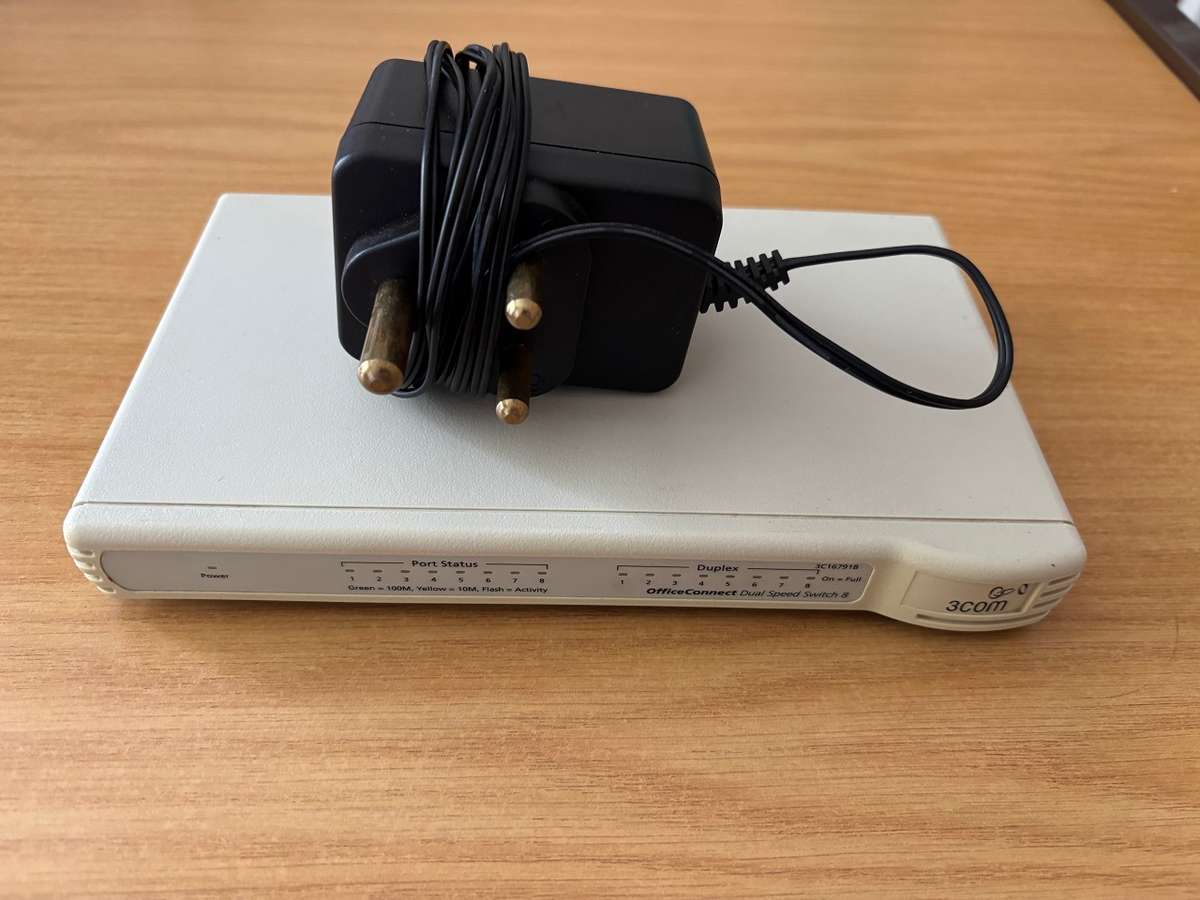

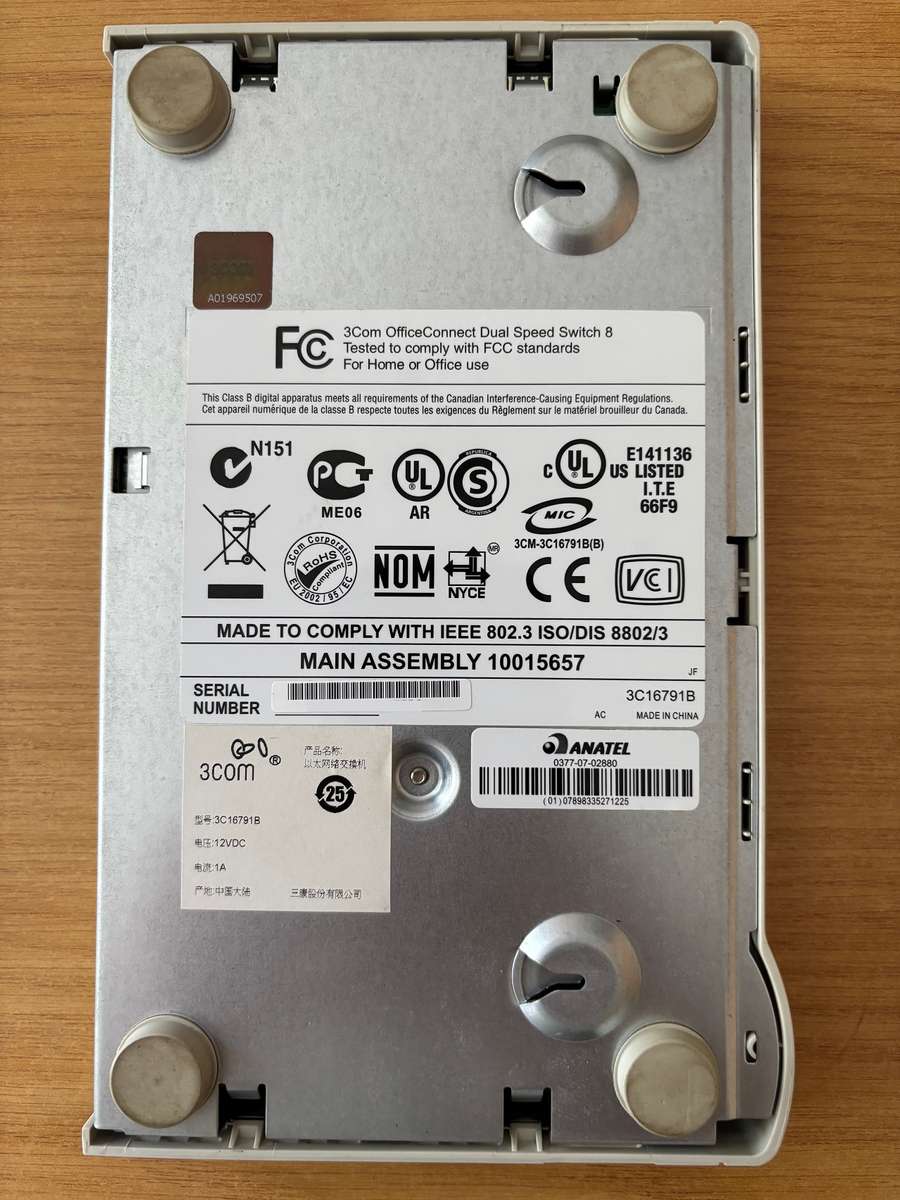

The 3Com 3C16791B OfficeConnect Dual Speed Switch 8 is a compact and reliable networking solution designed for small to medium-sized offices. Part of the 3Com OfficeConnect series, this switch offers fast and secure connectivity for various office devices, providing a straightforward solution for expanding network capacity without complicated configurations. It supports both 10/100 Mbps Ethernet speeds and is ideal for users who need a low-cost, high-performance switch for typical office environments.
Description:
The 3Com 3C16791B is an 8-port dual-speed Ethernet switch that delivers reliable network performance with auto-negotiation between 10 Mbps and 100 Mbps speeds. It is designed to simplify network setup and management, with plug-and-play functionality and no software installation required. The device supports high-speed connectivity for devices like computers, printers, servers, and IP cameras. This OfficeConnect Switch also features QoS (Quality of Service) for efficient traffic management, ensuring optimal performance for critical applications like VoIP and video conferencing. It is an ideal solution for growing businesses looking to expand their network without a significant investment in enterprise-level equipment.
Key Features:
Dual-Speed Ports: Each of the 8 ports automatically detects and adjusts to either 10/100 Mbps speeds, ensuring compatibility with both legacy devices and newer high-speed devices.
Auto-Negotiation: Ports automatically negotiate connection speeds for optimal performance and minimal user intervention.
Plug-and-Play: No configuration required for quick installation and ease of use.
Compact Design: A small, space-efficient form factor that fits easily on desktops or small network racks.
Quality of Service (QoS): Prioritizes network traffic to enhance performance for critical applications such as voice and video.
LED Indicators: Simple and intuitive status LEDs for each port to display connection status, speed, and activity.
Energy Efficient: The switch is designed with power-saving features to reduce energy consumption without sacrificing performance.
Reliability: Provides a stable and consistent network connection for office workstations, printers, and other networked devices.
IEEE 802.3x Flow Control: Helps avoid network congestion by controlling data flow, improving overall network efficiency.
Security: Supports basic security features to prevent unauthorized access.
Specifications:
Model Number: 3Com 3C16791B
Form Factor: Desktop or wall-mountable compact form factor
Ports:

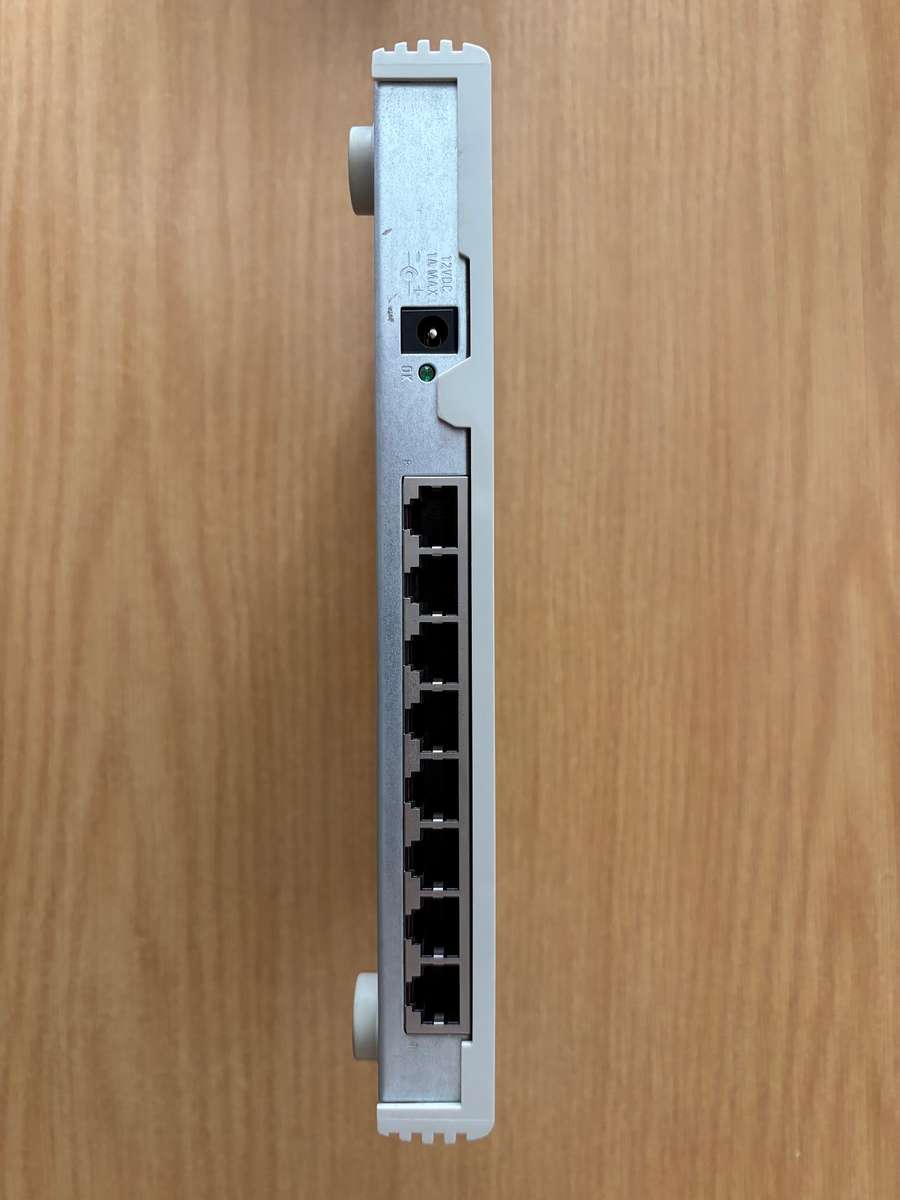

8 x 10/100 Mbps Ethernet Ports: Auto-negotiating between 10 Mbps and 100 Mbps speeds, with auto-MDI/MDI-X for easy connectivity to other network devices without the need for crossover cables.
Switching Capacity: 1.6 Gbps (gigabits per second)
Forwarding Rate: 1.19 million packets per second (mpps)
VLAN Support: Basic support for VLAN tagging, enabling network segmentation.
Quality of Service (QoS): Basic QoS to prioritize traffic based on packet types, ensuring that high-priority applications such as VoIP are handled with minimal latency.
Power Consumption: 6.5 Watts
Cooling: Fanless design for silent operation in office environments.

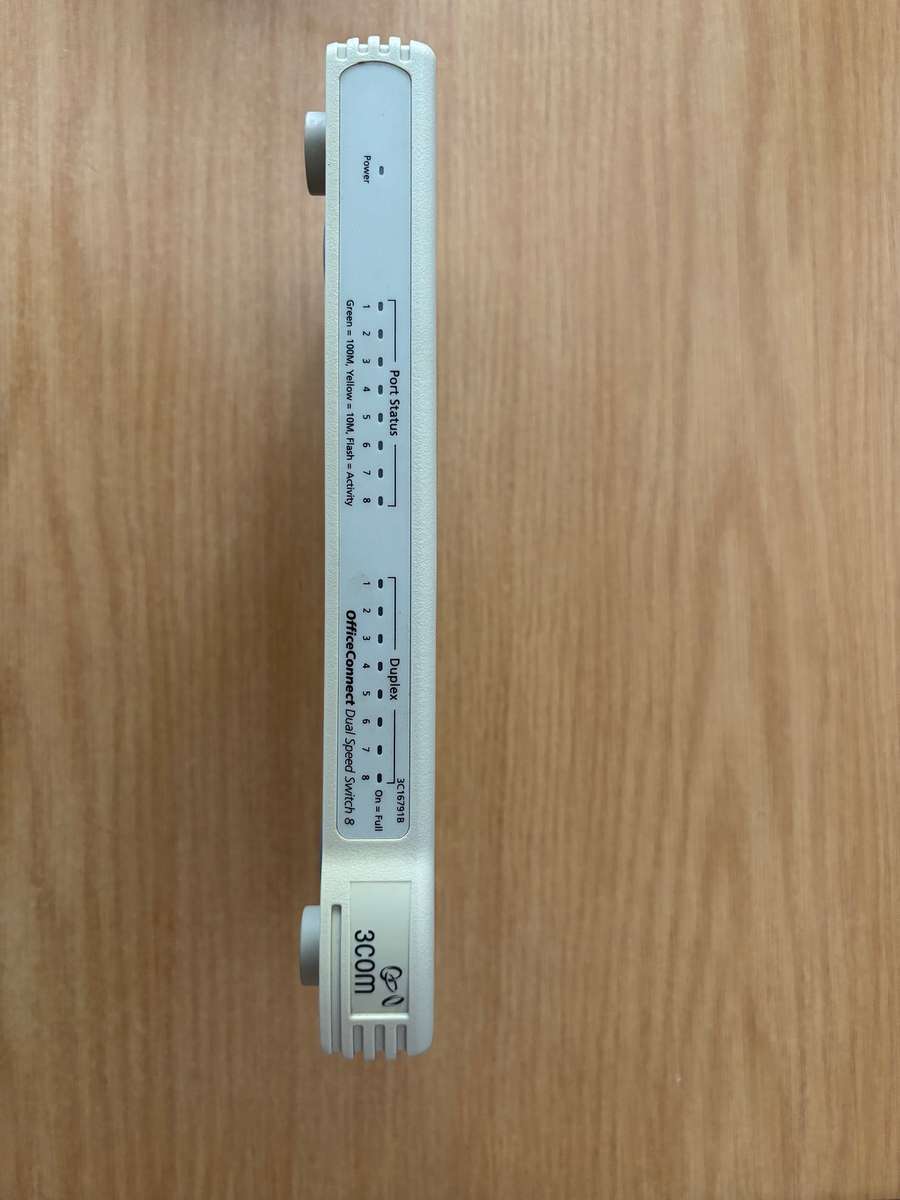

LED Indicators:
Power
Link/Activity for each port (green for connection, amber for 100 Mbps speed, and blinking for activity)
Security: Basic security features such as port-based security and filtering, suitable for small business or office use.
Dimensions: 8.6 x 4.9 x 1.1 inches (22 x 12.5 x 2.9 cm)
Weight: Approximately 0.48 kg (1.05 lbs)
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -20°C to 70°C (-4°F to 158°F)
Operating Humidity: 10% to 90% (non-condensing)
Certifications: CE, UL, and FCC compliance
Additional Features:
Energy Efficient Ethernet (EEE): The switch supports energy-saving Ethernet technology that reduces power consumption during periods of low traffic.
Simple Installation: Out-of-the-box, the device is ready to use with minimal setup. Perfect for users with limited networking experience.
Warranty: Includes a 2-year limited warranty for peace of mind.
Target Use Case:
This switch is ideal for small offices or home office setups where simplicity, reliability, and cost-effectiveness are key. It's particularly suited for basic networking needs such as connecting computers, printers, and other devices to a local area network (LAN) without the complexity of more advanced configurations. The 3Com 3C16791B OfficeConnect Dual Speed Switch 8 is a perfect choice for businesses looking for a plug-and-play networking solution that provides reliable, cost-effective connectivity with minimal configuration.
