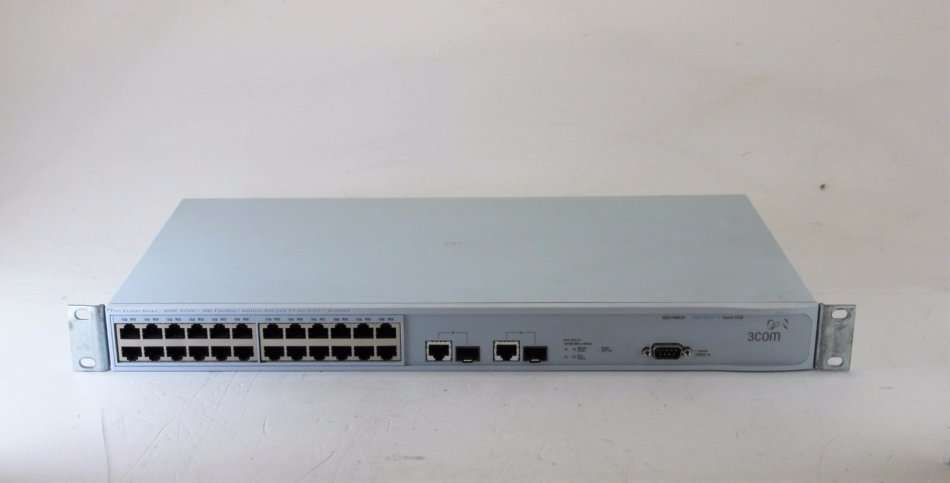

3Com SuperStack 3 Switch 3226 - 24 ports
GENERAL
Subtype Fast Ethernet
Ports 24 x 10/100 + 2 x combo Gigabit SFP
Authentication Method RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2)
RAM 32 MB
Flash Memory 16 MB flash
MAC Address Table Size 8K entries
Authentication Method Secure Shell (SSH), RADIUS, Secure Shell v.2 (SSH2)
Encryption Algorithm DES, RC4, MD5, SSL
Routing Protocol RIP-1, RIP-2, IGMPv2, IGMP
Manufacturer 3Com Direct
NETWORKING
Cabling Type Ethernet 100Base-TX, Ethernet 10Base-T
MAC Address Table Size 8K entries
Subcategory network hubs and switches
Subtype Fast Ethernet
Form Factor desktop
Type switch
Connectivity Technology wired
Advanced Switching Layer 3
Features ARP support, DHCP support, layer 2 switching, layer 3 switching, manageable, trunking, DiffServ support, IGMP snooping, IP-routing, VLAN support, auto-negotiation, auto-uplink (auto MDI/MDI-X), flow control, full duplex capability
Compliant Standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ports Qty 24
Manageable Yes
Routing Protocol IGMP, IGMPv2, RIP-1, RIP-2
Switching Protocol Ethernet
Remote Management Protocol HTTP, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, Telnet
Communication Mode full-duplex, half-duplex
POWER DEVICE
Nominal Voltage AC 120/230 V
Frequency Required 50/60 Hz
Power Consumption Operational 55 Watt
Type internal power supply
INTERFACE PROVIDED
Qty 1, 2, 24
Connector Type SFP (mini-GBIC)
Comments management
PROCESSOR
Type MPC8245
Clock Speed 333 MHz
MISCELLANEOUS
Encryption Algorithm DES, MD5, RC4, SSL
MTBF 447000 sec
Height (Rack Units) 1 m
TAA Compliant Yes
ENVIRONMENTAL PARAMETERS
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 - 90%
HEADER
Brand 3Com
Product Line 3Com SuperStack 3
Model Switch 3226
Packaged Quantity 1
Compatibility PC
DIMENSIONS & WEIGHT
Width 17.3 in
Depth 9.9 in
Height 1.8 in
Weight 9.48 lbs
PORTS
Type 10/100
Qty 24
PORTS (2ND)
Type combo Gigabit SFP
Qty 2
SLOT REQUIRED
Type none
GENERAL
3Com Direct
