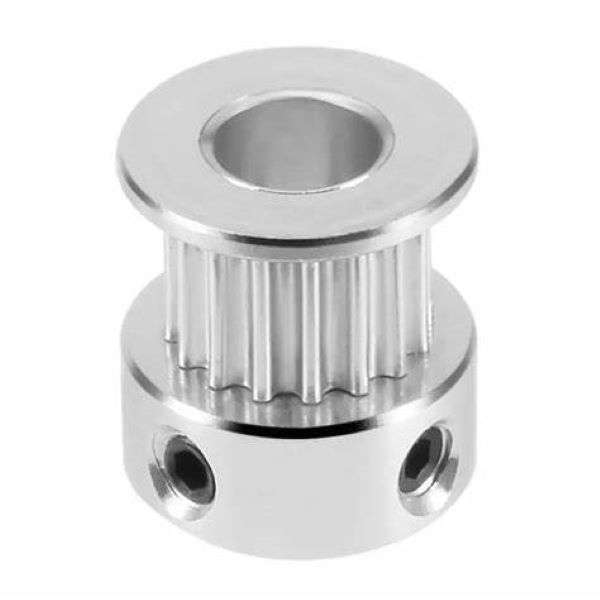

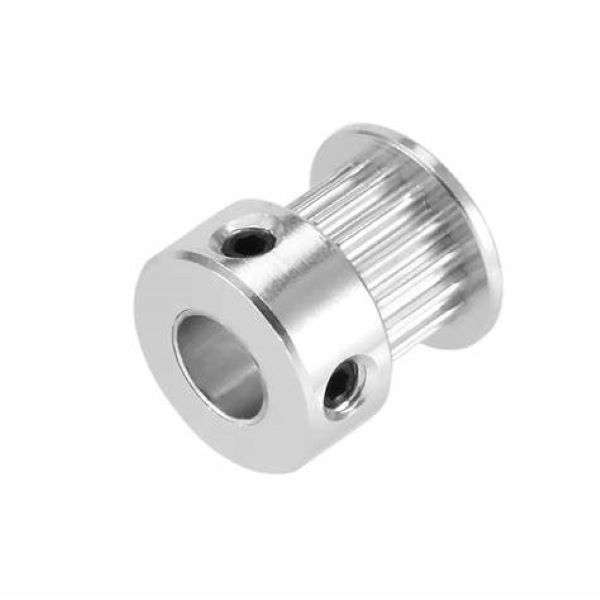

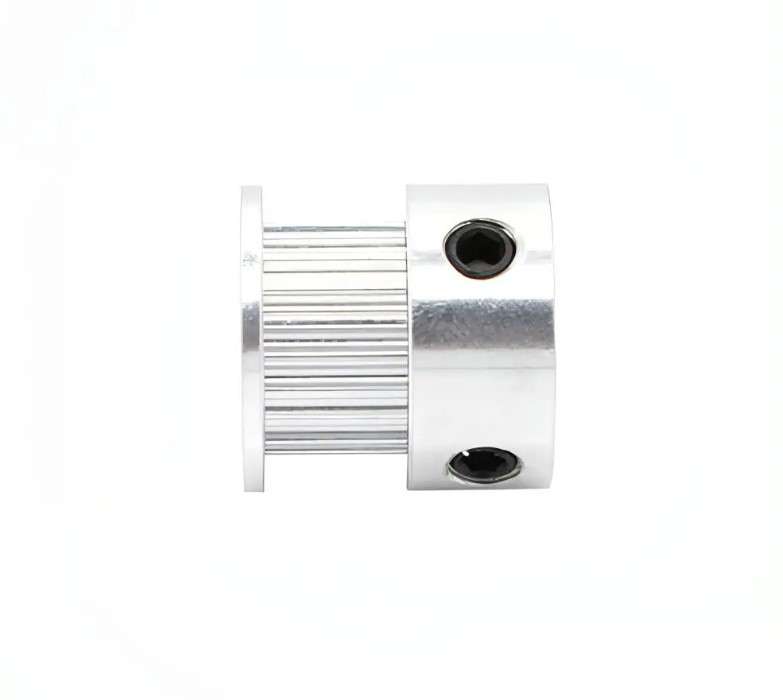

GT2 PULLEY (16 TOOTH / 6MM BELT / 5MM BORE):

• The GT2 Pulley (16 Tooth / 6mm Belt / 5mm Bore) is a precision mechanical component used in synchronous drive systems for 3D printers, CNC machines, and other automated systems.
• It is designed to work with a GT2 timing belt and has a 16-tooth configuration, ensuring accurate and reliable power transmission with minimal backlash.
• The 5mm bore allows it to be easily mounted on shafts with a 5mm diameter, making it a versatile choice for various applications that require precise movement and positioning.

Specifications:

• Pulley Type: GT2 (2mm pitch, ideal for high precision and low backlash)
• Number of Teeth: 16 teeth for smooth and accurate power transmission.
• Belt Compatibility: Designed for use with 6mm wide GT2 timing belts.
• Bore Diameter: 5mm, suitable for shafts with a 5mm diameter.
• Material: Typically made from aluminum or steel for durability and corrosion resistance.
• Tooth Pitch: 2mm pitch, meaning each tooth is spaced 2mm apart, ensuring a precise and smooth fit with GT2 belts.
• Overall Diameter: The outer diameter of the pulley depends on the number of teeth and design but generally fits standard GT2 specifications.
• Applications: Widely used in 3D printers, CNC machines, robotic systems, and other applications that require precise and efficient motion control.
• Mounting: Secured to the shaft with a set screw or similar fastening method.
• Operating Temperature Range: Typically operates within a range of -20°C to 80°C depending on the material used.
• Precision and Backlash: Designed for low backlash, ensuring high-precision movement for demanding applications.
