1.RAMPS 1.4
It is a Mega Pololu Shield, or RAMPS for short,designed to fit the entire electronics needed for a RepRap in one small package for low cost. RAMPS interfaces an Arduino Mega with the powerful Arduino MEGA platform and has plenty room for expansion. The modular design includes plug in stepper drivers and extruder control electronics on an Arduino MEGA shield for easy service, part replacement, upgrade-ability and expansion. Additionally, a number of Arduino expansion boards can be added to the system as long as the main RAMPS board is kept to the top of the stack. This board is mostly based on Adrian's Pololu_Electronics and work by Tonok. Copper etch resists methods suggested by Vik. Also inspired by Vik's work with EasyDrivers. circuit design based mostly on Adrian's Pololu_Electronics Joaz at RepRapSource.com supplied initial pin definitions and many design improvements. Much inspiration, suggestions, and ideas from Prusajr, Kliment, Maxbots, Rick, and many others in the RepRap community.
2.Iduino Mega 2560
Iduino Mega is an ATmega2560 as core microcontroller development board itself has 54 groups digital I / O input / output terminal (14 groups do PWM outputs), 16 sets of simulation than the input side, group 4 UARTs (hardware serial ports), using the 16 MHz crystal oscillator. With the bootloader, download the program directly via USB without having to go through other external writer. Supply part of the optional USB power, or as an external power using the AC-to-DC adapter and battery. Arduino development IDE interface is based on open-source principles, allows you to free download for use in project work, school teaching, motor control, interactive works.
3.A4988 driver
This product is a carrier board or breakout board for Allegro's A4988 DMOS Microstepping Driver with Translator and Overcurrent Protection by Pololu; we therefore recommend careful reading of the A4988 datasheet before using this product. This stepper motor driver lets you control one bipolar stepper motor at up to 2 A output current per coil.
4.LCD Controller
This Smart Controller contains a SD-Card reader, an rotary encoder and a 20 Character x 4 Line LCD display. You can easy connect it to your Ramps board using the 'smart adapter' included. After connecting this panel to your Ramps you don't need your pc any more, the Smart Controller supplies power for your SD card. Further more all actions like calibration, axes movements can be done by just using the rotary encoder on the Smart Controller. Print your 3D designs without PC, just with a g-code design stored on the SD card.
5.SD Ramps
Breakout board for the microSD socket that is not much bigger than your fingernail. Compatible with the SPI interface found on any SD card, this tiny form factor was created for cell phone storage and is perfect for your next 3D printer project! Board comes fully assembled and tested.The bare socket is available.

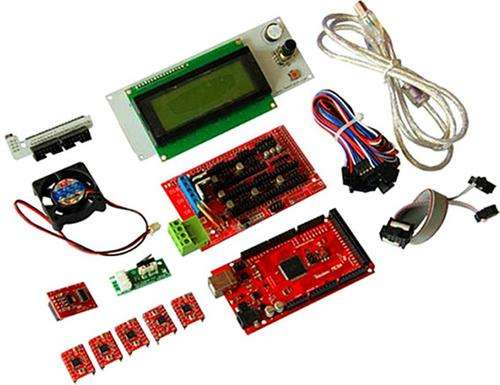

Package list
1x Complete soldered and assembled RAMPS 1.4
1x Iduino Mega 2560
5x A4988 driver
1x soldered and assembled panel with 4 rows LCD
2x 10pin flat cable
1x SD Ramps
1x USB 2.0 cable
1x cooler fan
6x endstop
15 x 70cm cables(including 5x2-pin,5x3-pin,5x4-pin)
