3D Printer SCS8UU linear Block Bearing

3D Printer SCS8UU Linear Block Bearing

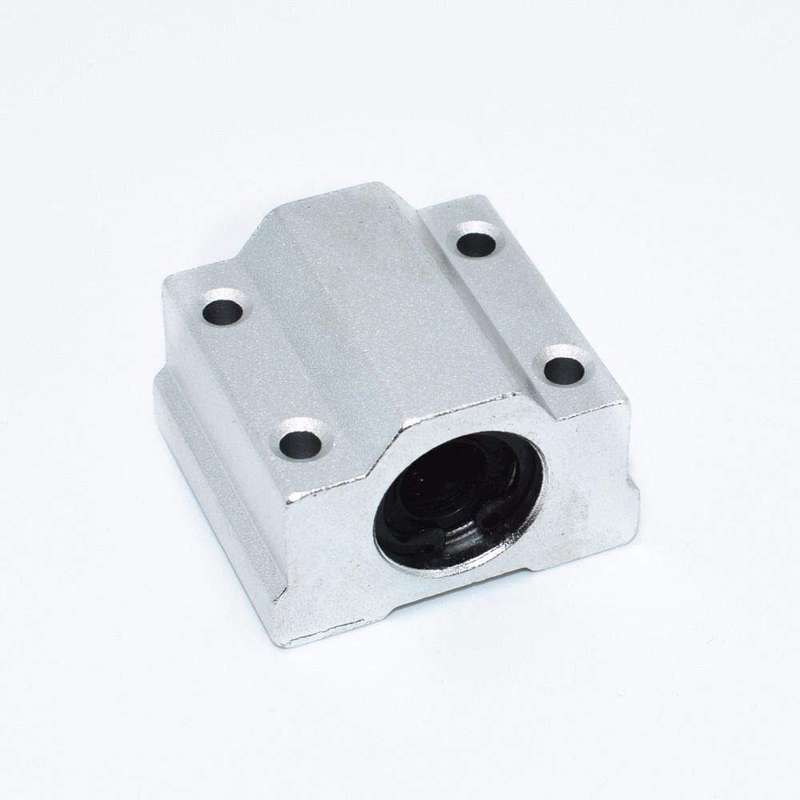

The aluminum-housing linear ball bearing SCS8UU is installed on an 8mm linear shaft to provide perfect linear motion. This item is made up of an aluminum housing that houses the LM8UU linear bearing, which is fastened in place with two circlips. The metal enclosure has four tapped holes on the bottom that make it easy to place on a plate or bracket.

Description:

Usually, it is used with 3D and CNC printers. These bearings have shown to be dependable and capable of providing precise, low-friction linear movement. The only general maintenance tasks that are required are minimal lubrication and shaft cleaning.

Specifications:

SCS8UU is the model number.

Designed to fit a linear shaft: 8 mm.

274N is the dynamic load rating.

Rating for static load = 392N.
