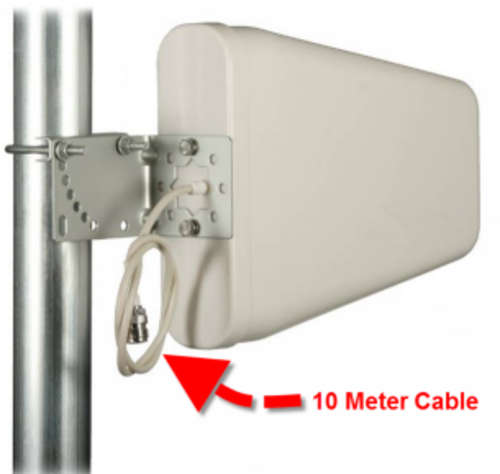

3G/GSM directional Antenna with a 10 Meter SMA Male cable
This is a 3G/GSM directional Antenna with a 10 meter SMA Male cable. It is sealed with a radome and is supplied with a tilt-down bracket.
Connect Antenna
(A) Directly to 3G routers with SMA female connector eg Huawei B660, Huawei B970b etc
(B) To 3G modem pigtails for modems that come with an external antenna slot
(C) To the universal modem couplers for modems without an external antenna slot
Specifications
- Frequency Range MHz: 800-960 1710-2500
- Beam-width-º E: 55 / 50
- Beam-width-º H: 75±12 / 65±12
- F/B Ratio-dB: ≥16 ≥18
- Gain-dBi 9.5±1 10±1
- VSWR ≤1.5
- Impedance-Ω: 50
- Polarisation: Vertical
- Maximum Power-W: 50
- Connector: SMA Male
- Dimensions-mm: 442 x 205 x 37
- Weight-Kg: 1
- Mast Diameter-mm: φ40-φ50
