Specifications
1. AP Support 30 WiFi terminals
2. Plug & Play Support Plug & Play
3.support system Support Windows 2000/XP/Vista/WIN
Access Mode 3G wireless access
WAN wired access
WISP wireless access
WiFi Hotspot Support IEEE802.11b/g/n,IEEE802.3/802.3u
WiFi maximum broadband access: 150Mbps
Support more than 30 WiFi clients access
Support WEP, WPA-PSK WPA2-PSK wireless encryption mode
Support WMM(WI-FI Multimedia)
WiFi WDS
(WiFi Distributed Systems) Support Bridge mode
Support Repeater mode
Support Lazy mode
Firewall SPI Stateful Packet Filtering
IP Address Filtering
MAC Address Filtering
URL Filtering
Dos Attack Prevention
Anti-ping Function
DHCP server Support MAC/IP Address Binding
Support 127 Addresses Distribution

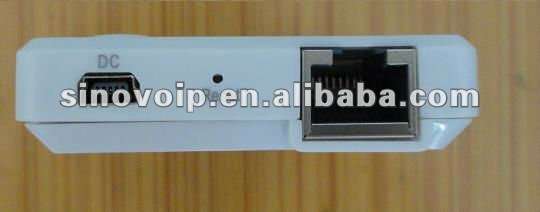

Interface 1 10/100Mbps LAN/WAN Ethernet port
1 SIM-card interface
1 mini USB charger interface
Battery 1500mAH; endurance is 3-8 hours
Size L104mm * W 61mm * H14.8mm
SIM-card Interface Standard SIM-card interface, suppport external access of WCDMA SIM-card
RESET Press to auto restart , long time press to restore the default values
WAN / 3G LAN Switch Internet connection mode switch, select 3G to use 3G data card, then RJ45 used as LAN port; select WAN to use wired network, then RJ45 used as WAN port
POWER When system run, long time press to shutdown; when system shutdown, long time press to run
DC Power adapter interface, connect to USB port of the PC to charge
RJ45 Wired network interface, used as LAN port or WAN port(depends on 3G/WAN switch)
