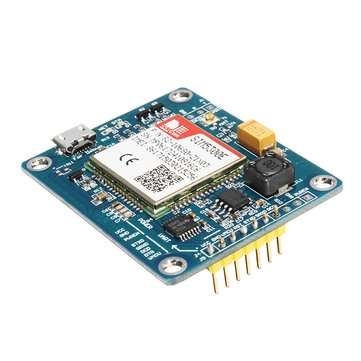

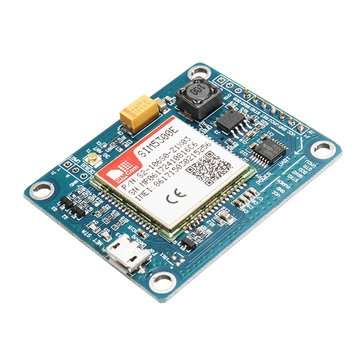

3G SIM5300E Development Board GSM GPRS GPS SMS Data 3G Network Speed Module

Instruction:

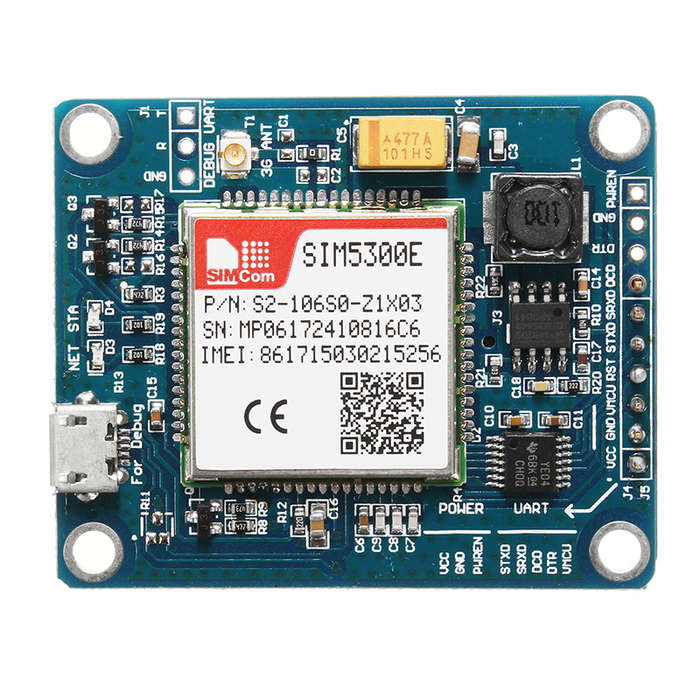

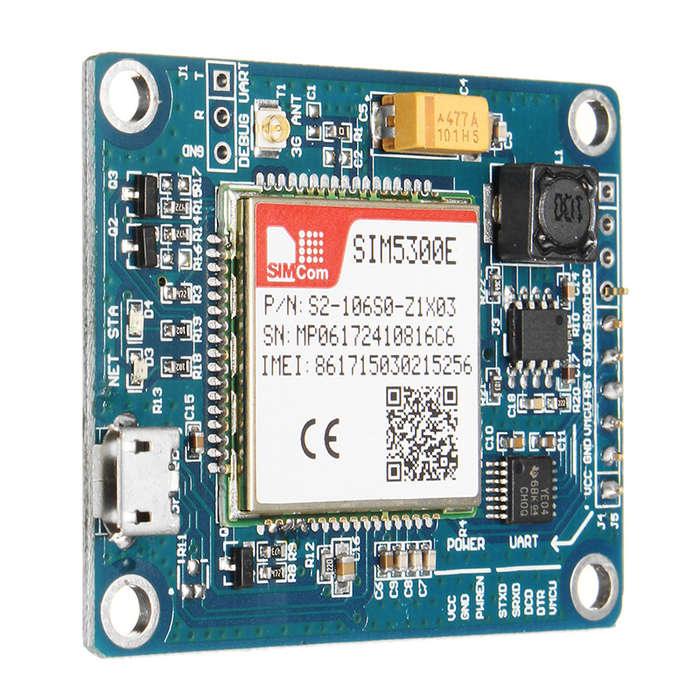

Characteristic: Dual-Band WCDMA/HSPA 900/2100MHz Dual-Band GSM/GPRS/EDGE 900/1800MHz GPRS multi-slot class 12 EDGE downlink only Output power - UMTS 900/2100: 0.25W - GSM900: 2W - DCS1800: 1W Control Via AT Commands Supply voltage range: 3.4V - 4.4V Operation temperature: -40ﾣC to +85ﾣC Dimension: 24 x 24 x 2.4mm Weight: 3.2g Data transmission: HSPA - Max.7.2Mbps(DL), Max.5.76Mbps(UL) WCDMA - Max.384Kbps(DL), Max.384Kbps(UL) EDGE Class: - Max.236.8Kbps(DL) GPRS - Max.85.6Kbps(DL), Max.85.6Kbps(UL) SMS note: Point to point MO and MT Text and PDU mode Feature: MICRO USB port: After install driver, multiple COM ports will be generated and the SIM5300E module can be debugged. Power supply and communication interface: Including DC power input interface, power enable control pin, reset pin and so on. 3G antenna interface: Connect to our matching 3G antenna via an IPX-SMA adapter cable, or connect to an IPX interface antenna. Auxiliary antenna interface: Connect to our matching auxiliary antenna via an IPX-SMA adapter cable. LED indicator: including network status, incoming call status indicator. Size: 41*51mm. Needle connector spacing: 2.54mm. Package includes: 1 x 3G SIM5300E Development Module

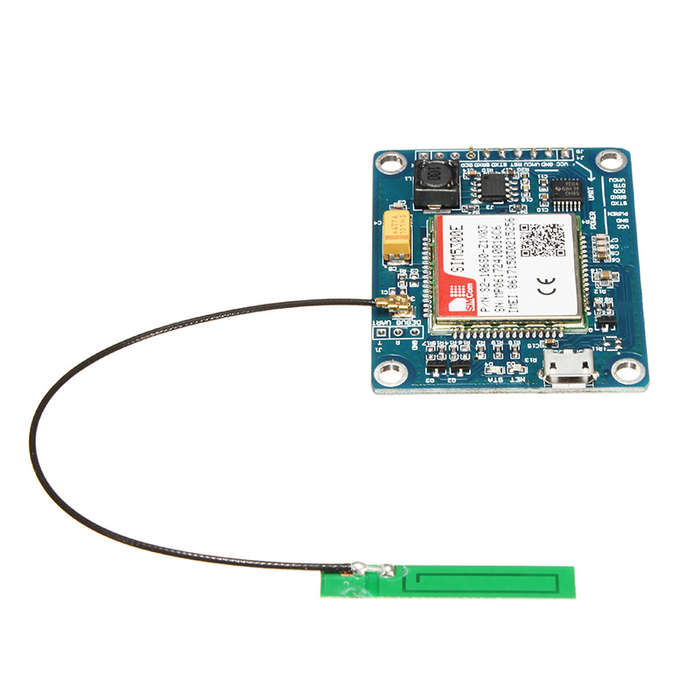

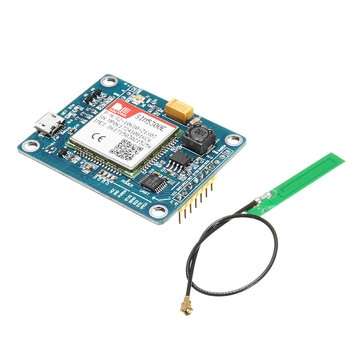

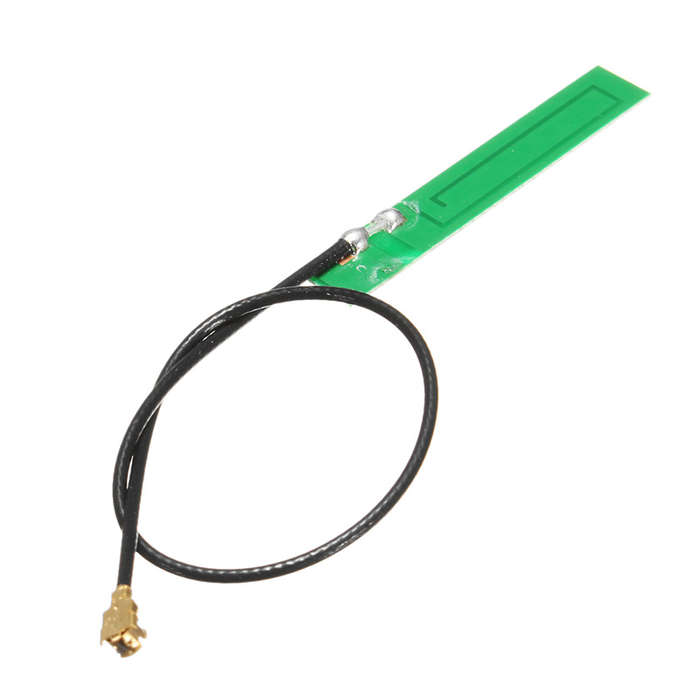

1 xAntenna
, , , , ,
