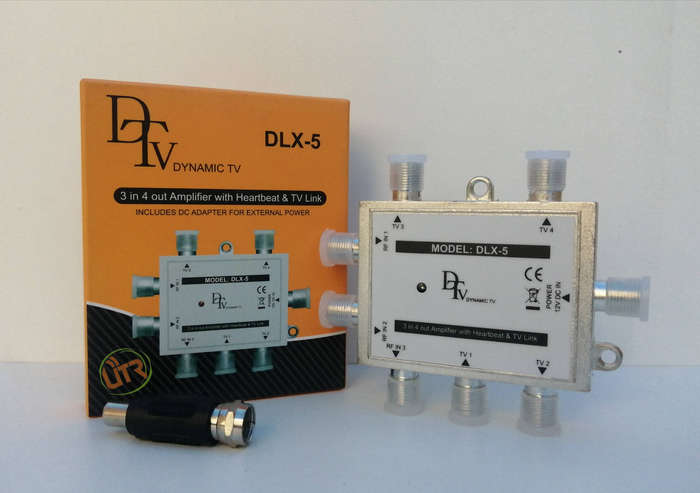

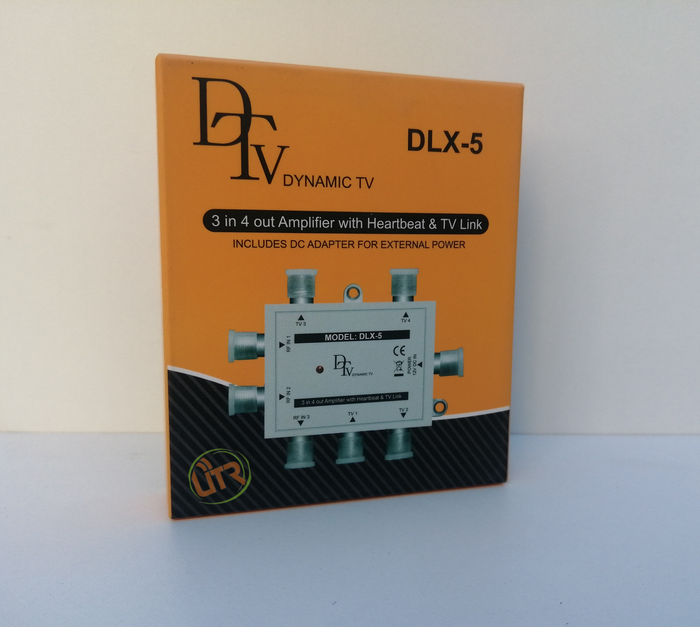

3IN 4OUT AMPLIFIER WITH HEARTBEAT & TV LINK
MODEL - DLX-5
Designed for distributing and amplifying RF signals from up to three input sources to four TV outputs, while supporting remote control over coaxial cable.
INCLUDES DC ADAPTER FOR EXTERNAL POWER
TECHNICAL DATA
SPECS:
FORWARD PATH
FREQUENCY RANGE - 88-862MHz
FORWARD GAIN - 8dB
REVERSE PATH
FREQUENCY RANGE - 5-30MHz
REVERSE GAIN -7dB
VOLTAGE ON OUTPUTS - 9V DC@ 15mA
LINE POWER SUPPLY - 9V DC FROM THE RF OUT
Amplification: Boosts signal strength for clearer reception over longer cable runs.
Signal Distribution: Distributes signals from 3 sources to 4 TVs.
TV Link Compatible: Lets you control your decoder or source device remotely from any room using a TV Link/TV Eye.
Heartbeat Support: Passes IR control signals via coaxial cable.
External Power Adapter: Stable 12V DC power included for consistent performance.
Durable Casing: Strong metal housing for reliability and protection.
