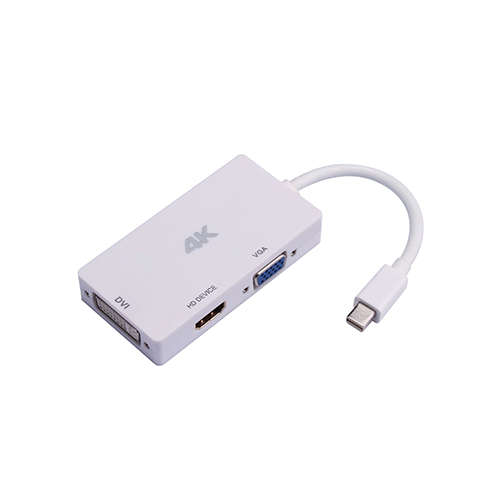

Mini Display Port (3 in 1) Thunderbolt to HDMI/DVI/VGA Display Port Cable Adapter for Apple MacBook Pro Microsoft Surface Pro 2 3
Description
This product with three output ports, and you can choose one of them to use at a time as you demand, the functions of the port are outlined below:
- DVI output connects the DVI devices using a DVI cable
- HDMI output connects the HDMI devices using a HDMI cable
- VGA output connects the VGA devices using a VGA cable
- Mini Display Port, connect Mac Book, Mac Book Pro, or Mac Book Air
Note:
- Please make sure that your Mac has mini DP port or Thunderbolt port
- Only one of the 3 outputs could be used at a time, you cannot use all of them simultaneously
- The following Mac/Apple computers support audio pass-through via Mini Display Port
MacBook 13" Model 7,1 (Mid 2010)
MacBook Pro 13" Model 7,1 (Mid 2010)
MacBook Pro 15" Model 6,2 (Mid 2010)
MacBook Pro 17" Model 6,1 (Mid 2010)
MacBook Pro 13" Model 8,1 (Early 2011 / Thunderbolt)
MacBook Pro 15" Model 8,2 (Early 2011 / Thunderbolt)
MacBook Pro 17" Model 8,3 (Early 2011 / Thunderbolt)
MacBook Air 11" Model 3,1 (Late 2010)
MacBook Air 13" Model 3,2 (Late 2010)
Mac mini Model 4,1 (Mid 2010)
iMac 27" Model 10,1 (Late 2009)
iMac 27" Model 11,1 (Late 2009)
iMac 21.5" Model 11,2 (Mid 2010)
iMac 27" Model 11,3 (Mid 2010)
Mac Pro Model 5,1 (Mid 2010)
Microsoft Surface Pro & Pro 2 3
Features:
- Support Mini Display Port 1.1a Dual-mode input.
- The HDMI can support audio output for iMac (Late 2009) and Mac Book Pro (Mid 2010)
- Support HDMI/DVI/VGA output with the max resolution of 1920x1080p@60Hz, 225MHz/2.25Gbps per channel (6.75Gbps all channel), 12bit per channel (36bit all channel) deep color.
- Automatic detects the display by plugging and unplugging it.
- Powered from Mini Display Port source.
Specification:
- Input Signal: Mini Display Port 1.1a
- Output Video: HDMI/DVI/VGA
- Input: Mini Display Port Male 20pin
- Output: HDMI Female Type A 19pin
- Connector: DVI Female (24+1) VGA Female 15Pin
- Vertical Frequency Range:50/60Hz
- Video Amplifier Bandwidth:2.25Gbps/225MHz
- HDMI/DVI/VGA:480i/480p,576p,720p,1080i/1080p
- External Power Supply: No external power needed
- Power consumption (Max): 700mW
- The Length of the cable: 28cm
- Color: White
- Package weight: 54g
How to use it:
- The product is easily and conveniently used with three output ports: DVI VGA HDMI and a Mini Display Port.
- And you can use one of them at a time depending on your demand, when you want to use the DVI output; you just need to connect the DVI devices using a DVI cable.
- When you want to use the HDMI output, you just need to connect the HDMI devices using a HDMI cable. When you want to use the VGA output, you just need to connect the VGA devices using a VGA cable.
- The Mini Display Port is used to connect MacBook, MacBook Pro, or Mac Book Air.
Package includes
1 x 3 in 1 Mini Thunderbolt to HDMI, DVI, VGA Display Port
