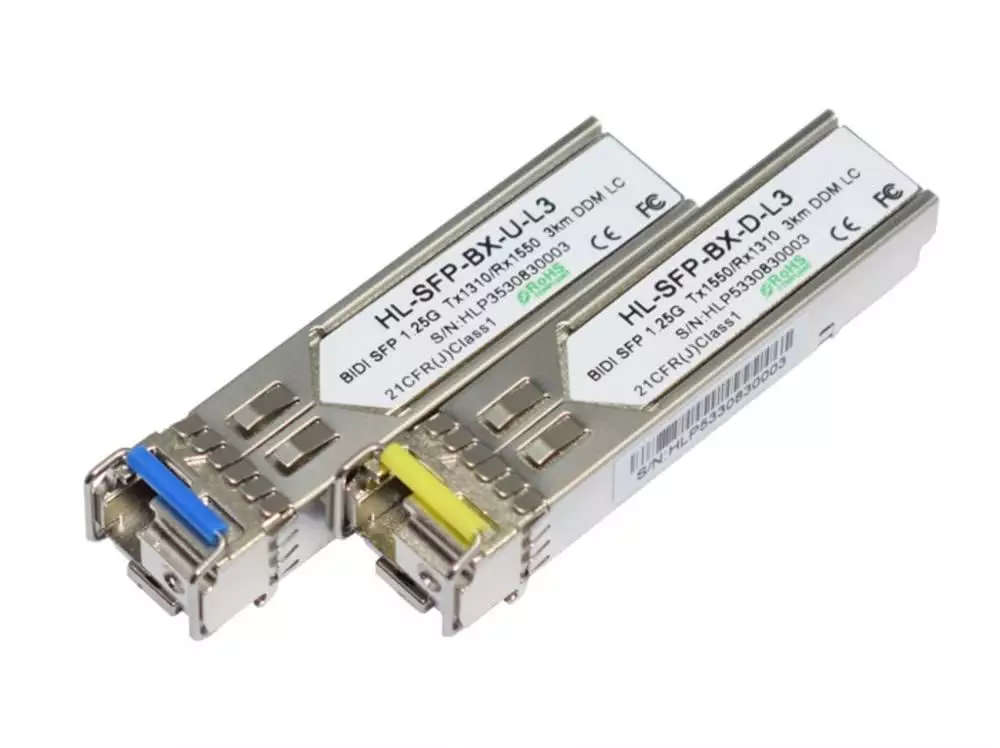

3km Single Mode Bi-Directional SFP Module SET | Cisco & Generic Switch Compatible | 1000BaseBX BiDi SFP
Note that this product needs to function in a SET and pricing is PER SET | Please choose a Transmitter & Receiver from the Drop-down List and add it to your cart. The options is ONLY specific to Dell as a TX/RX pair, Huawei or Cisco Equipment as a TX/RX pair. If you are not using any of these 3 brands and use a generic brand as below choose any type transmitter and any type receiver since all SFP's are generic switch compatible.
These Fiber SFP modules have been individually programmed to be compatible with either Cisco or Huawei or Dell and any module is 100% compatible with other generic sfp coding brands such as Tenda, Hikvision, TPLink, TrendNet, Netgear, Ubiquiti / Unifi and generic OEM brands. If buying specifically for Cisco, Dell or Huawei models please choose the correct compatibility from the drop-down list below.
This SFP is Hot-Pluggable and it can be inserted into a Network or POE Network Switch without the need to power-down the switch.
The small form-factor pluggable (SFP) is a compact, hot-pluggable network interface module used for both telecommunication and data communications applications. An SFP interface on networking hardware is a modular (plug-and-play) slot for a media-specific transceiver in order to connect a fiber optic cable or sometimes a copper cable.
Please see our guide at Fiber Optic Cables & SFP Compatibility for more information.
- Support IEEE802.3 and Fiber Channel Applications
- Single fiber bi-directional data links with 1.25G GbE and 1.0625G Fiber-Channel
- Support up to 3km Transmission on Simplex Single Mode Fiber Cables
- 1550nm transmitter with DFB laser
- 1310nm receiver with PIN-TIA
- Connector: 1x LC UPC per Module
- Data Rate: 1.25Gbps
- Operation case temperature -40~85°C for Industrial, and 0~70°C for commercial
- RoHS6 Compliant
- Wave Length : 1550nm/1310nm

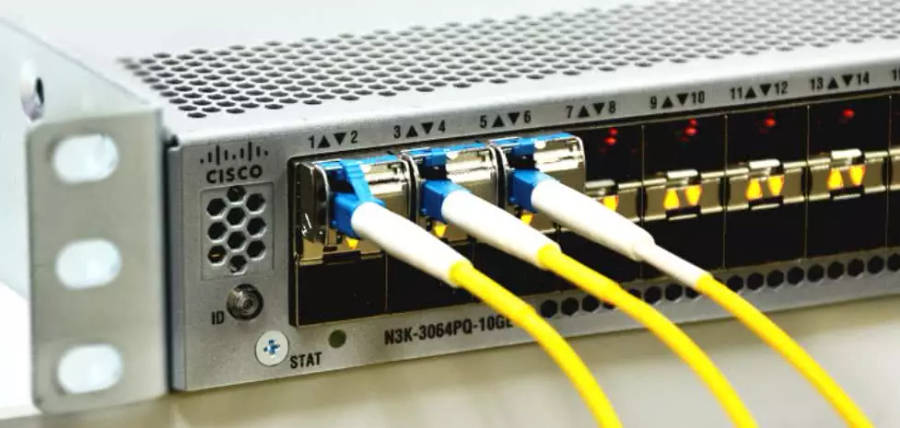

Example of Bidi SFP with Simplex LC Fiber SFP Installation
Operating Conditions
| Parameter | Unit | Min | Typical | Max |
| Storage Temperature | °C | -40 | | 85 |
| Operating Case Temp for C-temp | °C | 0 | | 70 |
| Operating Case Temp for I-temp | °C | -40 | | 85 |
| Power Supply Voltage | V | 3.1 | 3.3 | 3.5 |
| Supply Current | mA | | | 300 |
| Bit Rate for GE | Mpbs | 1250 |
| Bit Rate for Fiber Channel | Mpbs | 1062.5 |
These Bi-Directional SFP Modules are commonly installed with the Simplex Single Mode LC to LC Fiber Cables Below:
/1m-simplex-single-mode-lc-upc-fiber-optic-cable-fiber-patch-cord/
/60m-simplex-single-mode-lc-to-lc-fiber-optic-cable-upc-fiber-patch-cord/
/150m-simplex-single-mode-upc-lc-lc-fiber-optic-cable-fiber-patch-cord-outdoor-drop-cable/
/100m-simplex-single-mode-upc-lc-lc-fiber-optic-cable-fiber-patch-cord-outdoor-drop-cable/
Below are Network Switches and POE Network Switches commonly used with these SFP's to enable the switches to be up-linked by Fiber Cables
/400-watt-rack-mountable-28-port-gigabit-poe-plus-network-switch-with-2-sfp-transceiver-module-ports-oem/
SFP Module Installation Instructional Video
