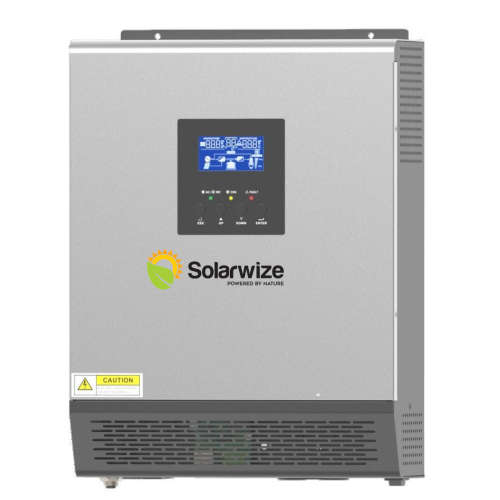

3000VA/2400W 24V Solarwize Hybrid Inverter
Built in 50APWM Solar Charge Controller
Equipped with PWM solar charge controller to maximize andregulate DC power from the solar array for charging the battery bank.Transformer-less design provides reliable power conversion in size and withhigh efficiency. It is Light and Handy,
making installation easier. Ideal foragricultural, residential and commercial use.
Specification
Rated power | 3000VA/2400W
INPUT Voltage | 120VAC
AC voltage regulation | 120VAC±5%
Surge power | 6000VA
Efficiency (peak) | 93%
Waveform | Pure sine wave
Battery voltage | 24VDC
Maximum AC charge current | 30A
Maximum Solar Charging current | 50A
Dimension, D*W*H (mm) | 305*272*100
Features
Built in PWM Solar Charge Controller
Selectable input voltage range and frequency
Configurable AC/Solar input priority via LCD Display
Compatible to mains voltage or generator power
Auto restart while AC is recovering
Overload and short circuit protection
Smart battery charger design for optimized batteryperformance
Cold start function
Parallel communication
