BATTERY
Features
Longer Cycle Life: Offers up to 20 times longer cycle and five times longer float/calendar life acid battery, helping to minimize replacement cost and reduce total cost of ownership
Lighter Weight: About 40% of the weight of a comparable lead acid battery. A 'drop in' replacement for lead acid batteries.
Higher Power: Delivers twice power of lead-acid battery, even high discharge rate, while mantaining high capacity.
Wider Temperature Range: -20 ~ 60 Degrees Celcius
Superior Safety: Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact, overcharging or short circuit situation.
Typical Applications
- Wheelchairs and scooters
- Solar/Wind energy storage
- Back up power for small UPS
- Golf trolleys and buggies
- Electric bikes
- Tools
Specification
24V 100Ah LiFePo4 Single Battery Module
Nominal Voltage: 25.6V
Nominal Capacity: 100Ah
Energy: 2560Wh
Cycle life: >2000 cycles @0.5C 80%DOD
Months Self Discharge: <3%
Efficiency of Charge: 100% 0.5C
Efficiency of Discharge: 96~99% @ 1C
Charge Voltage: 29.2 +- 0.2V
Charge Mode: 0.5C to 29.2V, then 29.2V, charge to 0.02C (CC/CV)
Charge Current: 50A
Max charge Current: 100A
Charge Cut-off Voltage: 29.2 +- 0.2V
Rate discharge Current: 50A
Max. Discharge Current: 100A
Discharge Cut-off Voltage: 20V
Charge Temperature: 0 to 55 Degrees Celcius @ 60+-25% Relative Humidity
Discharge Temperature: -20 to 60 degrees Celcius @ 60+-25% Relative Humidity
Storage Temperature: -20 to 45 degrees Celcius @ 60+-25% Relative Humidity
IP Class: IP65
Plastic Case: ABS
Approximate Dimensions: 522 x 240 x 218 mm
Approximate Weight: ~20.3KG
Terminal: M8
INVERTER
MUST- This is a multi-function inverter/charger, combining functions of inverter, MPPT 60A/80A solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Features:
-Pure sine wave output
-Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).
-Bult in MPPT 60A/80A solar charge controller
-Combining solar system, AC utility, and battery power source to supply continuous power
-Overload, short circuit and Deep discharge protection Cold start function
-Support USB, RS485 monitoring function Compatible to generator

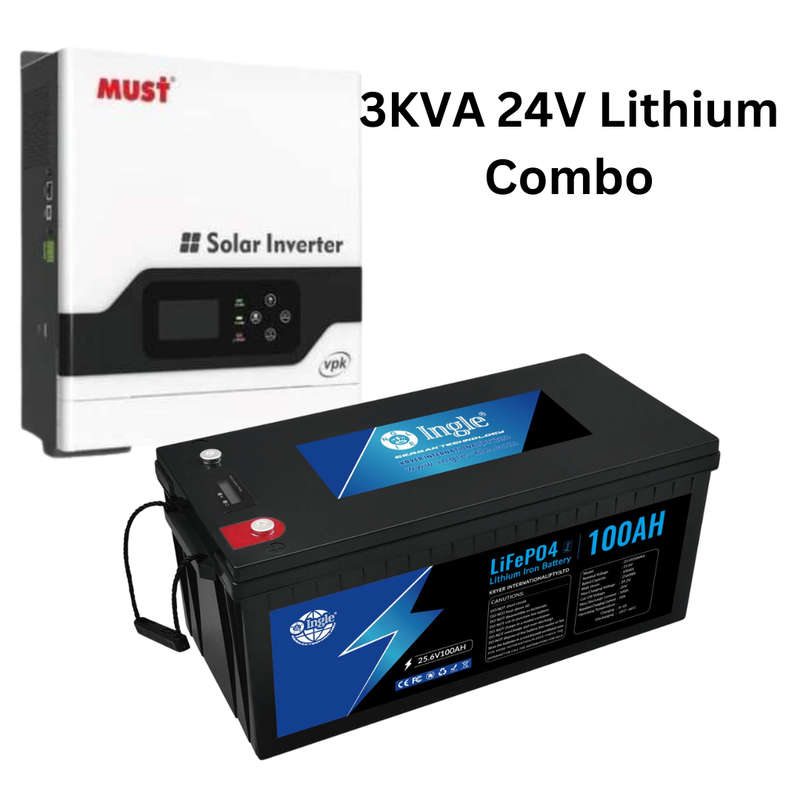

What is included in the combo
1 x Ingle 25.6v 100ah 2560kwh lithium battery
1 x MUST 3KVA Inverter
