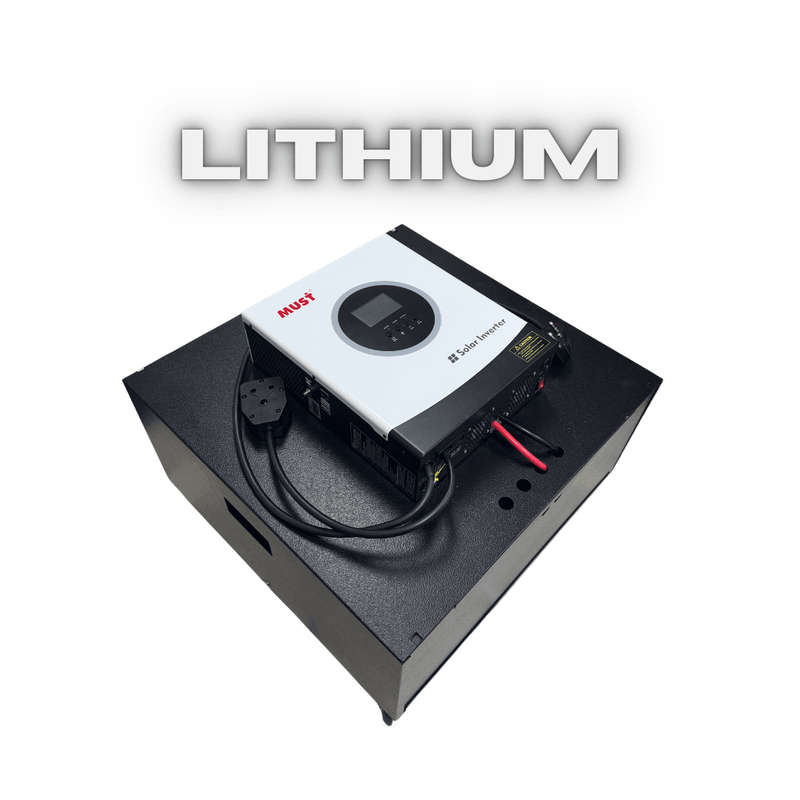

3KVA / 3000W 24V MUST Portable Plug And Play Hybrid Inverter System + 2.56kWh Lithium Battery / Solar Ready / MPPT
Reliable Backup Power for Load Shedding & Off-Grid Use
This all-in-one hybrid inverter system provides a seamless power backup solution for homes and businesses. Designed for reliability, it ensures uninterrupted operation of essential appliances like lights, WiFi, TVs, and computers during power outages. With a built-in MPPT solar charge controller, this system is solar-ready, allowing you to add solar panels for extended off-grid use.
Key Benefits & Features
Seamless Power Backup: Automatically switches to battery power during load shedding.
Solar Ready: Add solar panels to charge batteries when the grid is down.
Long Backup Time: Supports 150W essential load (TV, WiFi, lights) for 24-32 hours on a full charge.
Pure Sine Wave Output: Ensures stable power for sensitive electronics.
Smart LCD Display: Configure settings, monitor charge status, and view working modes.
Advanced Protection: Overload, short circuit, and deep discharge protection for enhanced safety.
Remote Monitoring: Optional WiFi connectivity allows real-time system monitoring.
Parallel Operation: NO
Technical Specifications
Hybrid Solar Inverter (MUST PV1800 Series)
- Model: PV18-3024 VPM
- Rated Power: 3000VA / 3000W
- Battery Voltage: 24V DC
- AC Output: 230V AC, 50/60Hz, 13A
- Solar Charge Controller: MPPT 50A/60A
- MPPT Voltage Range: 30-120V DC
- Max. Solar Voltage (VOC): 145V DC
- Max. Charge Current: 80A
- Operating Temperature: 10°C - 50°C
- Protection Class: IP20
Lithium Battery (ECCO 2.56kWh LiFePO4)
- Stock Code: AT25100WH
- Battery Type: Wall-Mountable 25.6V 100Ah LiFePO4
- Capacity: 2.56kWh
- Charge Current (Max): 20A
- Discharge Current (Max): 50A
- Cycle Life: 1000 cycles @ 100% DOD, 2000+ cycles @ 80% DOD
- Design Life: ±10 Years
- Protection Features: Electronic circuit breaker, voltage & current limiting
- Dimensions: 498mm x 192mm x 490mm
- Weight: 27kg
What's Included in the Box
1x 3KW 24V/80A Pure Sinewave Hybrid MPPT Inverter MUST
1x 2.56kWh Lithium Battery
1x Heavy-Duty Lockable Box with Wheels
1x Double 3-Point Plug Socket
1x Battery Fuse
1x Male + Female Solar Connector
1x Power Cable with Surge Protection
1x User Manual
Installation & Compliance
Installation by a Certified Professional Required
As per legal requirements, this system must be installed by a qualified electrician who can issue a Certificate of Compliance (COC).
Maximizing Battery Life
- Keep the inverter plugged in and powered on to maintain full battery charge.
- Use a compatible solar panel setup for extended off-grid operation.
Size & Weight
- Dimensions: 60cm (H) x 60cm (L) x 45cm (W)
- Total Weight: ~50kg
Warranty & Support
- 2-Year Repair Warranty on the INVERTER
- 5 YEAR REPAIR ON BATTERY
- Customer Support Available for Installation & Usage Guidance
Why Choose This Hybrid Inverter System?
This plug-and-play power backup solution ensures that your essential devices stay powered during outages. With solar compatibility, long battery life, and an advanced MPPT charge controller, it's the perfect choice for households, small businesses, and off-grid applications.
