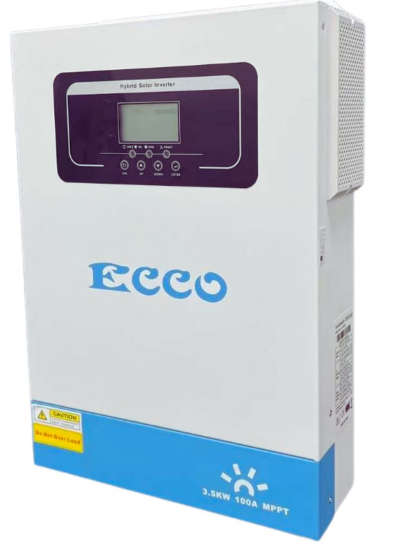

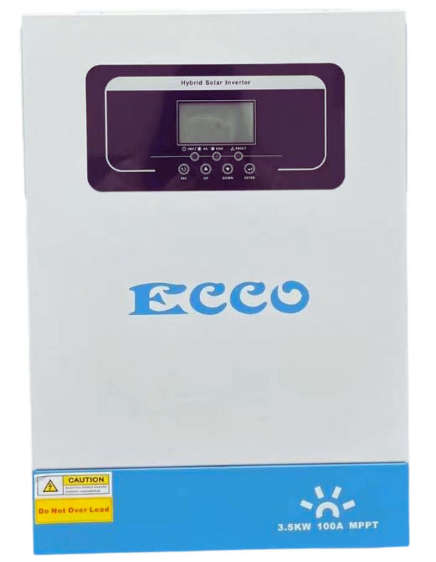

3KVA 3500W 24V 100A MPPT Hybrid Solar Inverter - ECCO

3.5KVA/3500W 100A Pure Sine Wave Solar Inverter

Features
- Pure Sine Wave Solar Inverter
- Output Power Factor 1
- High PV Input Voltage Range (120VDC - 500VDC)
- Built-in 100A MPPT Solar Controller
- Supports Multiple Output Priority: UTL, SOL, SBU, SUB
- Parallel Operation with Up to 12 units (Parallel Version)
- Supports Parallel Operation in Single Phase/ 3 Phase (Parallel Version)
- Supports Wireless Parallel, Without Extra Sharing of Current Cable
- RS485 Communication for BMS
- Wifi Monitoring
- Battery Equalization Function to Optimise Battery Performance and Extended Lifecycle

Specifications:

Inverter Mode
- Rated Power: 3500VA / 3500W
- DC Input: 24VDC, 158A
- AC Output: 230VAC, 50/60Hz, 23.5A

AC Charger Mode
- AC Input: 230VAC, 50/60Hz, 23.5A
- DC Output: 27VDC
- Max. Charge Current(AC): 60A Default 30A
- Max. Charge Current(PV+AC): 100A
- AC Output: 230VAC, 50/60Hz, 15.2A

Solar Charge Mode
- Max. PV Array Power: 4000W
- Min. Solar Voltage: 120VDC
- Max. Solar Voltage (VOC): 500VDC
- Max. MPPT Charge Current: 100A

Ingress Protection: IP21 (Indoor Use)

Dimensions ; 38 x 55 x 20 cm
Weight: 9.65kg

What's in the box
1 x ECCO 3.5KW 24V 100A MPPT Hybrid Solar Inverter
1 x User Manual
2 x Connection Cables
