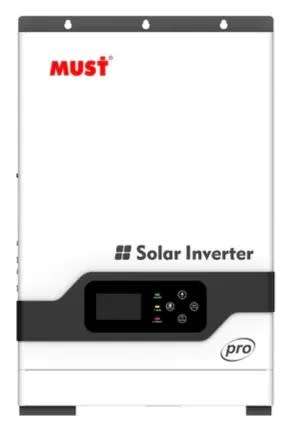

3KVA Hybrid Inverter MPPT Solar Inverter MUST

PV1800 VPM is the latest multi-function inverter/charger model from MUST, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

Features:
-Pure sine wave output
-Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc.)
-Built-in MPPT 50A/60A solar charge controller
-New SUB working mode (Solar-Utility-Battery working mode)
-Combining solar system, AC utility, and battery power source to supply continuous power
-Overload, short circuit and deep discharge protection
-Parallel operation with up to 3 units (Available for 4KW/5KW only)
-Cold start function
-Support USB, RS485 monitoring function
-WIFI remote monitoring (optional)
-Compatible to generator

Specifications:

Solar Inverter:
-Model Name: PV1800
-MD: PV18-3024 VPM
-Operating Temperature: 10C ~ 50C
-Protection Class: Class I
Protection Degree: IP 20

Inverter Mode:
-Rated Power: 3000VA/3000W
-DC Input: 24VDC,130A
-AC Output: 230VAC 50/60Hz 13A

AC Charge Mode:
-AC Input: 230VAC 50/60Hz 17.7A
-DC Output: 27VDC 30A/20A

Solar Charger Mode:
-Rated Current:60A
-System Voltage: 24VDC
-MPPT Voltage Range: 30-120VDC
-Max. Solar Voltage (VOC): 145VDC
-Max. Charge Current: 80A

What's in the Box:
1x 3KW 24V/80A Pure Sinewave Hybrid MPPT Inverter - MUST (Excluding Solar Batteries and Panels)
1x User Manual

Please note by law, this product does require installation by a qualified installer that will be able to issue you with a Certificate of Compliance (COC) once installed.

What's in the box
1x 3KW 24V/80A Pure Sinewave Hybrid MPPT Inverter - MUST
1x User Manual
