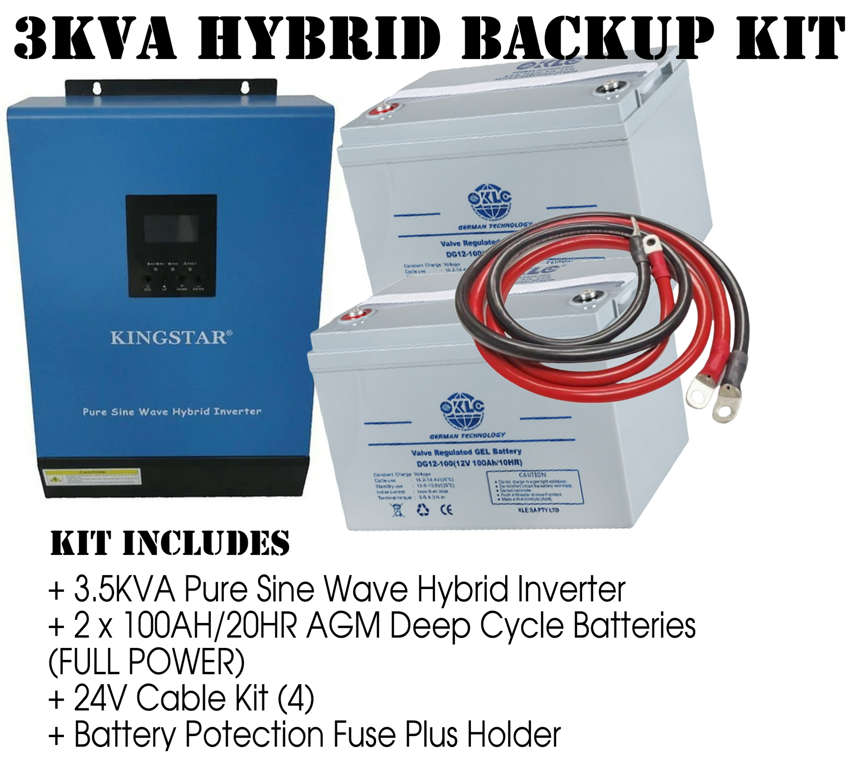

3KVA Hybrid Solar Inverter kit -100AH

This Combo includes the following:

1 x 3.5KVA 24V Hybrid Inverter
2 x 100Ah AGM Batteries
24V Connection Cables (4s)
1 x Battery Protection Fuse plus Holder


INVERTER

• 3.55KVA 24VDC 60A Hybrid Inverter
• Axpert VM III Type Pure Sine Wave Inverter
• 3000w Rated Power
• Max Watt Output 3.5kW Peak Efficiency 93%
• 60A PWM Solar Charge Controller
• Voltage: 230V AC and Battery Voltage: 24VDC
• Nominal PV Voltage 105VDC
• AC Charging Current Maximum 60A
• Configurable AC Solar Charger Priority Via LCD Setting
• Configurable Input Voltage Range For Home Appliances And Personal Computers Via LCD Setting
• Configurable Battery Charging Current Based On Applications Via LCD Setting
• Configurable AC Solar Charger Priority Via LCD Setting
• Compatible To Mains Voltage Or Generator Power
• Auto Restart While AC Is Recovering
• Overload/Over Temperature/Short Circuit Protection
• Smart Battery Charger Design For Optimized Battery Performance
• Cold Start Function
• Specifications
• Stock Code: KSW3500VA3000W
• Description: Solarix Kingstar 3.5kva Hybrid Inverter
• Pure Sine Wave Inverter Model:Ksw-3500va/3000w
• Input:220VAC 50/60hz
• Output:220VAC 50/60hz
• Dc Input:24VDC
• N.W: 19.06 kg
• G.W: 20.32 kg
• Packing Size: 565*383*188mm

BATTERIES

Brand: KLE/INGLE

These batteries are 12 Volt and have a 100AH/20HR capacity. These batteries provide FULL POWER, so they will not disappoint. They can be used with used with the following:

• Inverters
• UPS systems
• Electrical Tools
• Boats or Caravans
• Electrical Vehicle
• Medical Equipment

This Kit can be upgraded later on  by including Solar Panels.

Warranty: 6 Months - Replacement

- Do not Overload
- Recommended Depth Of Discharge (DOD): 50%

Please make sure that your inverter/charger works well with GEL batteries before buying. Warranty falls off if wrong or incompatible inverter/charger is used.
