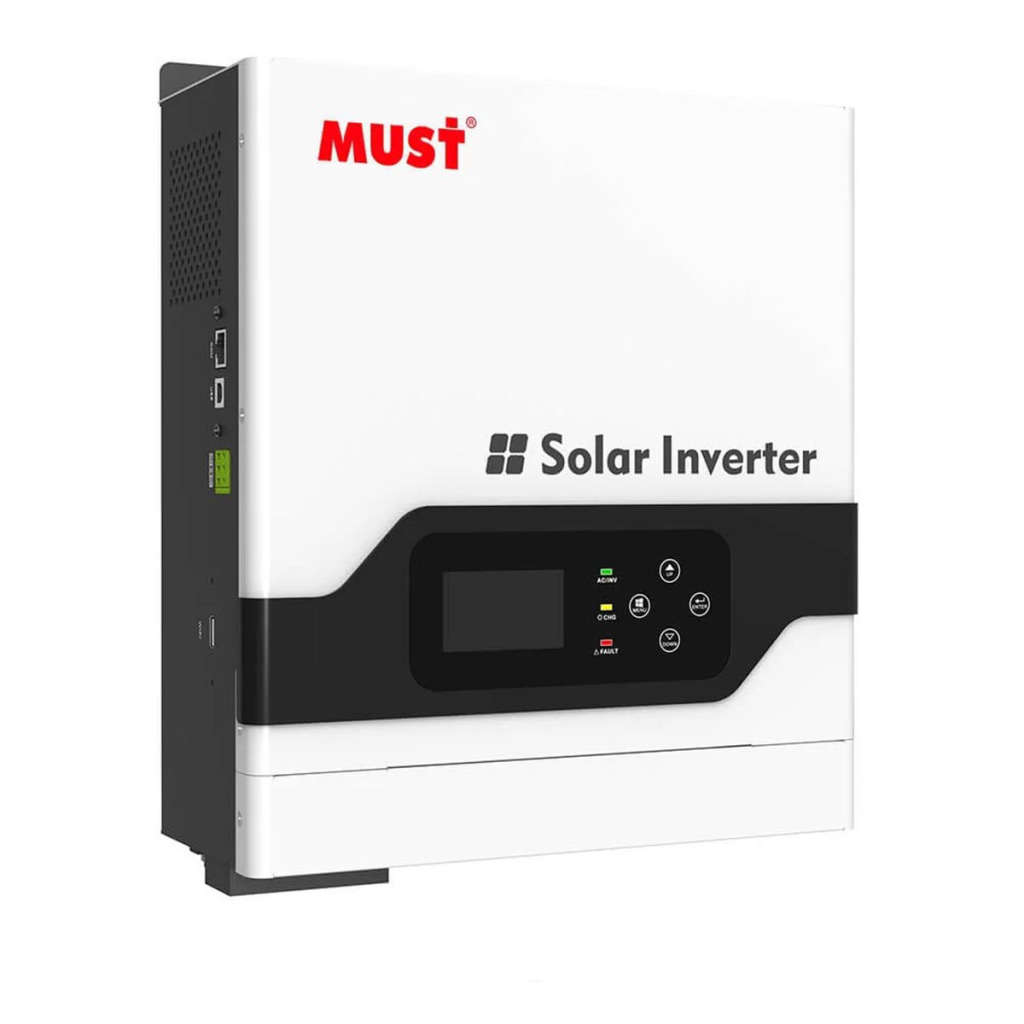

3KW 24V/60A Pure Sine Wave Hybrid Inverter - MUST

Introducing the PV1800 VPM 3KW 24V/60A Pure Sine Wave Hybrid Inverter by MUST,

the pinnacle of versatility and reliability in uninterruptible power solutions.

Engineered to seamlessly integrate the functions of an inverter, MPPT solar charger, and battery charger, this innovative hybrid inverter ensures uninterrupted power support in a compact, portable design.

Key Features:
Pure sine wave output for clean, stable power
Intuitive LCD interface allows for easy configuration of settings such as working modes, charge current, and charge voltage
Built-in MPPT solar charge controller optimizes solar energy utilization
Innovative SUB working mode seamlessly integrates solar, utility, and battery power sources
Comprehensive protection features including overload, short circuit, and deep discharge protection ensure system longevity and safety

Expandable capabilities with support for parallel operation of up to 3 units (Available for 4KW/5KW models)
Cold start function enables operation in challenging conditions

Convenient monitoring options including USB, RS485 monitoring function, and optional WIFI remote monitoring
Compatibility with generators enhances flexibility in power management

Specifications:
Solar Inverter:
Model Name: PV1800
Model Number: PV18-3024 VPM
Operating Temperature: 10°C to 50°C
Protection Class: Class I
Protection Degree: IP20
Inverter Mode:
Rated Power: 3000VA/3000W
DC Input: 24VDC, 130A
AC Output: 230VAC 50/60Hz, 13A
Output Power Factor: 1.0
AC Charge Mode:
AC Input: 230VAC 50/60Hz, 17.7A
DC Output: 27VDC, 30A/20A
Solar Charger Mode:
Rated Current: 60A
System Voltage: 24VDC
MPPT Voltage Range: 30-120VDC
Max. Solar Voltage (VOC): 145VDC
Max. Charge Current: 80A
Experience uninterrupted power with the PV1800 VPM 3KW 24V/60A Pure Sine Wave Hybrid Inverter by MUST, your ultimate solution for reliable and efficient power management.
