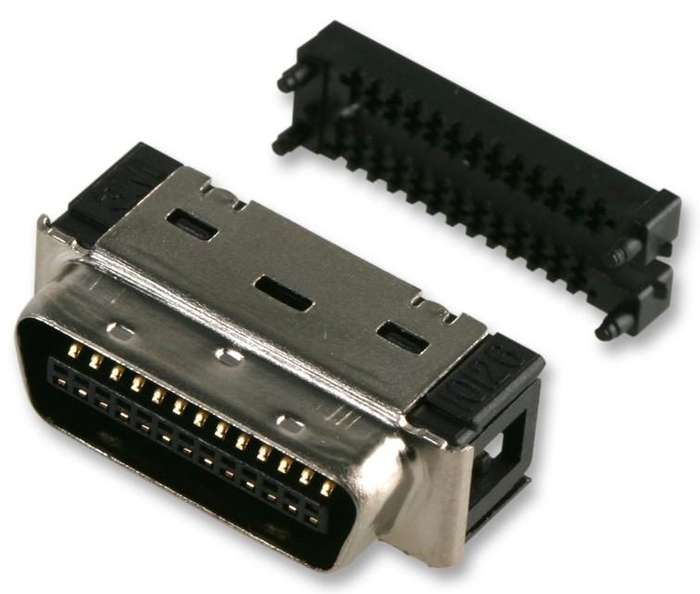

3M (10136-6000EL) D Sub Connector, Plug, 36 Contacts

D Sub Connector, Mini D (Ribbon Connector), Plug, MDR 101, 36 Contacts, IDC /IDTProduct OverviewThe 101 series 0.05-inch Mini D Ribbon (MDR) Connector with IDC wire-mountshielded plug. It has beryllium copper contact with 30-micro-inch minimum goldwiping area and nickel under-plate plating.IDC wire-mount shielded I/O plug connectorMDR-digital LCD interface-20 and 26 positionIEEE 1284 interface-36 positionRibbon type contact-industry preferredReliable repetitive plugging/unpluggingAccepts a wide variety of cable types including round, twisted pair, twinax andflat cableAvailable with a variety of shielded junction shellsPositions 14, 20, 26, 36, 40, 68, 80 and 100UL94V-0 Flammability rating5 x 10?R at 500VDC Insulation resistance1A Current rating-20 to 85°C Temperature rangeApplicationsCommunications & Networking, Computers & Computer Peripherals, Aerospace,Defence, MilitaryProduct InformationD Sub Connector Type: Mini D (Ribbon Connector)No. of Contacts: 36ContactsGender: Plug (View Associated Connectors)Product Range: MDR 101Contact Termination Type: IDC / IDTConnector Mounting: Cable MountContact Material: Beryllium CopperContact Plating: Gold Plated ContactsConnector Body Material: Steel Body
