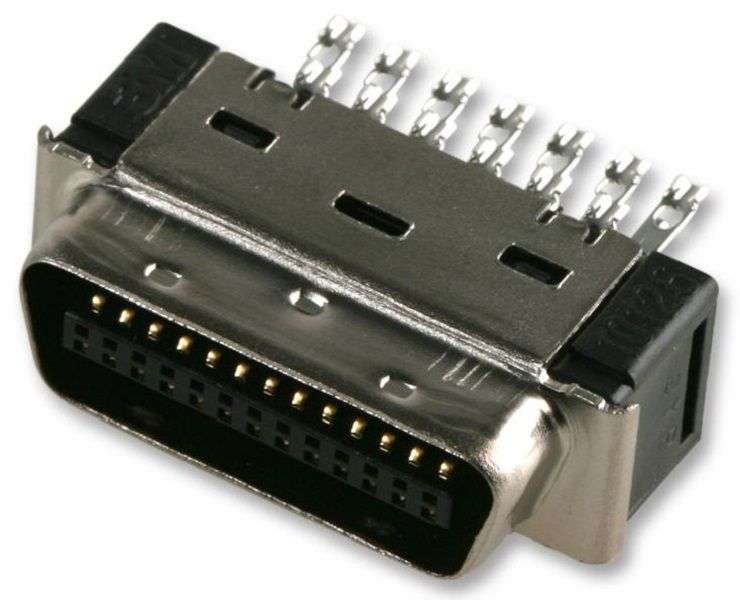

3M (10150-3000PE) D Sub Connector, Plug, 50 Contacts, Solder Cup

D Sub Connector, Mini D (Ribbon Connector), Plug, MDR 101, 50 Contacts, SolderCupProduct OverviewThe 10150-3000PE from 3M is a mini D ribbon (MDR) shielded wire mount plugconnector with 50 positions. This connector accepts a wide variety of discretewire (24AWG to 30AWG) cable construction.Wiper on wiper contact for reliable repetitive pluggingSolder cup termination requires no special toolingUL94 V-0 rated black colour glass reinforced polyester insulationCopper alloy contacts with 80µinch (2µm) nickel under plating20µinch (0.5µm) minimum gold wiping interfaceGold flash over nickel solder tail plating (RIA E1 & C1 apply)Gold flash solder cup and steel shroud with nickel platingCurrent rating of 1AHigh temperature rating from -55°C to 105°CWithstand voltage of 500Vrms for 1 minuteApplicationsIndustrialProduct InformationD Sub Connector Type: Mini D (Ribbon Connector)No. of Contacts: 50ContactsGender: Plug (View Associated Connectors)Product Range: MDR 101Contact Termination Type: Solder CupConnector Mounting: Cable MountContact Material: Copper AlloyContact Plating: Gold Plated ContactsConnector Body Material: Steel Body
