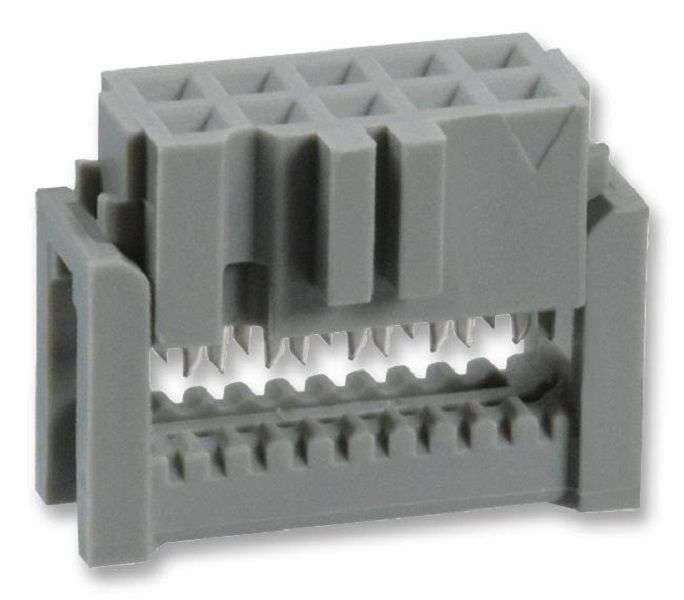

3M (89110-0101) IDC Connector, IDC Receptacle, Female, 2.54 mm, 2 Row

IDC Connector, IDC Receptacle, Female, 2.54 mm, 2 Row, 10 Contacts, Cable MountProduct OverviewThe 89110-0101 is a 10-way 0.100 x 0.100-inch IDC Ribbon Cable Socket for0.050-inch pitch cable, with gold-plated phosphor bronze contacts and IDC/IDTtermination. This 891 series socket is glass filled polyester (PBT) insulated,preassembled, packaging on swords for easy loading of manual and semi-automaticassembly equipment. Double-recessed cover for cable terminating from either sidevirtually eliminating the need for single-recessed cover connectors, militarypolarization with centerbump and no strain relief.Grey colourBumps are designed to prevent premature latch locking during shipmentUL94V-0 Flammability rating1 x 10?R at 500VDC Insulation resistance-55 to 105°C Temperature ratingApplicationsIndustrialProduct InformationPitch Spacing: 2.54mmIDC Connector Type: IDC ReceptacleContact Gender: FemaleNo. of Contacts: 10ContactsNo. of Rows: 2 RowConnector Mounting: Cable MountContact Material: Phosphor BronzeContact Plating: Gold Plated ContactsProduct Range: 891 Series
