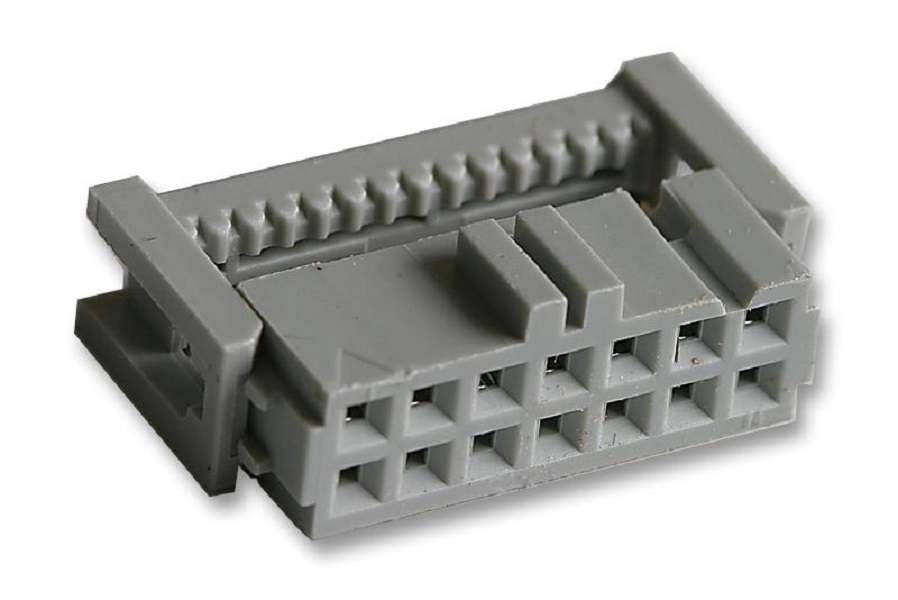

3M (89114-0101HA) IDC Connector, IDC Receptacle, Female, 2.54 mm, 2 Row

IDC Connector, IDC Receptacle, Female, 2.54 mm, 2 Row, 14 Contacts, Cable MountProduct OverviewThe 89114-0101HA is a 14-way 0.100 x 0.100-inch Preassembled Wiremount Socketfor 0.050-inch pitch cable, 0.38µm gold with 0.76µm nickel plating, gold-platedphosphor bronze contacts and IDC/IDT termination. This 891 series socket isglass filled polyester (PBT) insulated, preassembled, terminates faster thantwo-piece sockets. Double-recessed cover for cable terminating from either sidevirtually eliminating the need for single-recessed cover connectors, militarypolarization with centerbump and no strain relief.Grey colourUL94V-0 Flammability rating1A Current rating1 x 10?R at 500VDC Insulation resistance-55 to 105°C Temperature ratingApplicationsIndustrialProduct InformationIDC Connector Type: IDC ReceptacleContact Gender: FemalePitch Spacing: 2.54mmNo. of Rows: 2 RowNo. of Contacts: 14ContactsConnector Mounting: Cable MountContact Material: Phosphor BronzeContact Plating: Gold Plated ContactsProduct Range: 891 Series
